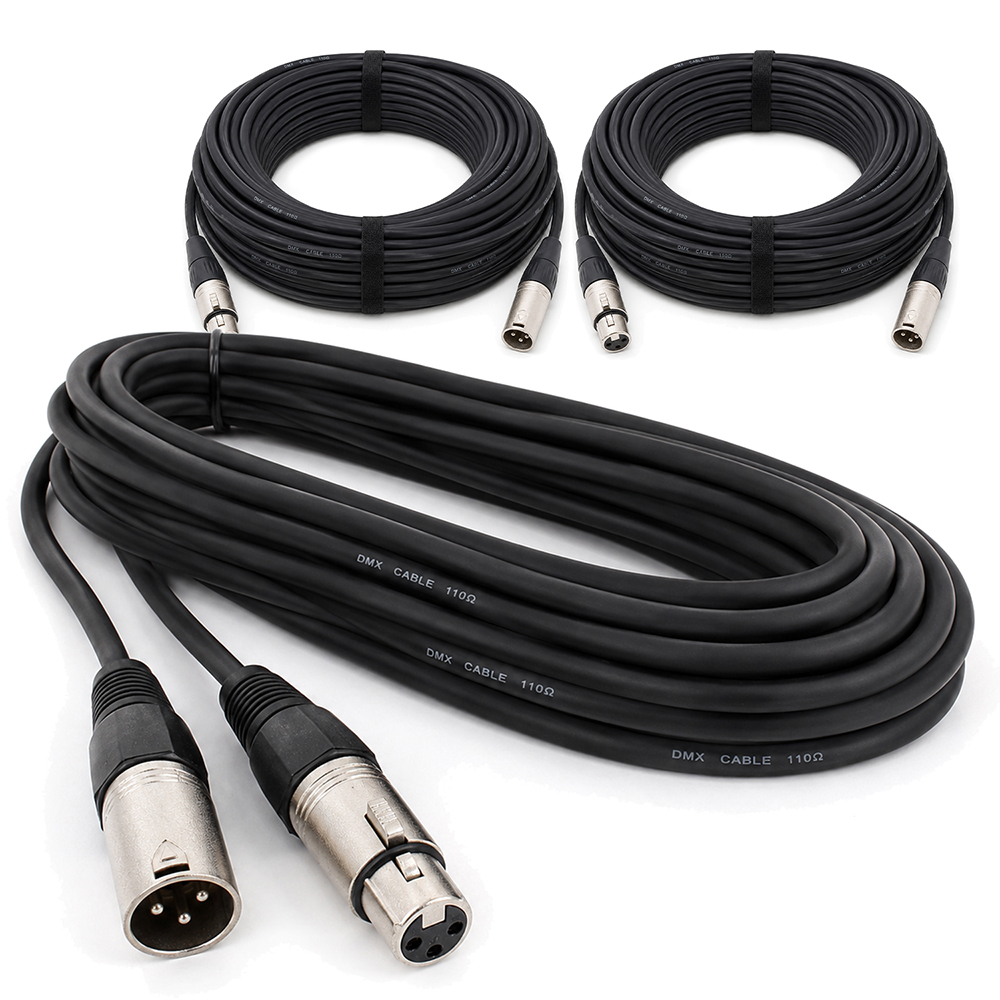

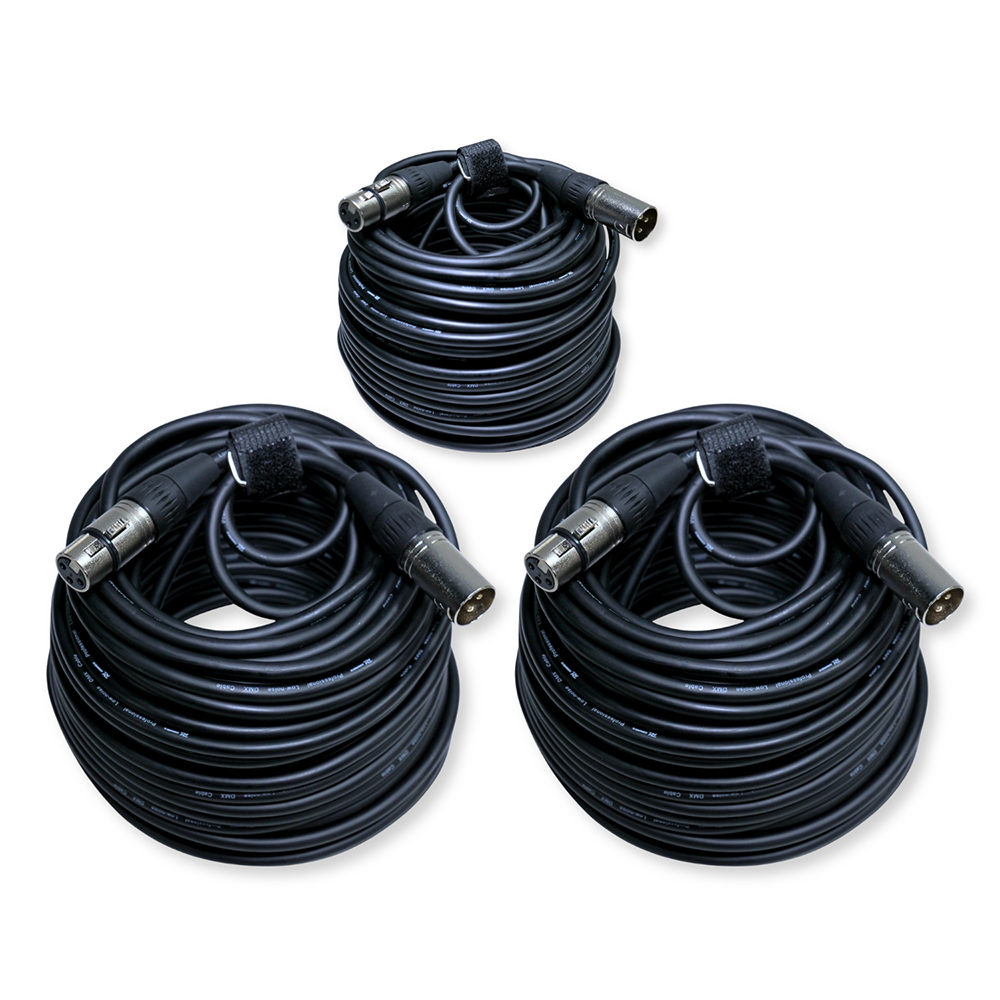

3x PD Connex DMX Cable Set, 25m 3-Pin XLR Leads
Supplied as a set of three, these 25m PD Connex CX100-25 leads are made for DMX lighting-control connections between compatible controllers, fixtures and related DMX hardware.
Technical Specifications
| Cable type | DMX lighting-control cable |
| Characteristic impedance | 120 ohm |
| Cable length | 25m |
| Colour | Black |
| IP Rating | N/A |
| Connector A | 3-pin XLR male |
| Connector B | 3-pin XLR female |
| Conductor size | 28×0.1mm |
| Shielding | 60×0.1mm |
| Outer jacket material | Flexible PVC |
| Cable outer diameter | 6mm |
| Connector material | Metal |
| Cable flexibility | Flexible |
| Suitable for | DMX controllers, lighting fixtures, splitters, interfaces and terminators |
| Use environment | Indoor stage, Venue |
| Warranty | 2 years |
Ideal For
- DMX controller outputs feeding compatible lighting fixtures
- Fixture-to-fixture links in stage lighting systems
- Theatre, nightclub and venue lighting-control cabling
- Event spaces where 25m cable runs are required
- Lighting technicians building spare or touring cable kits
Compatibility & Useful Information
This DMX lighting cable set is intended for equipment using 3-pin XLR DMX connections, including controllers, lighting fixtures, splitters, interfaces and terminators. Each lead is a DMX wire for lighting-control data, not an audio lead with XLR plugs. The DMX XLR male-to-female connector arrangement supports typical DMX linking, while the 3-pin DMX format should be checked against your fixtures before purchase. With three 25m leads included, this is a useful long DMX cable pack for indoor venues and stage work.
