BeamZ LCB144 MKII LED Uplight Strip Bar Light Wall Wash Batten


Key Features

  • LED strip light wall wash batten
  • 144 SMD RGB LEDs with colour mixing
  • Eight sections of controllable LEDs
  • Up to 28 channels of DMX with master/slave linking
  • Auto shows and sound activation modes
In Stock

Order by 5pm for next working day delivery

BeamZ LCB144 MKII LED Uplight Strip Bar Light Wall Wash Batten £78.00

Buy 2+ and save 3% at checkout

Free UK shipping on all orders over £30

  • 60 Day Easy Returns
  • 2 Year Extended Warranty
  • Design, Consulting and Installation Service
Safe & Secure Checkout

Payment Methods

The BeamZ LCB144 MKII is a versatile LED light bar designed for effective wall washing and venue uplighting. This LED wall washer is perfect for creating ambience in various settings, from church stage lighting to wedding venues and marquees, providing a broad and colourful wash of light.

It features 144 SMD RGB LEDs, allowing for extensive colour mixing to create a wide range of hues. This powerful light bar system is ideal for matching the lighting to specific themes or moods at events, with easy daisy-chain operation of up to six LCB144 units, independent of a DMX setup.

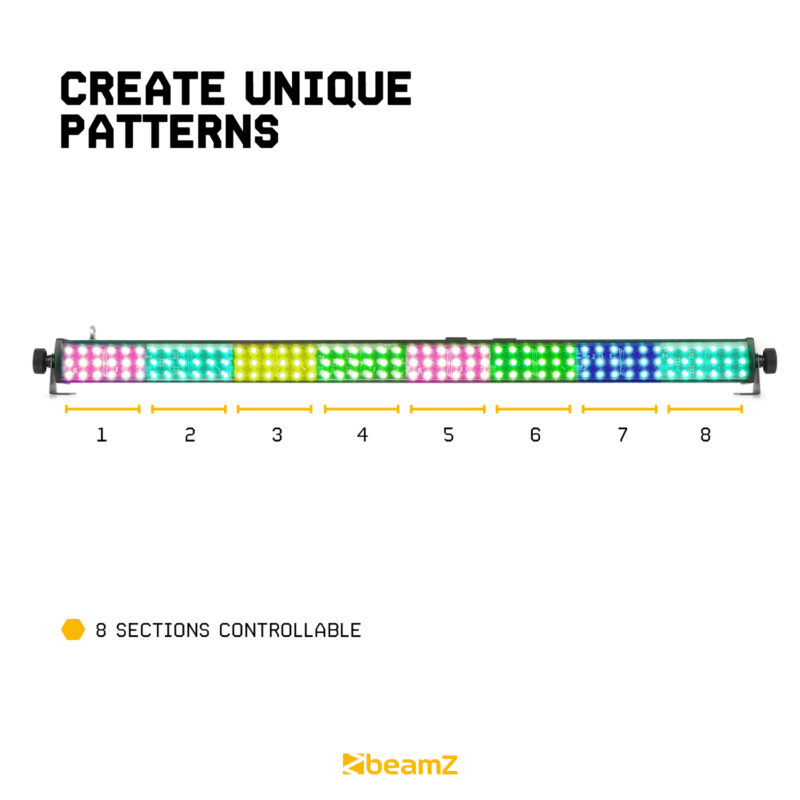

The light bars LEDs are divided into eight controllable sections, enabling unique chase effects and multi-coloured outputs, along with single-colour or strobed output modes. This greatly enhances the visual appeal of these batten lights, making them perfect for dynamic event lighting and stage presentations.

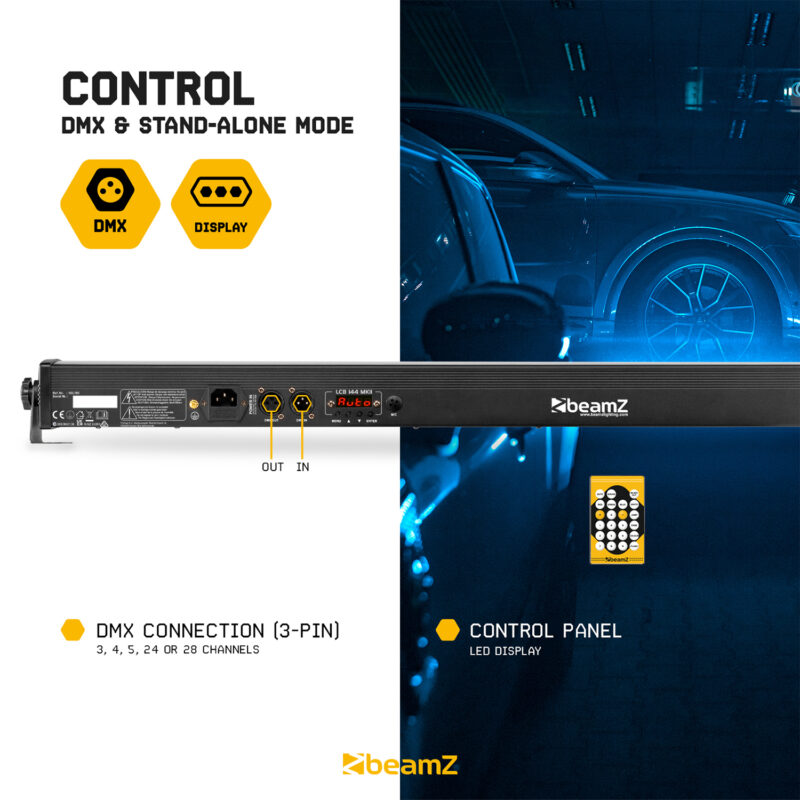

Offering up to 28 DMX channels, the LCB144 MKII provides comprehensive control over its lighting effects, with a variety of colour and pattern settings being easily achieved to suit the event. The master/slave linking option further enhances functionality, allowing for coordinated light shows in larger setups.

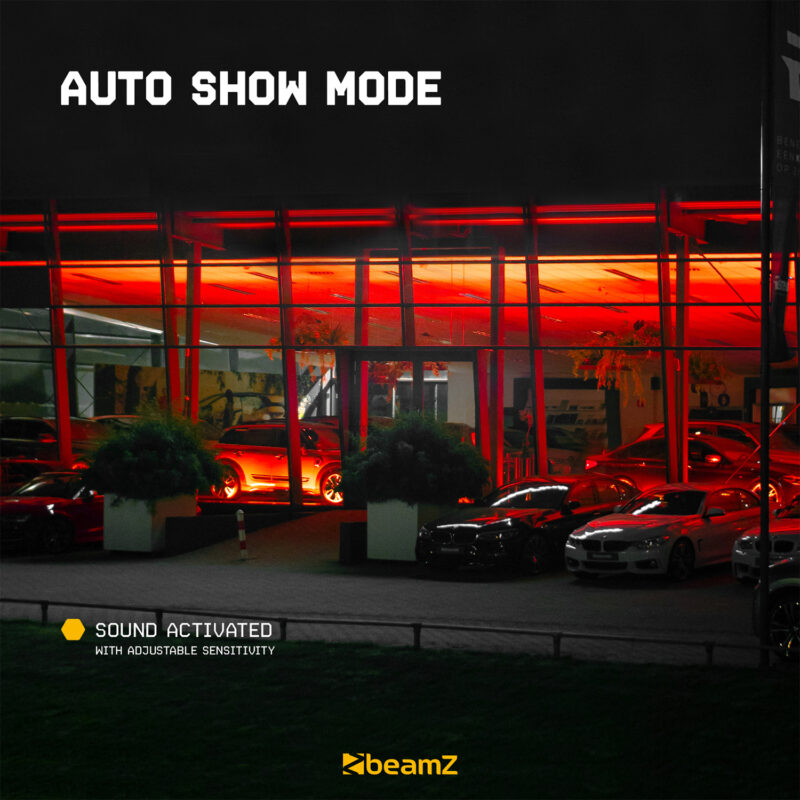

The unit includes auto-show modes for easy setup and sound activation that syncs with the music, perfect for creating an engaging and interactive atmosphere. This functionality makes the LCB144 MKII a great choice for live bands and event organisers looking for reliable and dynamic LED uplighting solutions.

Key Details

  • LED strip light wall wash batten ideal for creating atmospheric lighting in various venues.

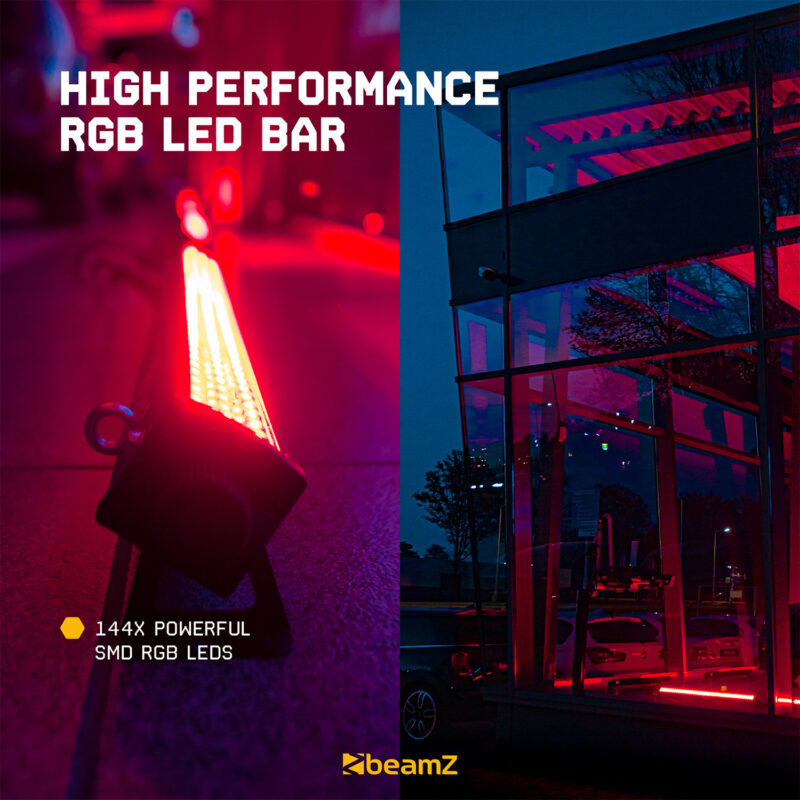

  • 144 SMD RGB LEDs offer extensive colour mixing capabilities for a vibrant display.
  • Eight separately controllable sections allow for unique lighting effects and colour combinations.
  • DMX compatibility provides personalised control with up to 28 DMX channels.
  • Stand-alone capability with automatic functionality includes pre-programmed shows for ease of use.
  • Sound-to-light activation syncs with music for dynamic lighting effects, ideal for parties and events.
  • Adjustable mounting brackets enables versatile placement options for different lighting needs


  • 144x SMD RGB LEDs
  • 3, 4, 7, 24 or 28 DMX channels
  • 8 Sections controllable
  • DMX and Stand-alone mode
  • Master/slave function
  • Sound activated with adjustable sensitivity
  • Auto mode with adjustable speed
  • IR remote control
  • DMX in/output via 3-pin XLR
  • IEC-connector input/output
  • Control panel with LED display


  • Supplied features: Master/Slave mode
  • Light source: 3-in-1 LED
  • LED colours: Red, Green, Blue
  • Quantity of LEDs: 144
  • Flash rate per second: 1 - 24Hz
  • DMX channels: 3, 4, 7, 24, 28
  • DMX connector: 3-pin XLR
  • Modes: Automatic programs, DMX, Manual, Master/Slave
  • Daisy chain: Yes (max. 6 bars)
  • Cooling: Convection
  • Display: LED
  • Power plug: IEC
  • Power supply: 100-240VAC 50/60Hz
  • Dimensions (L x W x H): 1080 x 100 x 100mm
  • Weight: 1.4500
  • Accessories: Mounting bracket, Power cable, Remote control

Additional information





Power Rating

0W – 49W

Light Colours


Battery Powered


Wireless DMX


Bulb Type




IP Rating


Flight Case
