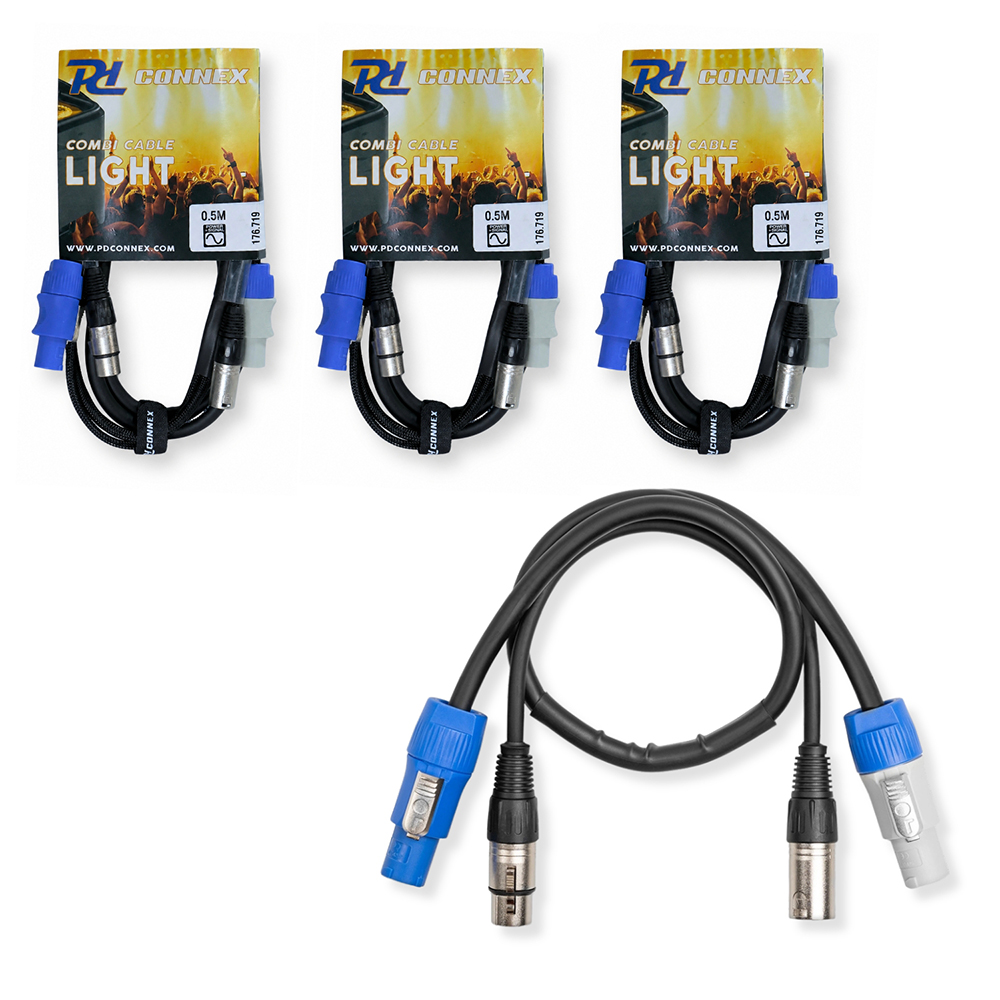

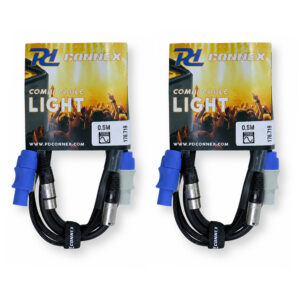

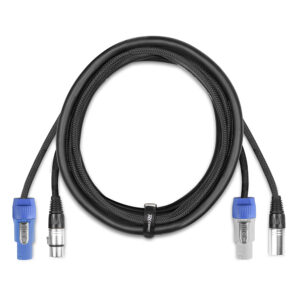

4x PD Connex CX06-0.50 Combi DMX Cable Set
This set includes four 0.5m lighting combi cables, each combining Powerconnector A/B power linking with 3-pin XLR DMX signal connection for compatible fixtures.
Technical Specifications
| Cable type | DMX lighting-control combi cable |
| Characteristic impedance | 120 ohm (DMX cable) |
| Cable length | 0.5m |
| Colour | Black |
| IP Rating | N/A |
| Connector A | Powerconnector A and 3-pin XLR female |
| Connector B | Powerconnector B and 3-pin XLR male |
| Conductor size | 3x 1.5mm² power cable; 8×0.2mm signal conductor |
| Shielding | 64×0.08mm (DMX cable) |
| Outer jacket material | PVC |
| Cable outer diameter | 10.8mm |
| Connector material | Metal/Plastic |
| Cable flexibility | Flexible |
| Suitable for | DMX controllers, lighting fixtures, moving heads, LED effects and wall washers |
| Use environment | Indoor stage, Touring, Venue |
| Warranty | 2 years |
Ideal For
- Short power and DMX links between compatible fixtures
- Moving head setups used by mobile DJs and hire firms
- LED effects and PAR lighting in event production rigs
- Wall washer cabling in venues, theatres and nightclubs
- Temporary or fixed indoor lighting installations
Compatibility & Useful Information
This is a lighting-control combi lead, not a general audio XLR cable. Each 3-pin DMX cable carries DMX data through the XLR connectors and power through the Powerconnector ends, making it a practical DMX power cable for compatible daisy-chain layouts. Use this DMX and power cable where 0.5m spacing suits your fixture arrangement. If you are searching for a Powercon DMX cable or DMX cable for lighting with Powerconnector A/B and 3-pin XLR connections, check your fixture sockets match the genders shown above.
