4x 5m DMX Cable Combi Set for Lighting Fixtures

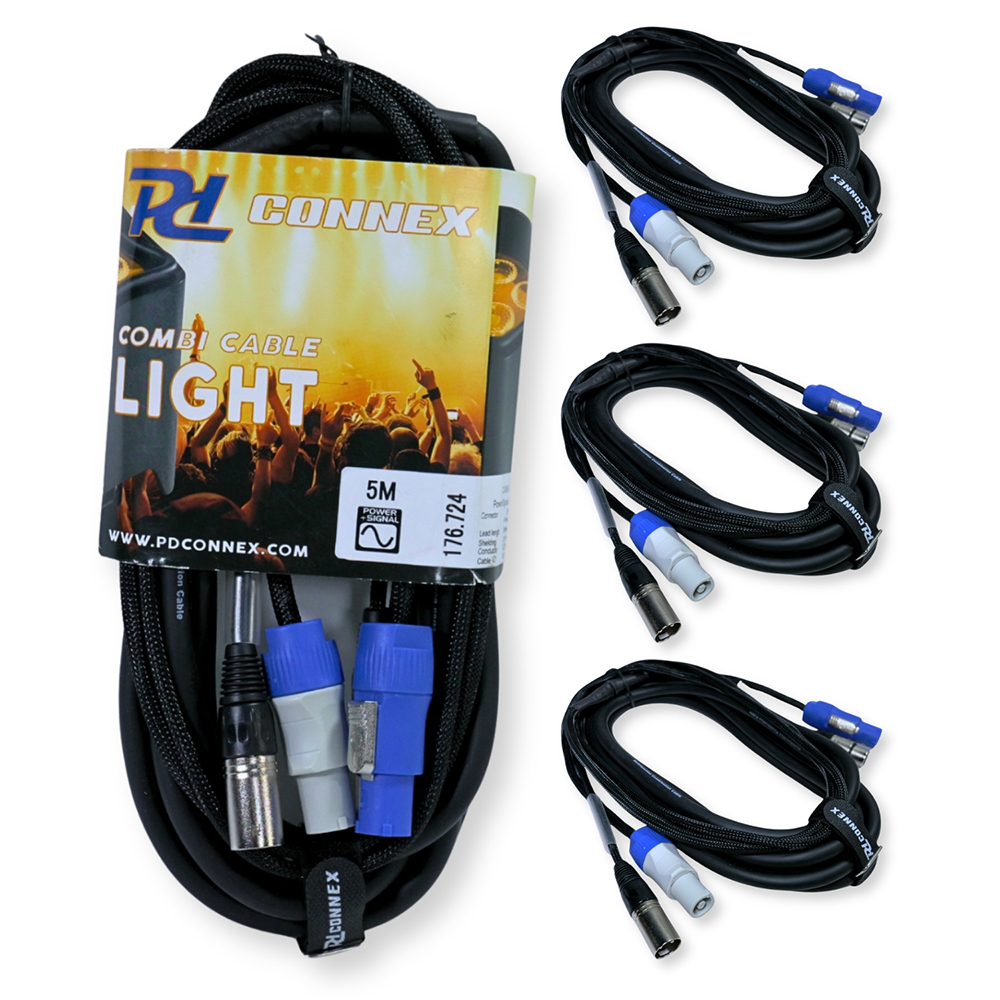

Supplied as a set of four identical 5m PD Connex CX06-5 combi cables, this package is made for carrying lighting power and DMX data between compatible fixtures using Powerconnector A/B and 3-pin XLR connectors.
Technical Specifications
| Cable type | DMX lighting-control combi cable |
| Characteristic impedance | 120 ohm (DMX cable) |
| Cable length | 5m |
| Colour | Black |
| IP Rating | N/A |
| Connector A | Powerconnector + 3-pin XLR male |
| Connector B | Powerconnector + 3-pin XLR female |
| Conductor size | 3x 1.5mm² power cable; 8×0.2mm signal conductors (DMX cable) |
| Shielding | Braided, 64×0.08mm (DMX cable) |
| Outer jacket material | PVC/PTFE braid |
| Cable outer diameter | 10.8mm |
| Connector material | Metal, plastic |
| Cable flexibility | Flexible |
| Suitable for | DMX controllers, lighting fixtures, moving heads, LED effects, wall washers and DMX interfaces |
| Use environment | Indoor stage, Venue |
| Warranty | 2 years |
Ideal For
- Daisy-chaining compatible LED PAR cans and lighting effects
- Moving head control and power links in indoor stage rigs
- Venue lighting systems where neat cable paths are required
- Event production setups needing repeated 5m fixture links
- Permanent or temporary wall washer and DMX interface installations
Compatibility & Useful Information
This DMX and power cable is intended for lighting fixtures fitted with Powerconnector A/B and 3-pin XLR DMX sockets. As a DMX power cable, it helps keep compatible lighting runs organised by carrying both services together. Customers searching for a Powercon DMX cable should confirm the equipment connector type, while those needing a DMX cable for lighting should note the 120 ohm DMX specification and 3-pin format.
