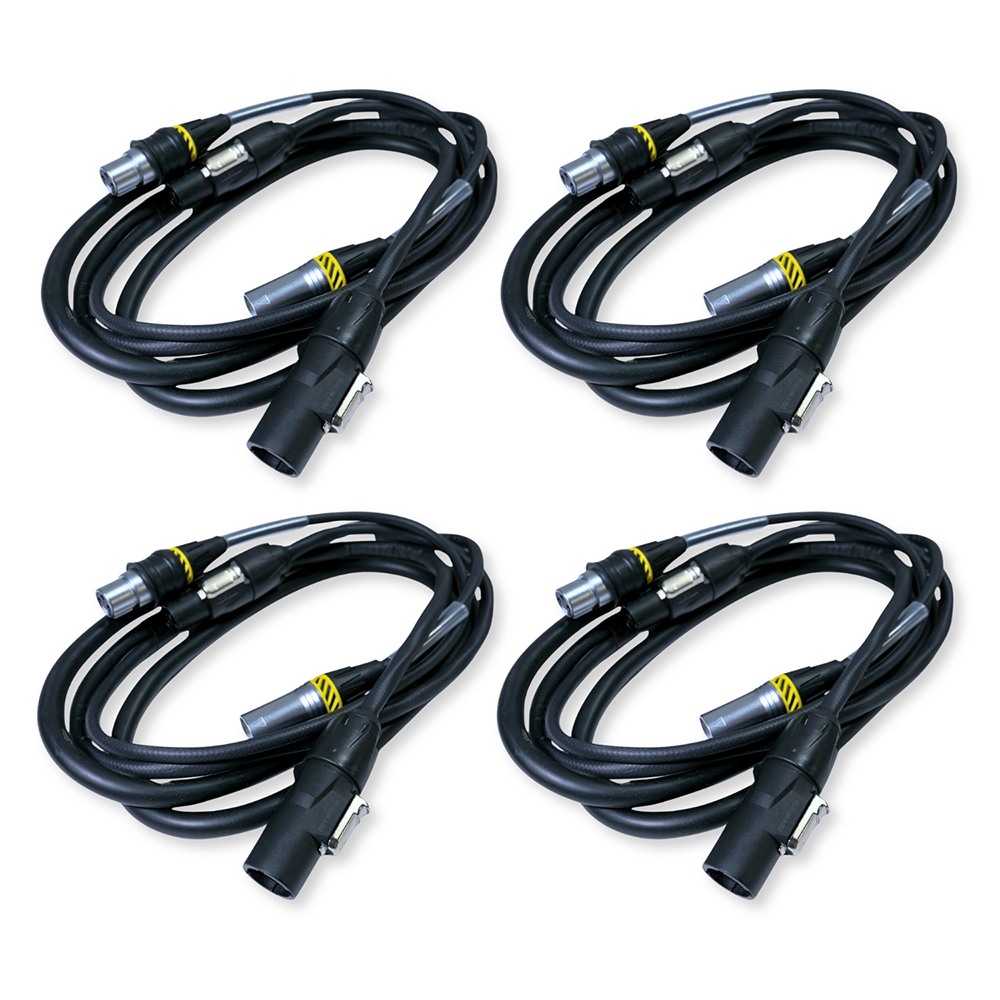

4x PD Connex CX07-2 2m DMX Cable and Powerconnector TR Combi Leads
The PD Connex CX07-2 pack supplies four matching 2m lighting combi cables, each combining DMX data and power connections for cleaner fixture linking with 3-pin XLR and Powerconnector TR connectors.
Technical Specifications
| Cable type | DMX lighting-control combi cable |
| Characteristic impedance | 120 ohm (DMX cable) |
| Cable length | 2m |
| Colour | Black |
| IP Rating | IP65 |
| Connector A | 3-Pin XLR female/powerconnector TR A |
| Connector B | 3-Pin XLR male/Powerconnector TR B |
| Conductor size | 8×0.2mm (DMX cable) |
| Shielding | 64×0.08mm braided shielding (DMX cable) |
| Outer jacket material | PVC/PTFE braid |
| Cable outer diameter | 10.8mm |
| Connector material | N/A |
| Cable flexibility | Flexible |
| Suitable for | DMX controllers, lighting fixtures, splitters and interfaces |
| Use environment | Outdoor, Stage, Touring |
| Warranty | 2 years |
Ideal For
- Fixture-to-fixture cabling for compatible LED lighting effects
- Short cable links between moving heads on truss or stage positions
- Wall washer installations using 3-pin DMX and TR power connections
- Event production, venue and theatre lighting control systems
- Outdoor, stage and touring use where IP65-rated connectors are needed
Compatibility and Useful Information
Each cable in this 4-pack has 3-Pin XLR female/powerconnector TR A at one end and 3-Pin XLR male/Powerconnector TR B at the other. This 3 pin DMX cable format is for DMX lighting control applications with compatible power linking, making it useful as a DMX power cable when both connector types are required. For buyers comparing a DMX and power cable, Powercon DMX cable or DMX cable for lighting, the key points to check are 3-pin DMX, Powerconnector TR A/B compatibility and the 2m length per cable.
