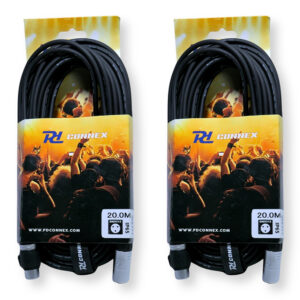

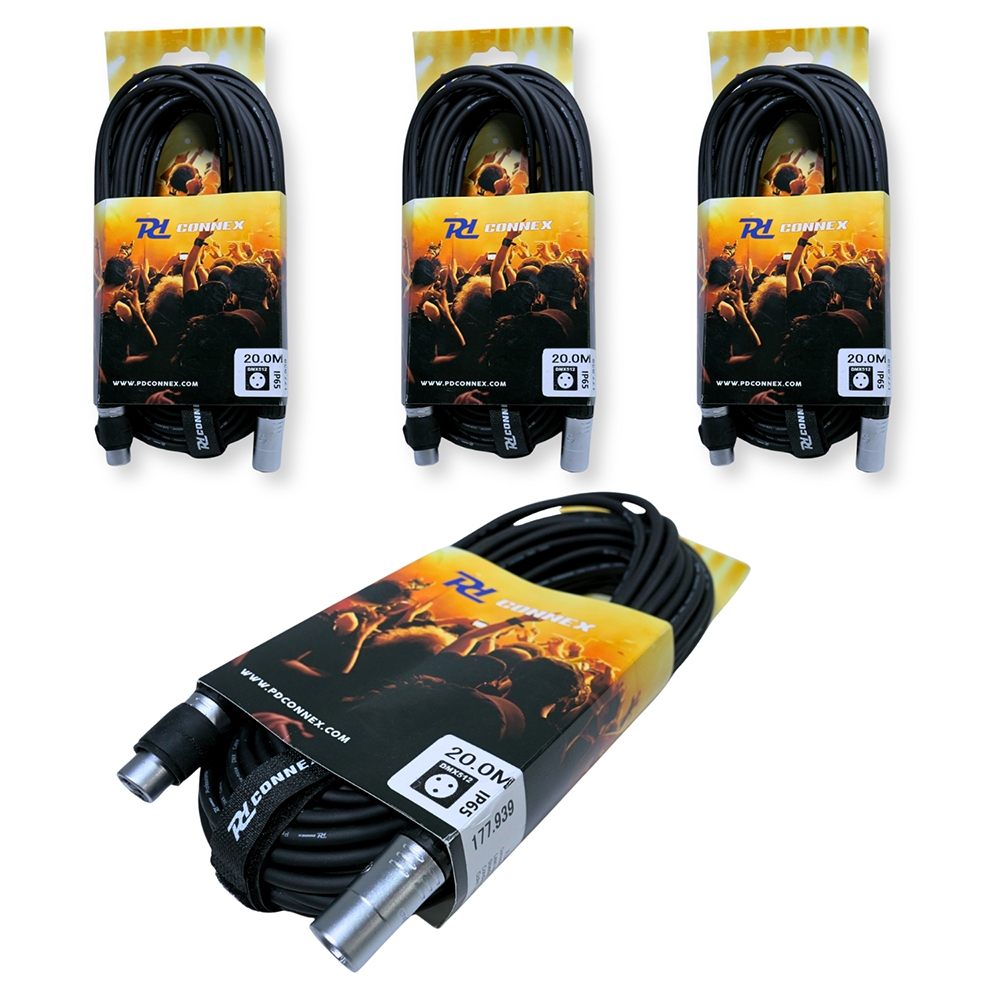

4x PD Connex 20m DMX Cable Set with IP65 XLR Connectors
Supplied as a pack of four, these 20m PD Connex CX104-20 cables are made for 3-pin DMX lighting-control links between compatible controllers, fixtures, interfaces, splitters and terminators.
Technical Specifications
| Cable type | DMX lighting-control cable |
| Characteristic impedance | 120ohm |
| Cable length | 20m |
| Colour | Black |
| IP Rating | IP65 |
| Connector A | 3-pin XLR male |
| Connector B | 3-pin XLR female |
| Conductor size | 28×0.1mm |
| Shielding | 60×0.1mm |
| Outer jacket material | PVC |
| Cable outer diameter | 6mm |
| Connector material | Metal |
| Cable flexibility | Flexible |
| Suitable for | DMX controllers, lighting fixtures, splitters, interfaces and terminators |
| Use environment | Outdoor |
| Warranty | 2 years |
Ideal For
- Outdoor stages needing longer DMX controller-to-fixture connections.
- Permanent lighting installations using 3-pin DMX control equipment.
- Event production setups with several separate DMX cable runs.
- Theatre, venue and AV installation work requiring 20m cable lengths.
- Connecting compatible splitters, interfaces and terminators in DMX systems.
Compatibility & Useful Information
Use this DMX lighting cable set with equipment fitted with compatible 3-pin XLR DMX connections. Each cable is a 20m male-to-female lead, making it suitable when fixture positions are spread across a stage, venue or outdoor site. As a long DMX cable with a 120 ohm impedance, it is intended for DMX lighting-control signal transmission rather than microphone or general audio use. The IP65 rating on the connectors makes each lead an outdoor DMX cable for applications that need additional protection against dust and water. For buyers specifying an outdoor-rated DMX cable, the XLR IP65 3-pin connector format should be checked against the sockets on the equipment before ordering.
