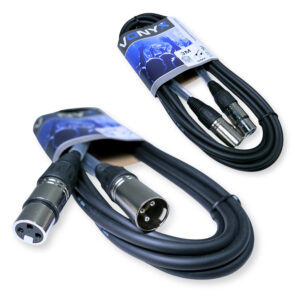

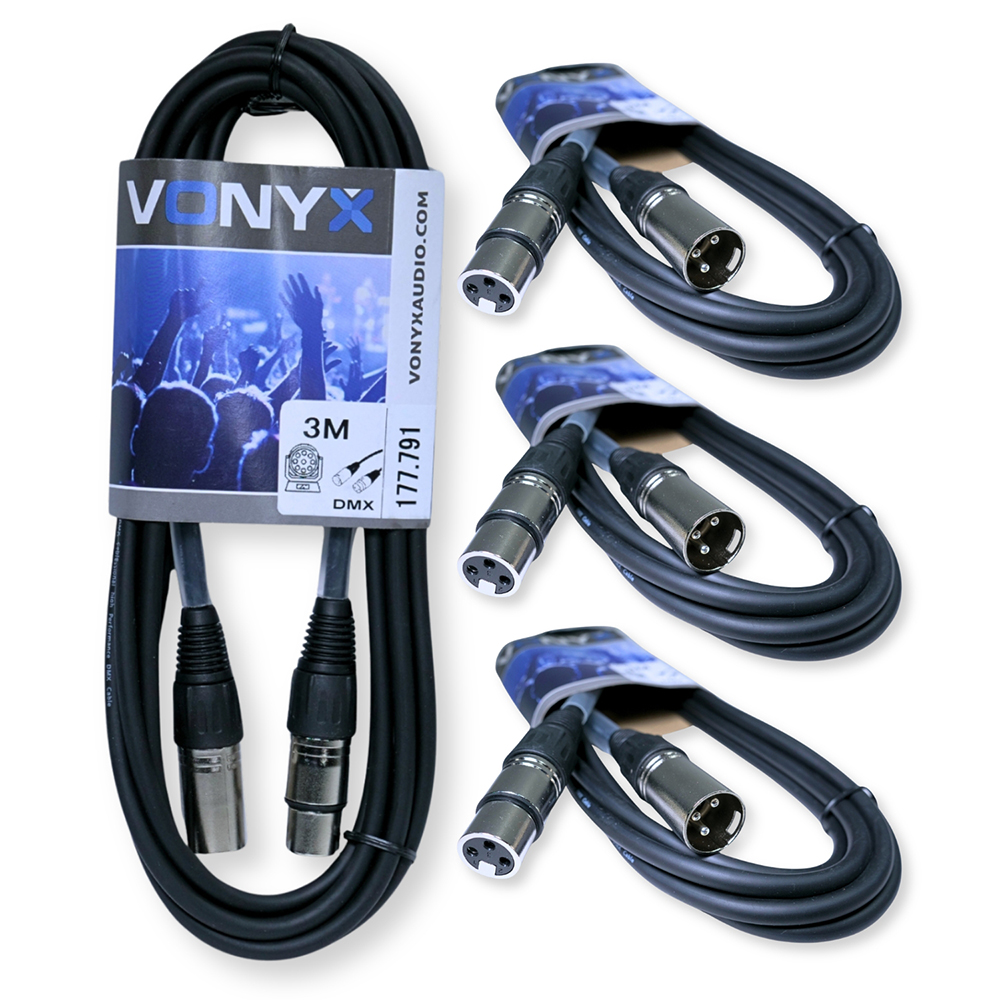

4x Vonyx CX350-3 3m Digital Audio Cable and DMX XLR Lead Pack
A set of four 3m 110 Ohm XLR signal cables for AES/EBU digital audio links and DMX lighting-control runs, with 3-pin XLR male to female connectors on every cable.
Technical Specifications
| Cable type | DMX lighting-control cable |
| Characteristic impedance | 110 ohm |
| Cable length | 3m |
| Colour | Black |
| IP Rating | N/A |
| Connector A | 3-pin XLR male |
| Connector B | 3-pin XLR female |
| Conductor size | 18×0.12mm |
| Shielding | 64×0.12mm |
| Outer jacket material | PVC |
| Cable outer diameter | 6mm |
| Connector material | Metal |
| Cable flexibility | Flexible |
| Suitable for | DMX controllers, lighting fixtures, splitters, interfaces and terminators |
| Use environment | Indoor stage, Venue |
| Warranty | 2 years |
Ideal For
- Short DMX runs between controllers and nearby fixtures
- Stage lighting rigs in indoor performance spaces
- Theatre, venue and event lighting-control systems
- AES/EBU links between compatible digital audio devices
- Rental and installation stock requiring four 3m cables
Compatibility and Useful Information
This bundle gives you four matching 3m cables, each wired as a 3-pin XLR male to 3-pin XLR female 110 Ohm signal lead. Use it as a DMX cable for DMX controllers, lighting fixtures, splitters, interfaces and terminators with 3-pin sockets. It can also be used as an AES cable, AES EBU cable or digital output cable for AES/EBU equipment that uses the same 3-pin XLR format. Choose this 3 pin DMX cable pack when several short indoor stage or venue connections are needed from the same cable type.
