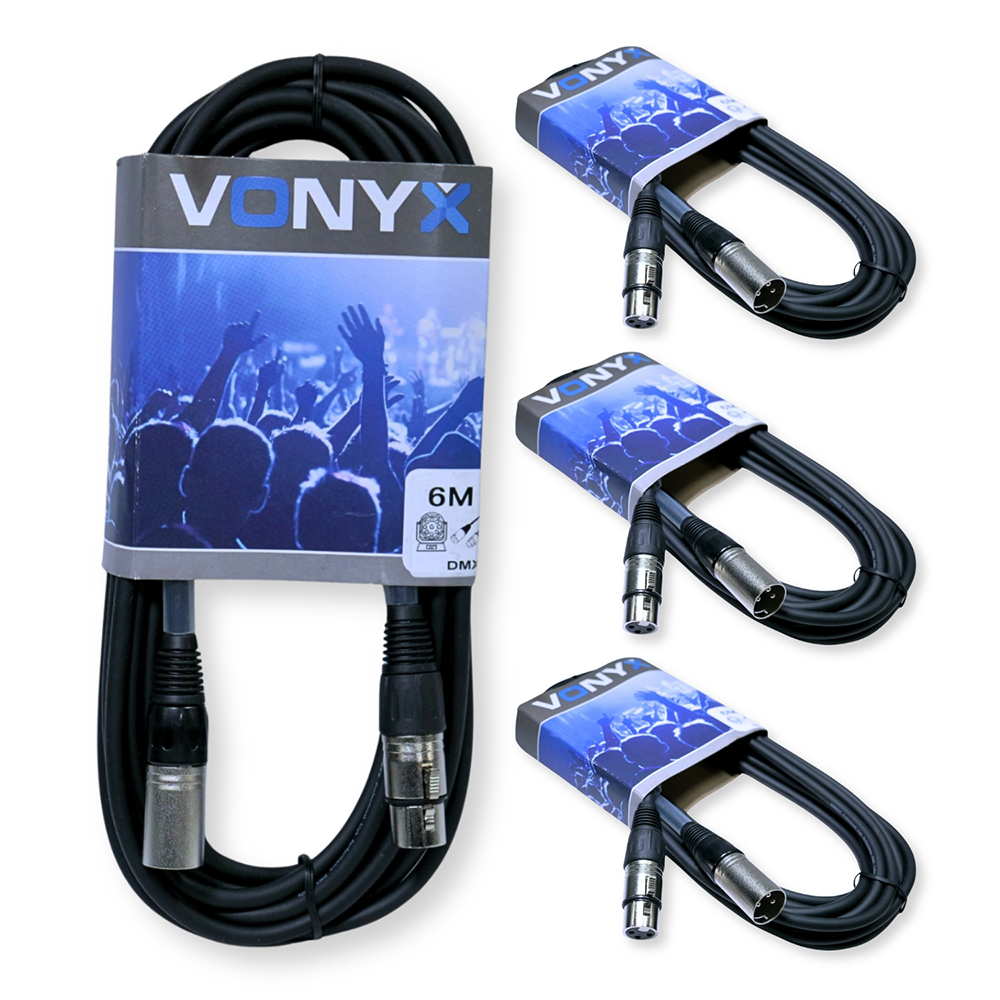

4x Vonyx CX350-6 6m Digital Audio Cable and DMX XLR Leads
Supplied as a set of four, these 6m 110 ohm XLR cables are made for AES/EBU digital audio links and DMX lighting control. Each lead uses 3-pin XLR male to 3-pin XLR female connectors.
Technical Specifications
| Cable type | DMX lighting-control cable |
| Characteristic impedance | 110 ohm |
| Cable length | 6m |
| Colour | Black |
| IP Rating | N/A |
| Connector A | 3-pin XLR male |
| Connector B | 3-pin XLR female |
| Conductor size | 18×0.12mm |
| Shielding | 64×0.12mm |
| Outer jacket material | PVC |
| Cable outer diameter | 6mm |
| Connector material | Metal |
| Cable flexibility | Flexible |
| Suitable for | DMX controllers, lighting fixtures, splitters, interfaces and terminators |
| Use environment | Indoor stage, Venue |
| Warranty | 2 years |
Ideal For
- DMX lighting control between desks, fixtures and interfaces
- Fixture-to-fixture links in indoor stage lighting rigs
- AES/EBU digital connections in AV and broadcast-style systems
- Venue installations requiring several matching 6m cable runs
- Event production stock for 3-pin XLR DMX-compatible equipment
Compatibility and Useful Information
These cables are intended for equipment with 3-pin XLR DMX or AES/EBU digital connections, not 5-pin DMX sockets unless a suitable separate adaptor is used. The pack includes four cables, each 6m long, so it is useful when wiring several nearby fixtures or digital devices with the same lead type. Use each cable as an AES cable, AES EBU cable, digital output cable, DMX cable or 3 pin DMX cable only with equipment that supports the relevant signal format.
