BeamZ DuoFlip Dual Sided Moving Light Bar – Strobe Blinder & LED Beams

BeamZ DuoFlip LED Moving Head Light Bar for Stage Use

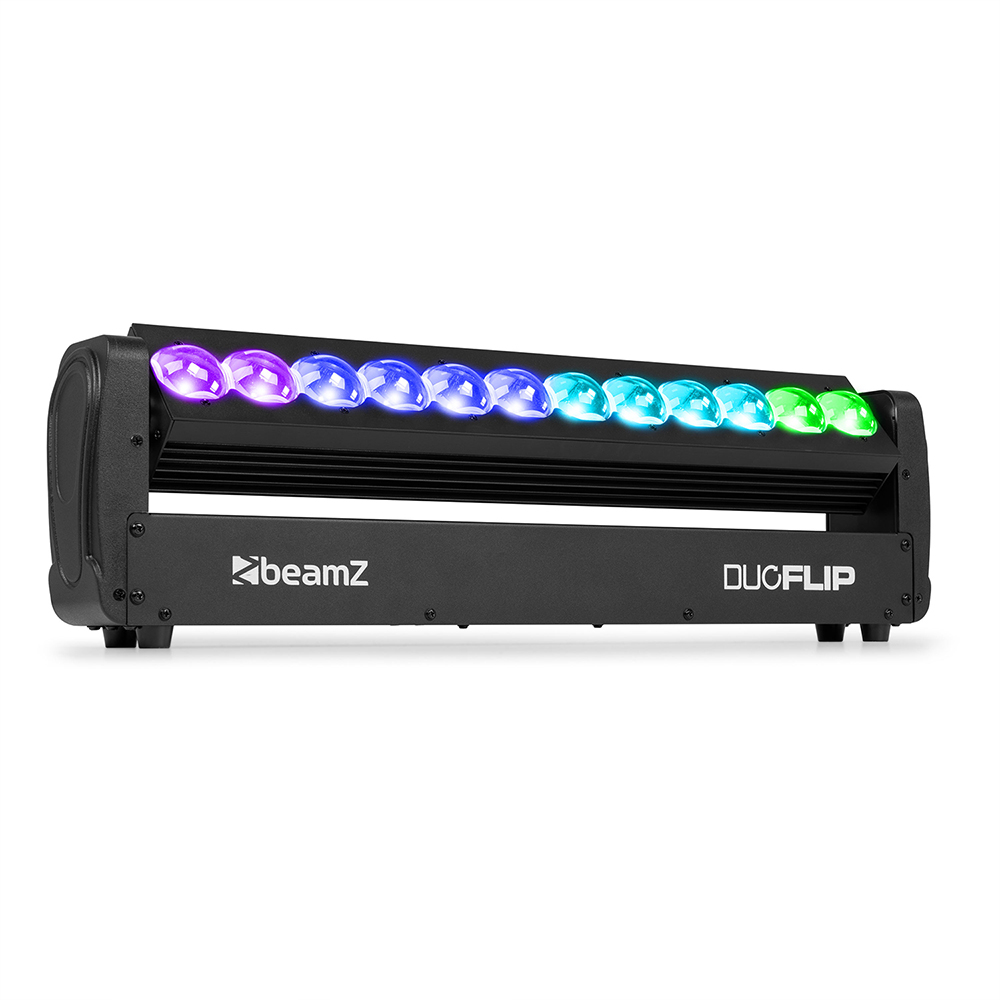

The BeamZ DuoFlip is a compact two-sided tilt bar designed for busy lighting rigs where every fixture needs to earn its place. One side behaves like a narrow RGBW beam bar. The other side acts as an RGB pixel strobe and white blinder panel. Rotate the body through 360 degrees and both faces become part of the same moving effect.

This makes it an intelligent LED light bar for DJs, venues, function bands and lighting hire companies that want movement, colour and strobe work from one tidy unit.

Key Features and Benefits

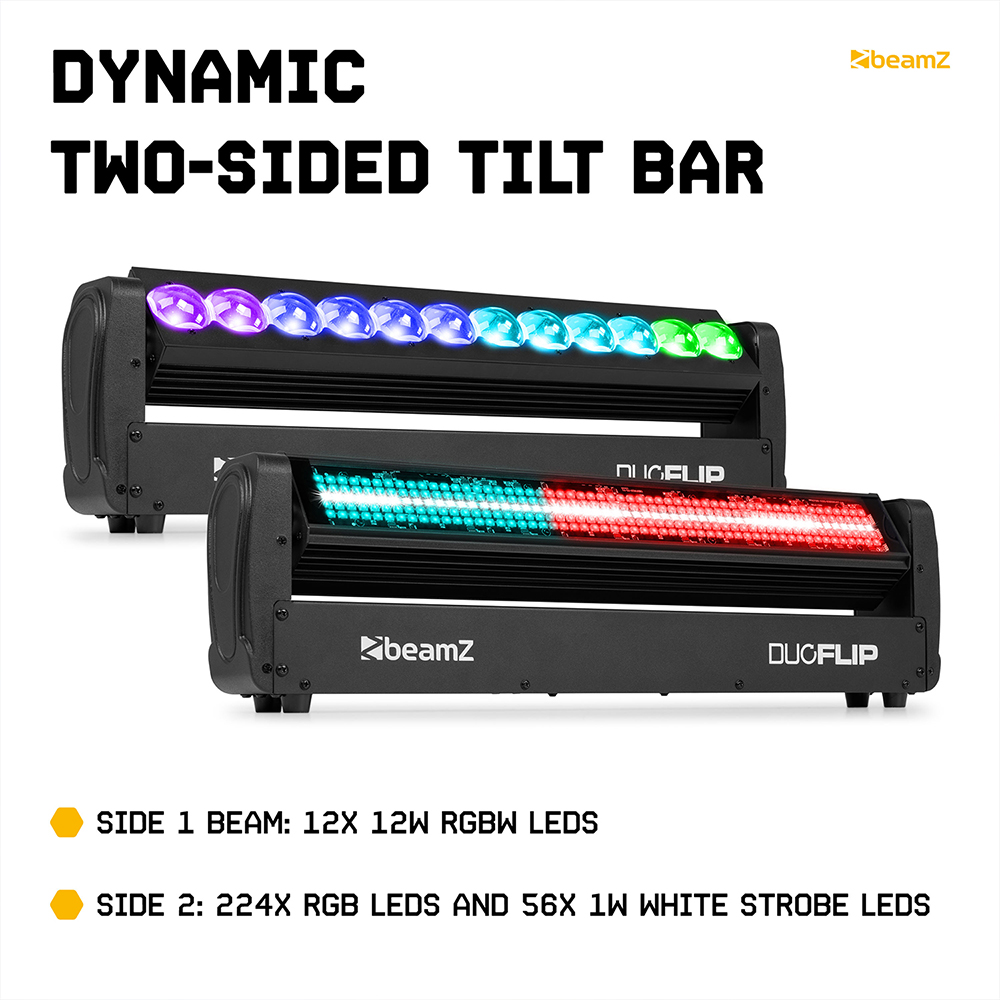

Beam Bar on One Side, Strobe Panel on the Other

The front face uses 12 x 12W RGBW LEDs for tight beam output, ideal with haze for aerial lines and stage sweeps. The rear face contains 224 RGB LEDs plus 56 white 1W strobe LEDs, giving you a separate flash and pixel surface in the same fixture.

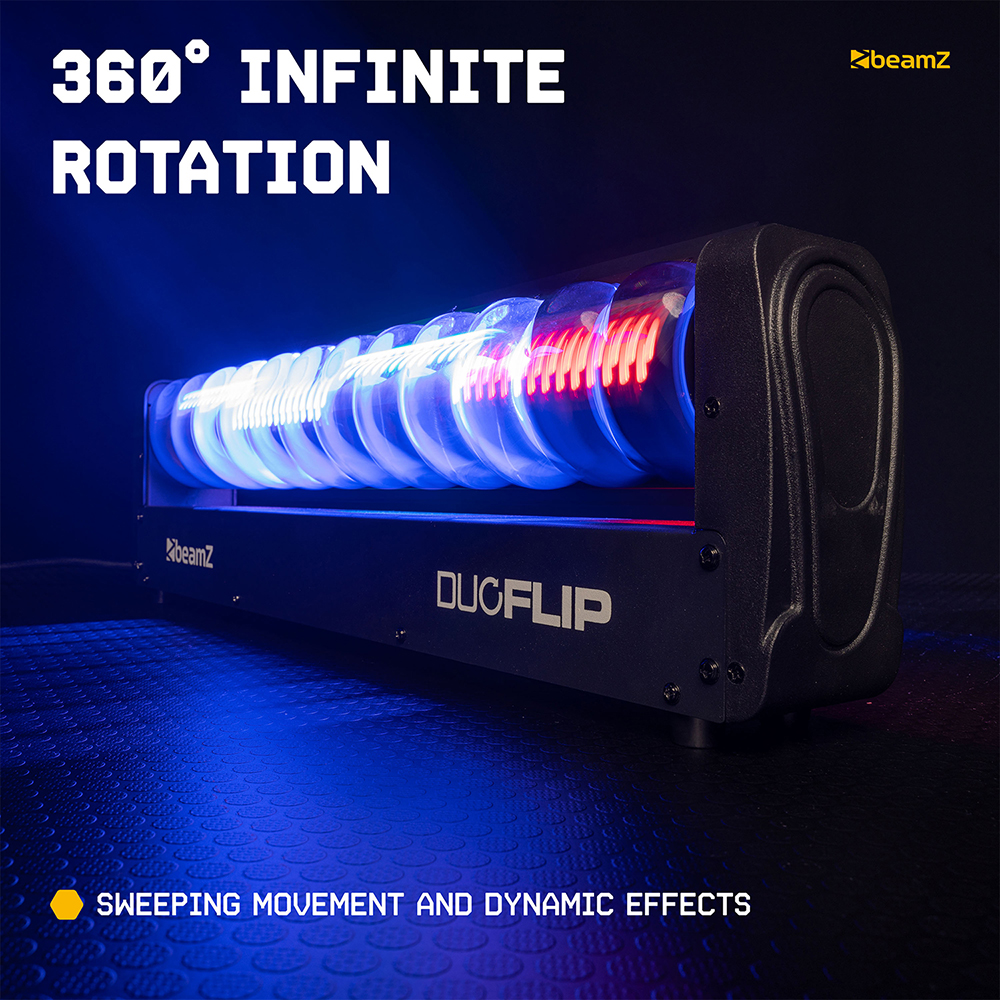

Infinite Tilt for More Creative Movement

The 360 degree motorised tilt allows continuous rotation, so the fixture can roll between beam looks and strobe hits during a cue. This is where it differs from a standard moving head light bar, as the second face becomes part of the movement, not just a fixed extra effect.

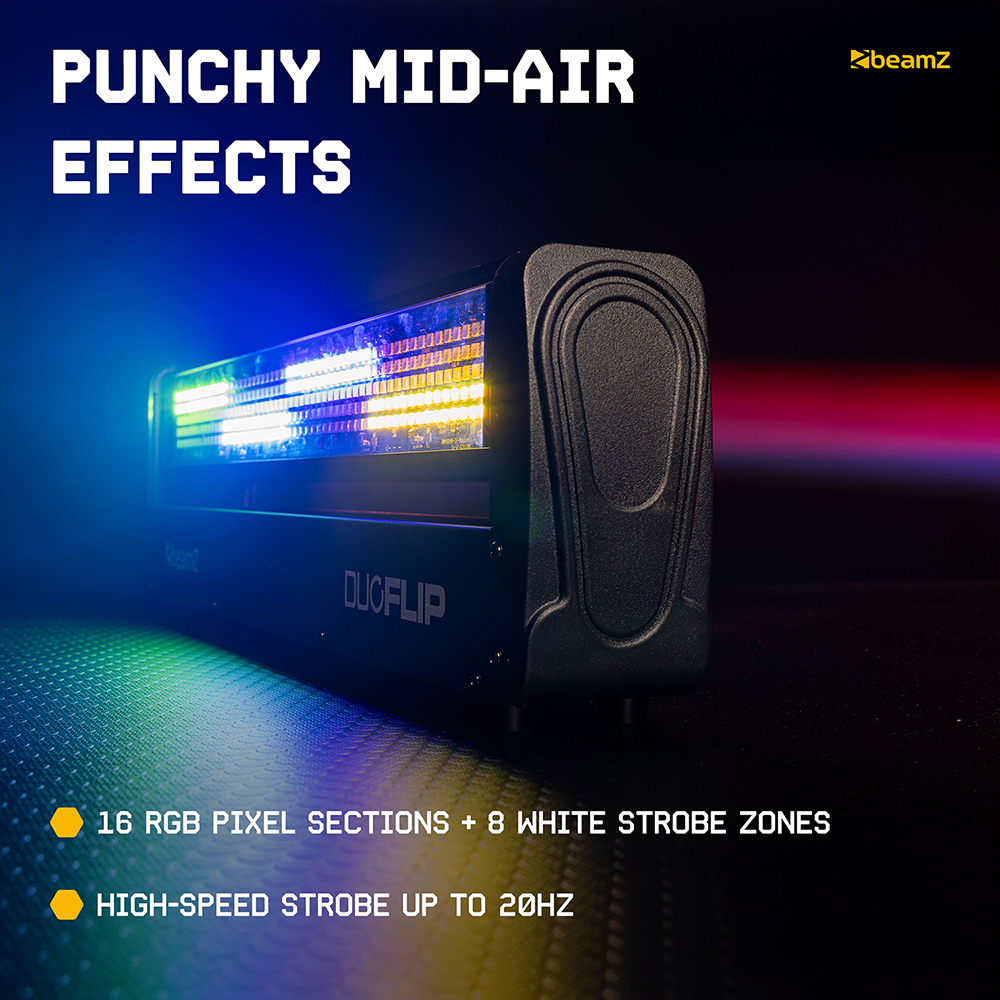

Pixel Sections and Strobe Zones

The RGB side is split into 16 pixel sections, while the white strobe LEDs are grouped into 8 zones. For programmers, that means chases can run across the bar, flashes can be staggered, and rhythmic moments can be matched more closely to the track or live performance.

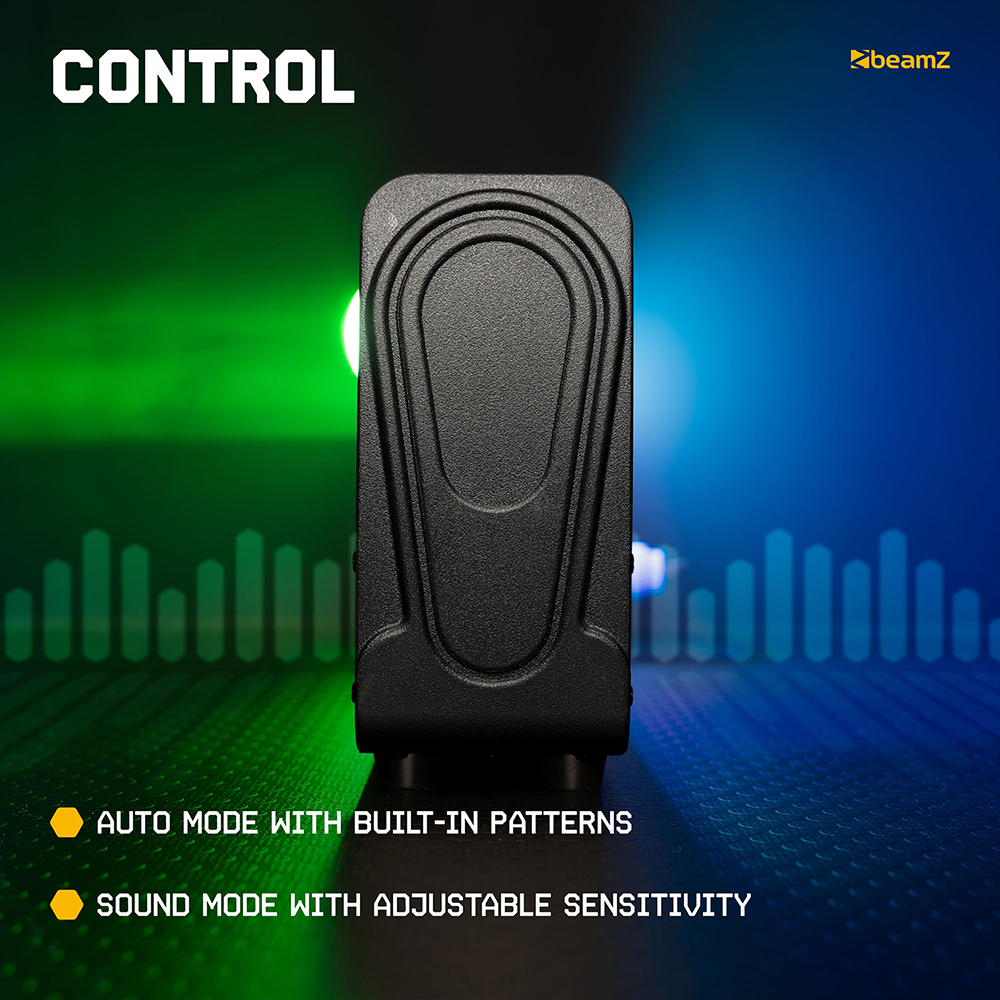

Control for Simple and Detailed Shows

The DuoFlip supports DMX512, RDM, auto programmes, master/slave operation and sound-to-light mode. Beginners can get movement and colour running without deep programming, while experienced operators can use the 84-channel mode for precise pixel-level work.

Applications

In clubs and DJ booths, the DuoFlip adds motion, strobe bursts and colour movement from a single rigging point. On live stages, it can be placed on rear truss, side stands or subwoofer poles, angled in towards performers and the audience.

For band lighting, it keeps the setup compact while still giving the show visible movement. It’s also a strong choice for production suppliers who need flexible effect lighting stock that can cover several roles across different events.

Summary

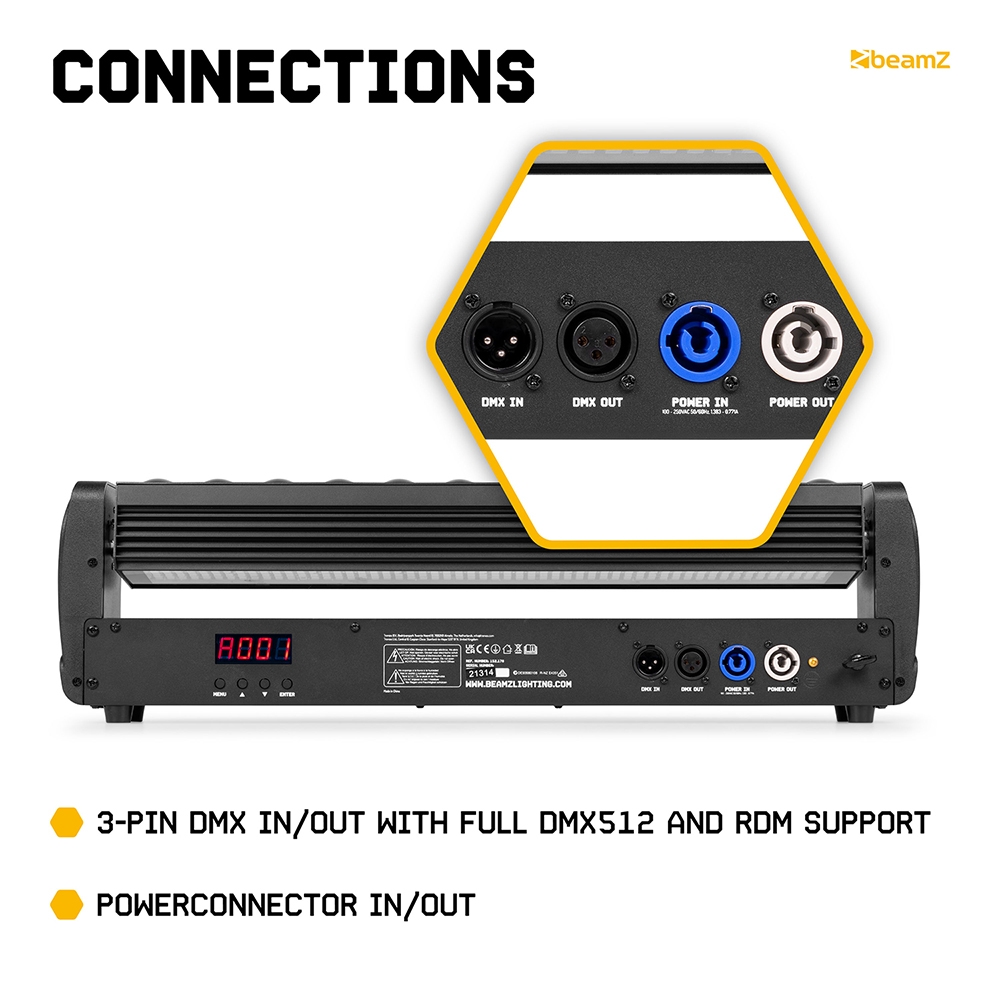

The BeamZ DuoFlip is a two-sided LED light effect with RGBW beams, RGB pixel sections, white strobe zones, 1–22Hz flash rate, 3-pin XLR DMX, P-Con power in/out, convection cooling and IP20 indoor rating. Small footprint, lots of visual options, and simple enough for regular touring use.
