BeamZ LCB366 Hybrid LED Panel with Pixel Control


Key Features

  • Hybrid LED panel
  • Features 36x 3W warm white LEDs
  • 216x SMD LEDs produce backlight effect with RGB colour mixing
  • Single pixel control
  • Standalone mode and DMX controllable
In Stock

Order by 5pm for delivery in 4-5 working days

BeamZ LCB366 Hybrid LED Panel with Pixel Control £449.00

Buy 2+ and save 3% at checkout

Free UK shipping on all orders over £30

  • 60 Day Easy Returns
  • 2 Year Extended Warranty
  • Design, Consulting and Installation Service
Safe & Secure Checkout

Payment Methods

BeamZ LCB366 Hybrid LED Panel with Pixel Control

The BeamZ LCB366 LED panel light creates a stunning backlight effect, perfect for enhancing the atmosphere in clubs, event halls, wedding venues and marquees. This LED light effect features 36x 3W warm white LEDs which produce a bright output, and 216x SMD LEDs with RGB colour mixing which produce a multi-coloured backlight effect.

This event lighting features a standalone mode for quick and easy plug-and-play use. There is a choice of pre-programmed shows that can be easily selected using the LED display. The brightness and flash rate can also be adjusted to suit your preferences.

Alternatively, this pixel-control light can be DMX controlled, allowing you to program single pixels to create stunning effects. The unit has 8 or 144 DMX channels and a 3-pin XLR input and output for custom operation with an external DMX controller. This enables you to create letters, numbers, symbols, and patterns, and make adjustments to the brightness, colour, strobe, and rotation.

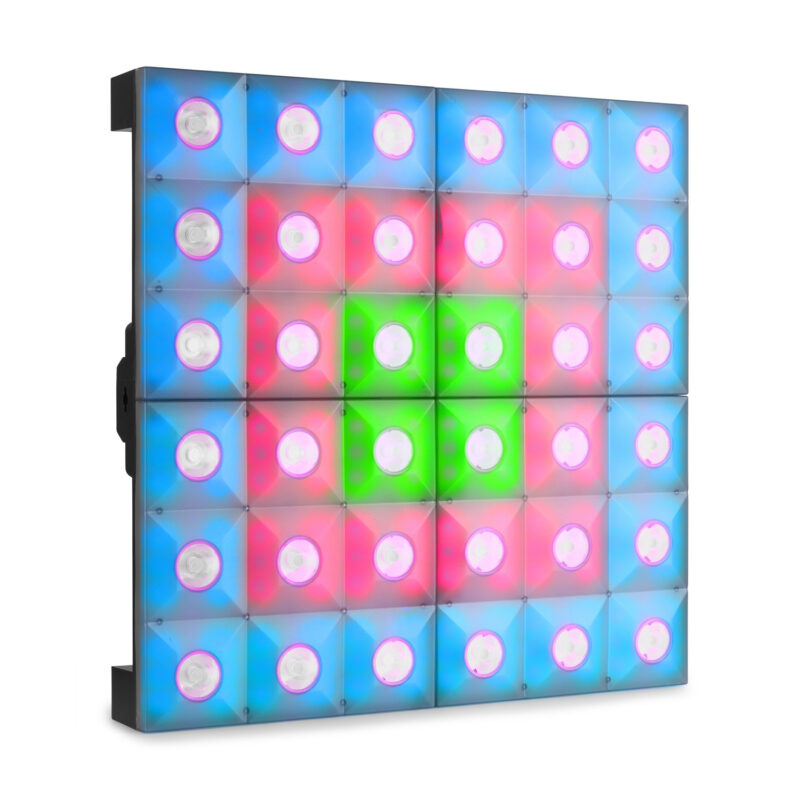

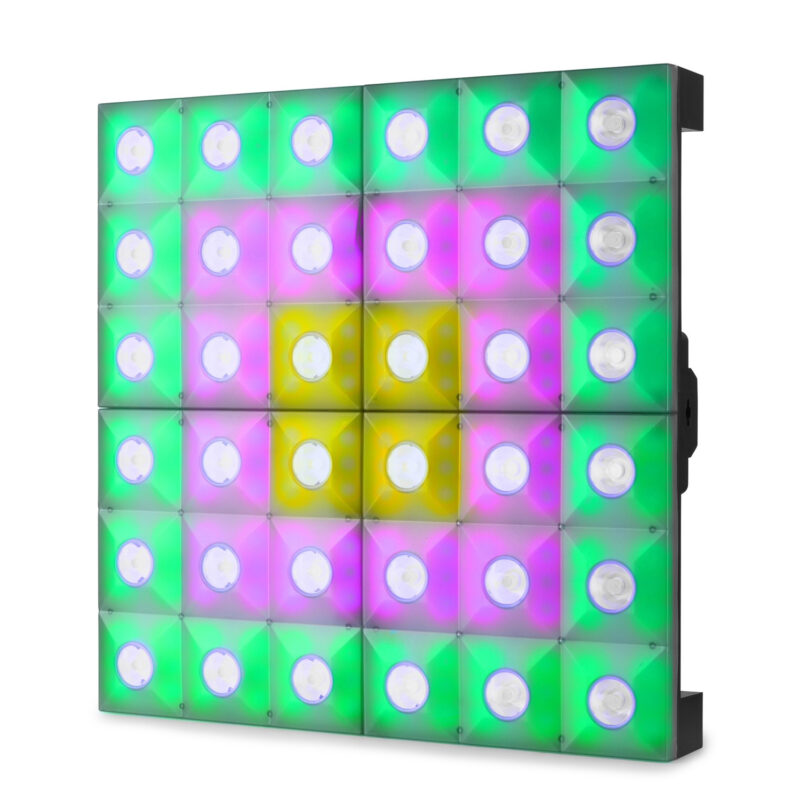

Hybrid Design

This LED panel produces two eye-catching effects. There are 36 single LEDs with a 3W output, producing a bright warm white output with a 5-degree beam.

Additionally, there is a multi-coloured backlight effect, with 216 SMD LEDs. These LEDs feature RGB (red, green, blue) colour mixing, providing a wide choice of colours.

LCB366 LED Panel Light Hybrid Design
LCB366 Single Pixel Control

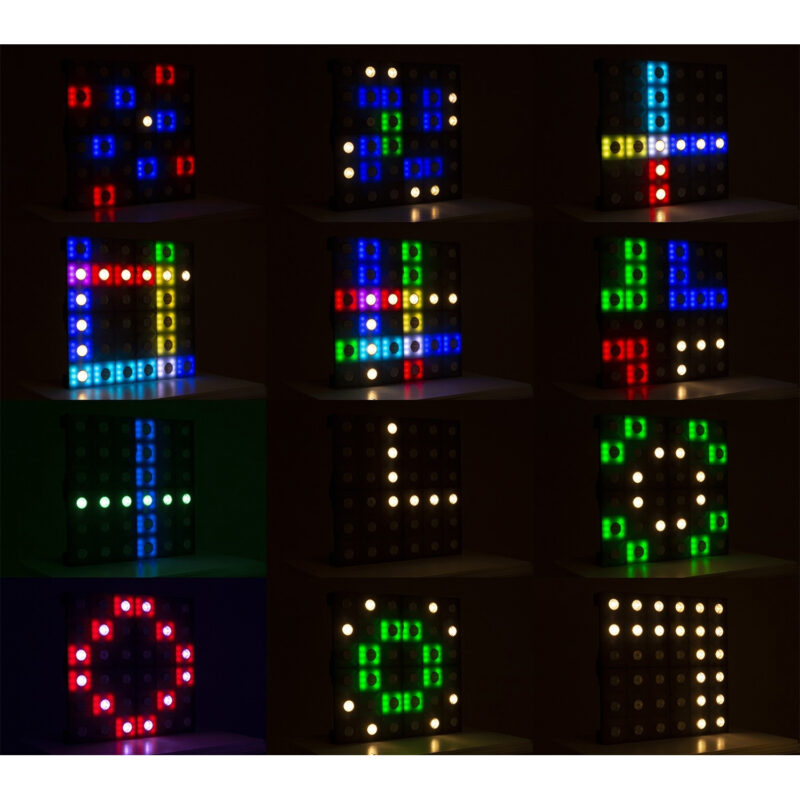

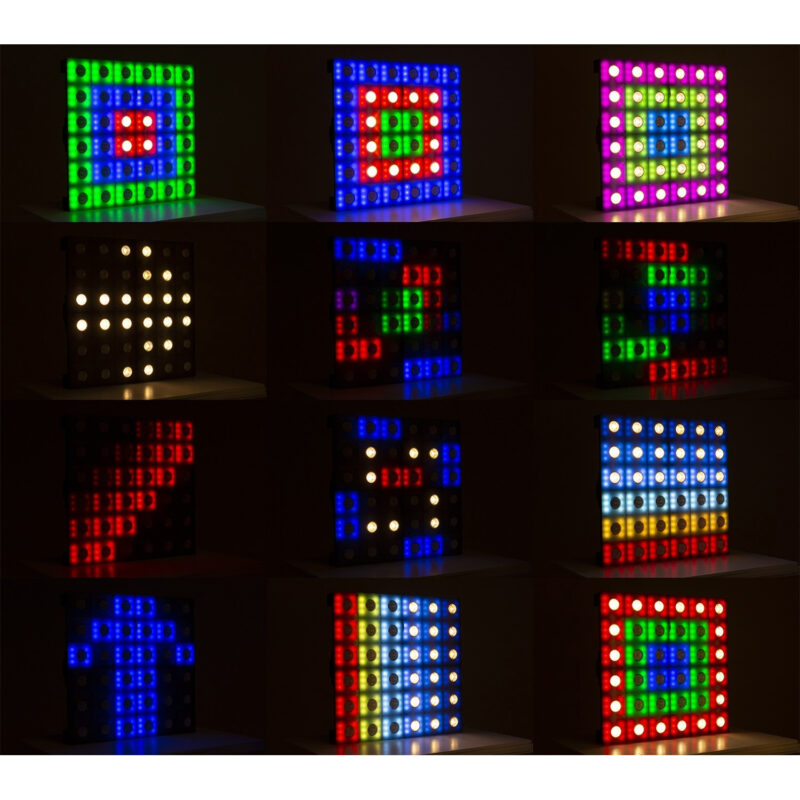

Single Pixel Control

The LED lights can be programmed in single pixels with an external DMX controller. As a result, letters, numbers, patterns and symbols can be created, and impressive chase effects.

As a result, the effect can be customised to suit any event or occasion, perfect for wedding venues and marquee lighting.

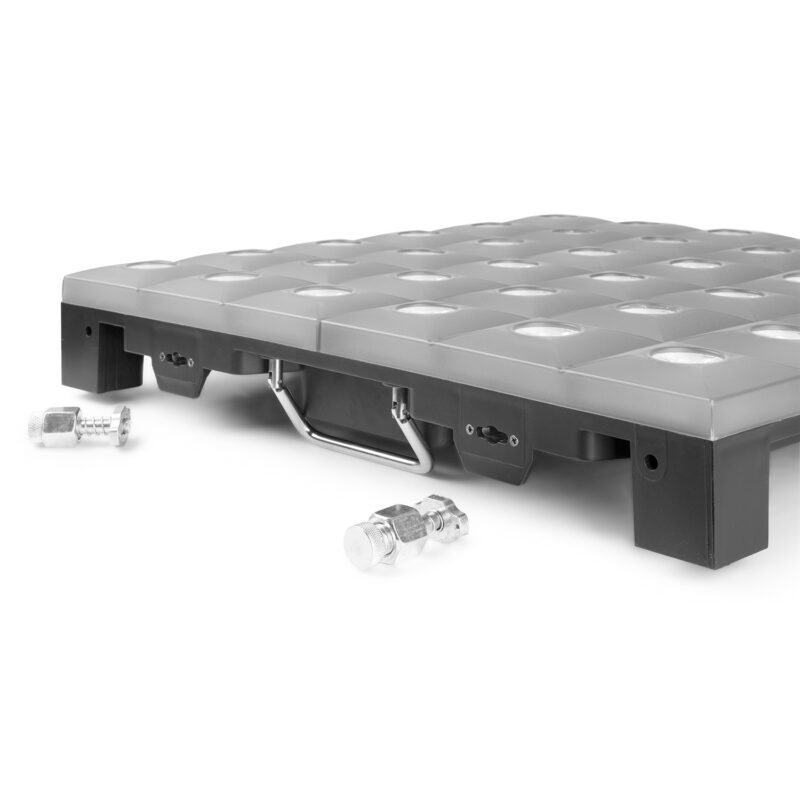

Connect Multiple Panels Easily

Another advantage of these LED panels is that multiple panels can be easily fastened together, perfect for creating large displays for nightclub lighting. There are quick locks that enable units to fasten simply together.

A master/slave function also means you can produce a synchronised show with multiple units.

LCB366 Connecting Multiple Panels

Key Details

  • Hybrid LED panel, perfect for creating an eye-catching effect in clubs, marquees, event halls and wedding venues
  • Features 36x 3W warm white LEDs, producing sharp 5-degree beams
  • 216x SMD LEDs produce a backlight effect with RGB colour mixing, providing a variety of colour options
  • Single-pixel control enables the effect to be customised
  • Standalone mode with built-in light shows
  • DMX controllable with 8 or 144 channels
  • Master/slave mode


  • 36x 3W Warm White LEDs for sharp 5 degree beams
  • 216x SMD RGB LEDs (backlight)
  • Single pixel control
  • RDM/DMX protocols
  • Built-in programs
  • Silent operation natural convection cooling system.
  • Linking multiple panels together with quick locks
  • o-LED colour display
  • Electronic Dimming: 0 - 100 percent
  • Power Connector TR input/output


  • Lightsource: Single colour LED 3-in-1 LED
  • LED Colours: Red Green Blue Warm White
  • LED Power (W): 3
  • Quantity of LEDs: 36
  • LED Power: Backlight (W): SMD
  • Quantity of Backlight LED's: 216
  • Beam angle (degrees): 5
  • Field angle (degrees): 10
  • Illuminance (lx): 15000 lx / 1m
  • Flash rate per second: 0 - 20Hz
  • DMX Channels: 8 144
  • DMX Connector: 3-pin XLR
  • Modes: Automatic programs DMX Manual Master/Slave
  • Cooling: Convection
  • Display: oLed
  • Power Plug: Power-connector
  • Power consumption: 1.8 - 0.9A
  • Power Supply: 110-250VAC 50/60Hz
  • Dimensions (L x W x H): 500 x 500 x 80mm
  • Weight (kg): 6.7000
  • Accessories: Mounting bracket, Power Cable
  • MPN: 150.675-US

Additional information





Power Rating

200W – 299W

Light Colours


Battery Powered


Wireless DMX


Bulb Type




IP Rating


Flight Case
