BeamZ LCB803 LED Light Bar Wall Washer Venue Uplighter – 80x 3w


Key Features

  • Bar LED light with RGB colour mixing
  • 80x 3W LEDs in 8 individually controllable sections
  • DMX controllable with 3, 6, 12, 24, or 48 channels
  • Auto and sound-active modes with adjustable speed
  • Master/slave syncing with IEC power in/outputs
In Stock

Order by 5pm for next working day delivery

BeamZ LCB803 LED Light Bar Wall Washer Venue Uplighter - 80x 3w £135.00

Buy 2+ and save 3% at checkout

Free UK shipping on all orders over £30

  • 60 Day Easy Returns
  • 2 Year Extended Warranty
  • Design, Consulting and Installation Service
Safe & Secure Checkout

Payment Methods

The Beamz LCB803 is an innovative Bar LED light, expertly designed for RGB colour mixing, making it a perfect fit for venue uplighting and event ambiances. This LED Light Bar features 80x 3W LEDs, capable of producing a wide spectrum of colours to enhance any setting. Its ability to create a variety of hues and tones makes it an ideal choice for events requiring customised and dynamic lighting, such as weddings, corporate functions, and theatrical performances.

One of the standout features of the Beamz LCB803 is its 8 individually controllable sections. This allows for creative and intricate lighting designs, as each section can be programmed to display different colours and patterns independently. Such versatility makes this LED Wall Washer an excellent tool for designers looking to add depth and complexity to their lighting schemes. Whether it’s for marquee uplighting or as a dynamic backdrop for a stage, the LCB803’s sectional control offers unlimited creative possibilities.

The LCB803 offers extensive DMX control, with options to use 3, 6, 12, 24, or 48 channels. This range of control options caters to both novice and experienced lighting technicians, providing the flexibility needed for simple setups or complex, choreographed displays. As a DMX controllable LED Light Bar, it can be seamlessly integrated into larger lighting systems, making it suitable for professional productions and events where precision and customisation are key.

In addition to its professional features, the LCB803 includes both auto and sound-active modes, each with adjustable speed settings. These modes are ideal for environments where interactive and responsive lighting is desired. The sound-active mode, in particular, allows the light to synchronise with music, creating a dynamic and engaging experience. The adjustable speed ensures that the lighting matches the tempo and mood of the event, making the LCB803 a versatile event uplighter for various occasions.

Lastly, the Beamz LCB803 features master/slave syncing capabilities, complemented by IEC power in/outputs for daisy-chaining multiple units. This functionality enables synchronised lighting effects across several fixtures, ideal for larger venues or coordinated light shows. The master/slave feature is particularly beneficial in creating unified lighting displays, crucial for professional setups and large-scale event productions.

Key Details

  • Bar LED light with RGB colour mixing to achieve a variety of hues
  • 80x 3W LEDs in 8 individually controllable sections for a multi-colour output and chase effects
  • DMX controllable with 3, 6, 12, 24, or 48 channels for varied degrees of customisation
  • Auto and sound-active modes with adjustable speed for simple plug-and-play operation
  • Master/slave syncing with IEC power in/outputs to daisy-chain multiple light bars


  • 80x 3W RGB 3-in-1 LEDs
  • Red green and blue colour mixing
  • 3612 24 or 48 DMX channels
  • 12 4 or 8 Sections controllable
  • DMX and stand-alone mode
  • Master/slave synchronization
  • Sound activated
  • Auto mode with adjustable speed

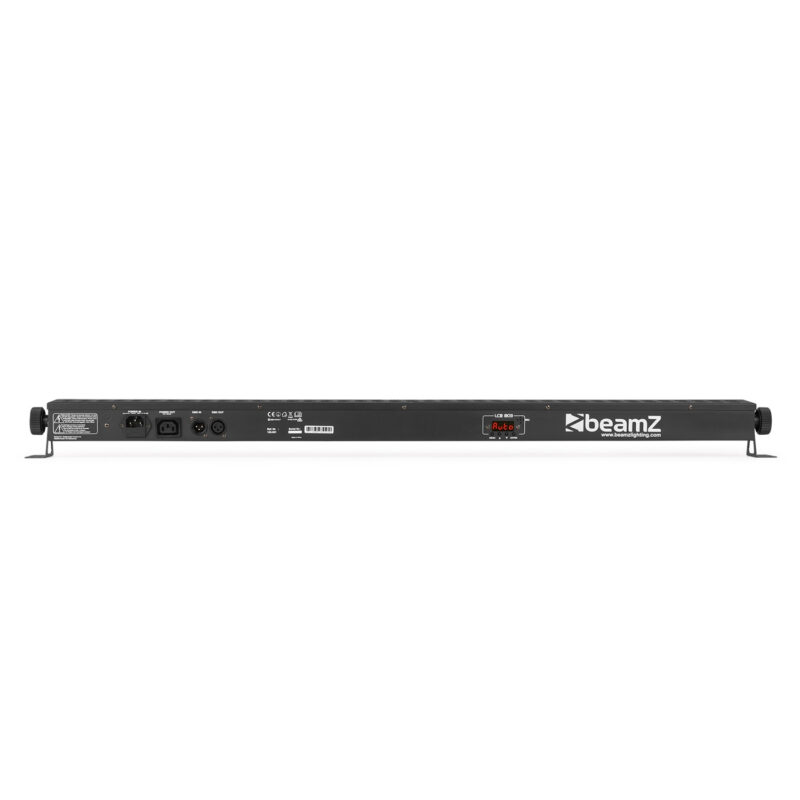

  • DMX in-/output via 3-pin XLR
  • IEC-connector in-/output
  • Control panel with LED-display

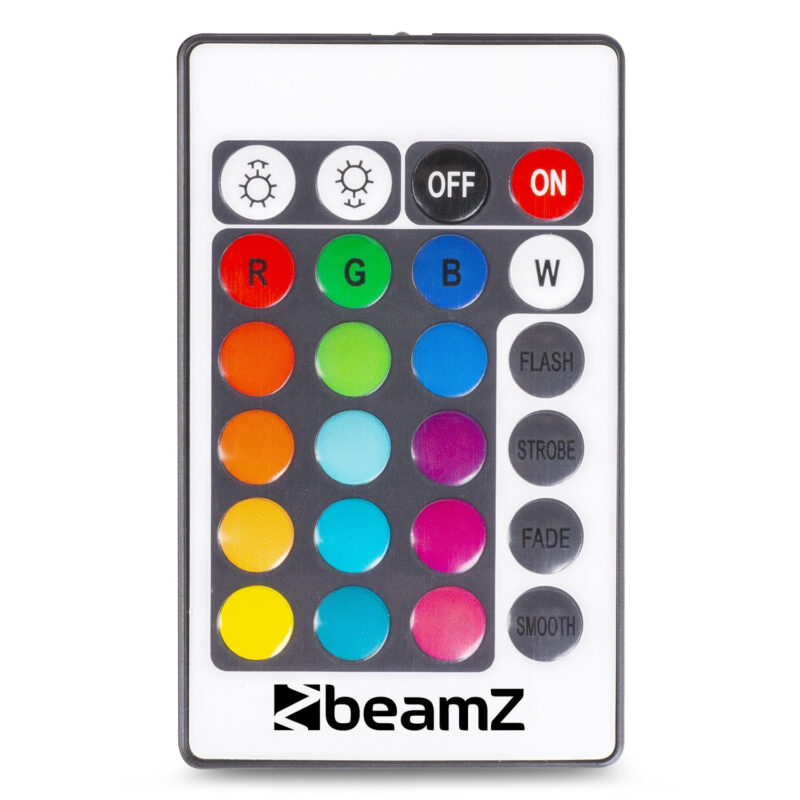

  • IR-Remote control


  • Supplied features: Master/Slave mode
  • Light source: 3-in-1 LED
  • LED colours: Red Green Blue
  • LED power : 3W
  • Quantity of LEDs: 80
  • Beam angle: 15
  • Field angle: 30
  • Illuminance: 6700 lx @ 1m
  • DMX channels: 361224 48
  • DMX connector: 3-pin XLR
  • Modes: Automatic programs DMX
  • Daisy chain: Yes (max. 6 bars)
  • Power plug: IEC
  • Power consumption: 120W
  • Power supply: 100-240VAC 50/60Hz
  • Dimensions (L x W x H): 990 x 85 x 75mm
  • Weight: 3.8500
  • MPN: 150.561

Additional information





Power Rating

200W – 299W

Light Colours


Battery Powered


Wireless DMX


Bulb Type




IP Rating


Flight Case
