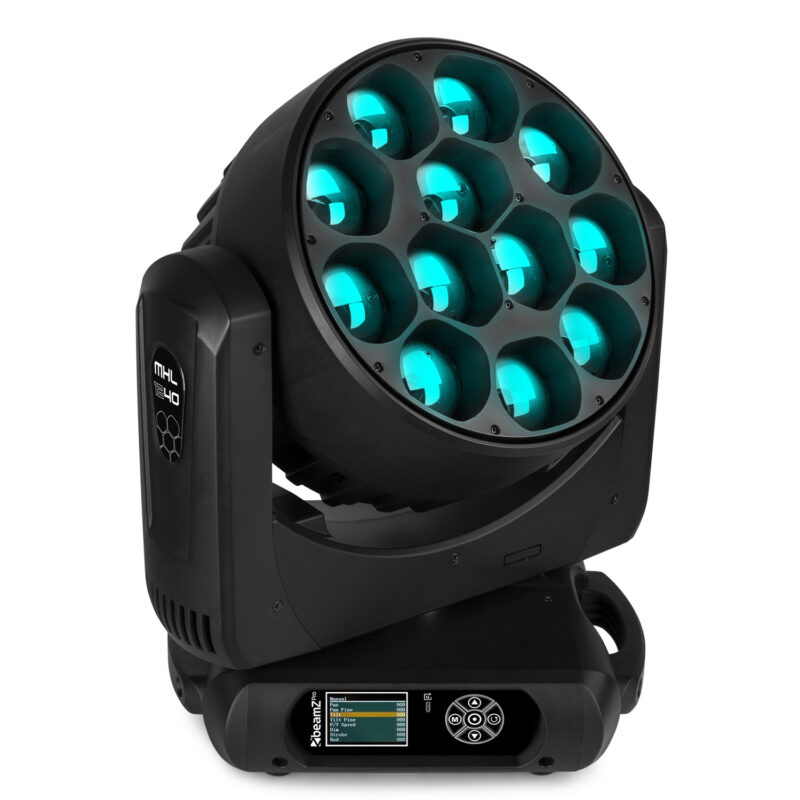

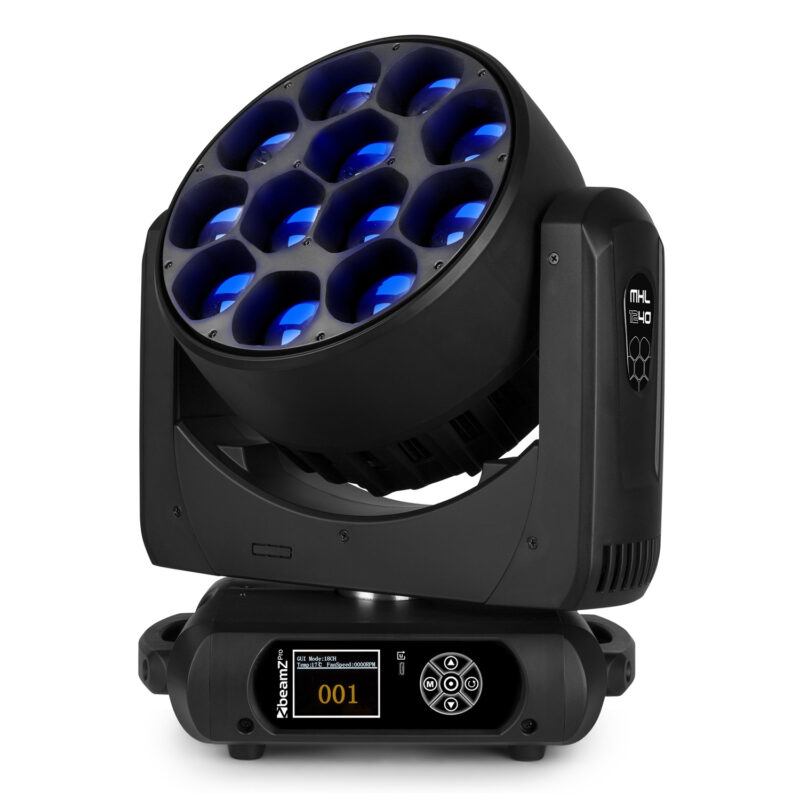

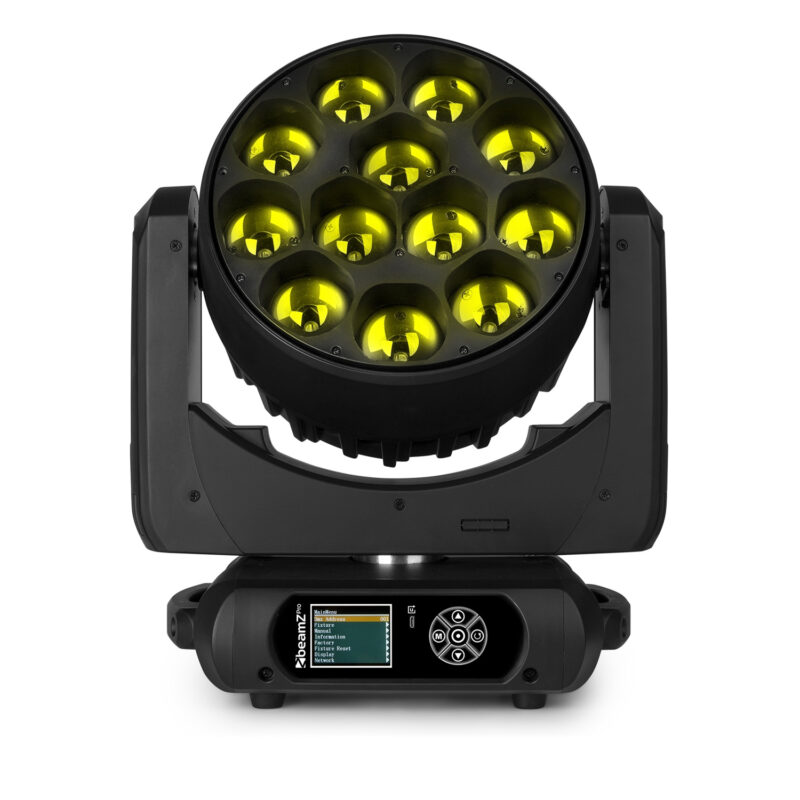

BeamZ Pro MHL1240 Moving Head Wash with Zoom – 12x40W


Key Features

  • Moving head wash with motorised zoom
  • 12x 40W RGBW 4-in-1 LEDs
  • Electronic dimming and single pixel control
  • 540/220-degree pan and tilt
  • DMX/RDM control or sound activation
In Stock

Order by 5pm for delivery in 4-5 working days

BeamZ Pro MHL1240 Moving Head Wash with Zoom – 12x40W £1,669.00

Buy 2+ and save 3% at checkout

Free UK shipping on all orders over £30

  • 60 Day Easy Returns
  • 2 Year Extended Warranty
  • Design, Consulting and Installation Service
Safe & Secure Checkout

Payment Methods

BeamZ Pro MHL1240 Moving Head Wash with Zoom – 12x40W

The BeamZ MHL1240 Mov Head Zoom is a professional moving head light, equipped with 12x 40W 4-in-1 RGBW LEDs that produce a wide palette of solid and mixed colours, with full electronic dimming for seamless intensity changes. This advanced lighting fixture also offers a motorized zoom, allowing for a beam angle adjustment between 4.5 degree and 31 degree.

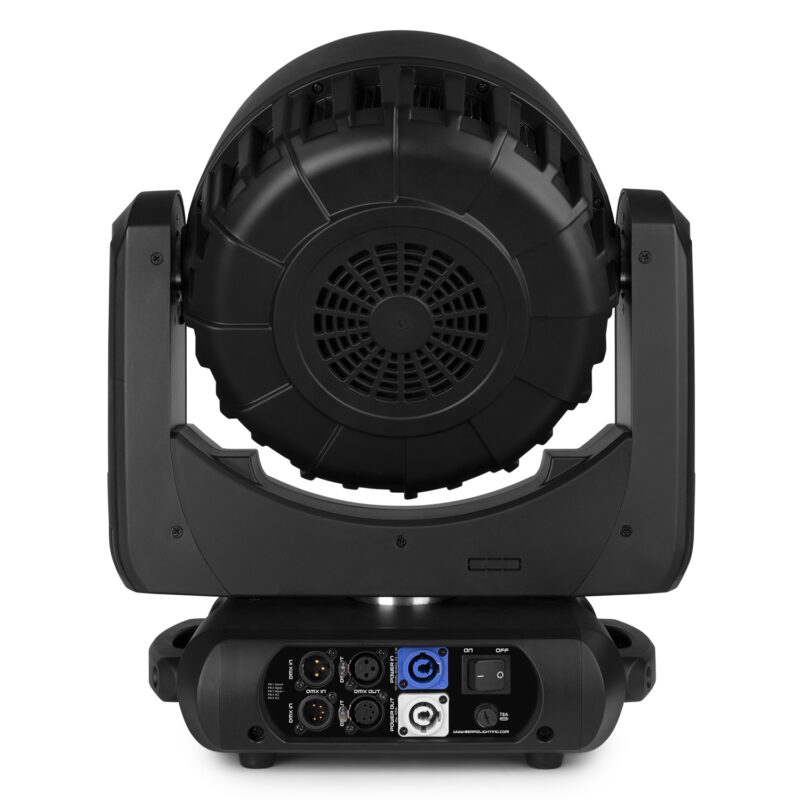

It supports a range of control options including DMX, with 11, 17, 18, or 58 channel modes, and RDM protocols. Its design includes a sound activation mode with adjustable sensitivity, and single pixel control. The MHL1240 is also designed for convenience, featuring a control panel with an LCD display, DMX in/output via 3-pin or 5-pin XLR, Powercon connector input/output, and quick lock omega clamps.

This makes it a versatile choice for various professional lighting needs, such as stage wash lighting and LED wash moving head applications in theatres, concerts, and nightclubs.

12x 40W RGBW 4-in-1 LEDs

Equipped with 12 high-power 40W RGBW 4-in-1 LEDs, this moving head wash light offers a wide spectrum of colours from its individually lensed LEDs with motorised zoom.

The powerful output is perfect for creating vibrant and eye-catching displays when used as nightclub lights and for stage lighting.

MHL1240 Moving Head Wash 40W RGBW 4-in-1 LEDs
MHL1240 Moving Head Lights Electronic Dimming

Electronic Dimming and Single Pixel Control

These features allow for precise control over the light’s intensity and colour mixing, enabling the creation of intricate lighting effects.

The single pixel control adds a layer of sophistication to lighting designs and pattern creation, making it perfect for professional stage lighting and theatre productions.

540/220-Degree Pan and Tilt

The extensive range of pan and tilt movement ensures complete coverage of the stage area.

This capability is crucial for creating engaging and dynamic lighting effects, enhancing the overall experience in live performances and events. Complete control via DMX or RDM allows for finite adjustment of both movement and light output.

MHL1240 Moving Wash Light Pan and Tilt

Key Details

  • Moving head wash with motorised zoom allows for dynamic adjustments in the beam angle, enhancing the versatility of the lighting effects
  • Equipped with high-intensity 12x 40W RGBW 4-in-1 LEDs the fixture delivers a spectrum of colours, perfect for creating a variety of moods and atmospheres
  • Electronic dimming and single pixel control offer precise control over lighting intensity and intricate pixel-level effects, crucial for detailed and dynamic lighting designs
  • The 540 degree pan and 220 degree tilt enable the creation of complex and captivating light movements, adding a dynamic element to performances
  • Compatible with both standard DMX and RDM control protocols, or sound-activated settings, this moving head provides flexibility for both programmed and reactive lighting scenarios
  • The fixture includes a colour LCD display and an intuitive interface, making setup and operation efficient and user-friendly

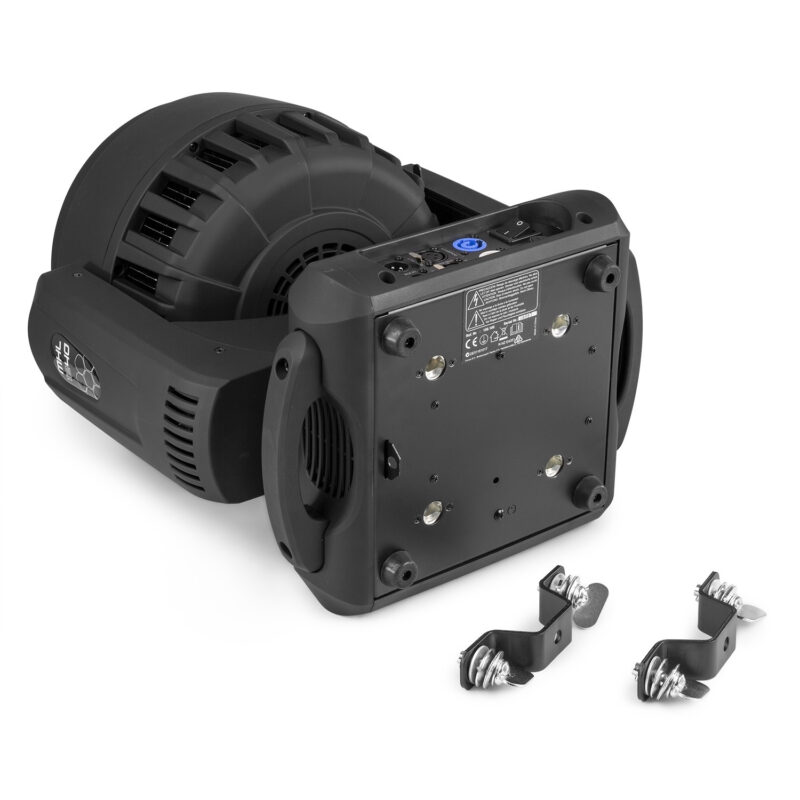

  • Quick lock omega clamps allow for easy mounting and a robust design, ensuring reliability and longevity in various professional environments


  • 12x 40W 4-in-1 RGBW LED
  • Motorized zoom
  • 11, 17, 18 or 58 DMX channels
  • RDM/DMX Protocols
  • Master/slave synchronization
  • Sound activated with adjustable sensitivity
  • 0-100% Electronic Dimmer
  • Single pixel control
  • Controle panel with LCD display
  • DMX in/output via 3-pin or 5-pin XLR
  • Powerconnector input/output
  • Quick lock omega clamps included
  • DMX cable included
  • Powerconnector cable included


  • Colour temperature: 2800K - 8000K
  • Light source: 4-in-1 LED
  • LED colours: Red, Green, Blue, White
  • Quantity of LEDs: 12
  • Beam angle: Min: 4.5 degree
  • Beam angle: Max : 31 degree
  • Field angle: min: 7 degree
  • Field angle: max: 48 degree
  • Zoom: Yes
  • Illuminance: 99.000 lx @ 3m
  • Head movement: Pan: 540 degree
  • Head movement: Tilt: 220 degree
  • Flash rate per second: 0 - 18Hz
  • Modes: Automatic programs, DMX, Manual, Master/Slave
  • Sound to light mode: Yes
  • RDM: Yes
  • DMX channels: 11, 17, 18, 58
  • DMX connection: 3-pin XLR, 5-pin XLR
  • Display: LCD
  • IP rating: IP20
  • Cooling: Temperature controlled fan
  • Power plug: Power-connector
  • Power consumption: 4.6 - 2.2A
  • Power supply: 100-240VAC 50/60Hz
  • Dimensions (L x W x H): 340x 270 x 460mm
  • Weight: 14.7000
  • Included accessories: Mounting bracket, Safety cord, Power cable, DMX cable
  • MPN: 150.101

Additional information





Power Rating

400W – 499W

Light Colours


Battery Powered


Wireless DMX


Bulb Type




IP Rating


Flight Case
