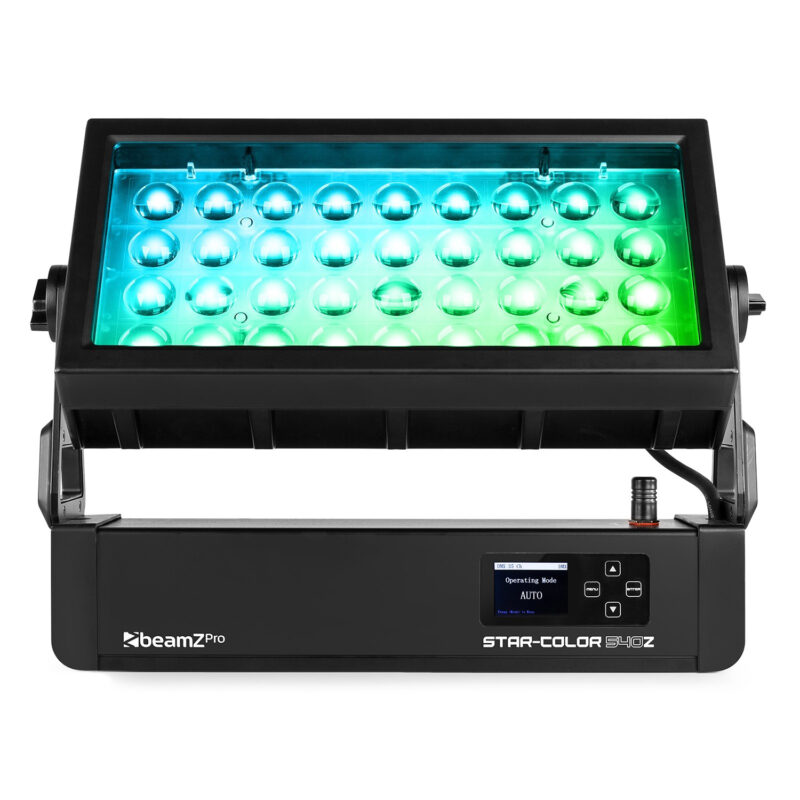

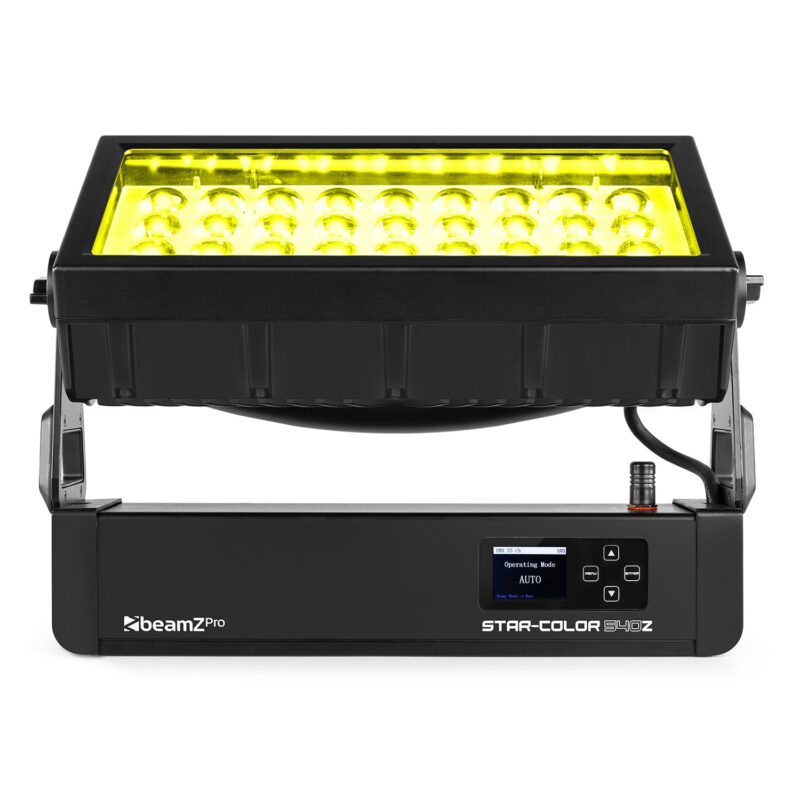

BeamZ Pro Star Color 540Z Architectural Wash Light with Zoom – 36x15W

£1,349.00

Key Features

  • Weatherproof architectural wash light
  • Features 36x 15W RGBW LEDs in individually controllable rows
  • 7-58 degree motorised zoom function
  • Standalone and DMX operation modes
  • IP65 rated for outdoor use
In Stock

Order by 5pm for delivery in 4-5 working days

BeamZ Pro Star Color 540Z Architectural Wash Light with Zoom - 36x15W £1,349.00

Buy 2+ and save 3% at checkout

Free UK shipping on all orders over £30

  • 60 Day Easy Returns
  • 2 Year Extended Warranty
  • Design, Consulting and Installation Service
Safe & Secure Checkout

Payment Methods

BeamZ Pro Star Color 540Z Architectural Wash Light with Zoom - 36x15W

If you are looking for professional architectural lighting, the BeamZ Star-Color 540Z is a great choice. It features thirty-six RGBW 15W LEDs in four rows, and seventy-two 0.2W RGB LED backlights. In addition, it is weatherproof with an IP65 rating, so is resistant to water and dirt, ensuring a reliable performance in outdoor conditions. This LED weatherproof light is perfect for building uplighting, gardens and other outdoor spaces.

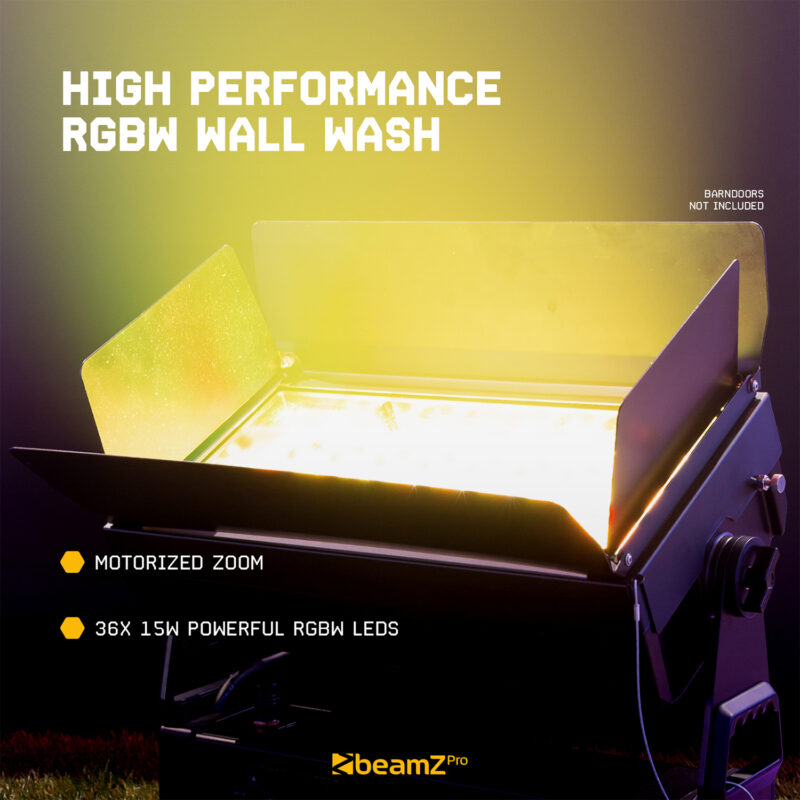

Equipped with 36 powerful 15W LEDs, this weatherproof lighting produces an intense output, with RGBW colour mixing. These LEDs are divided into four rows that can be controlled independently to create an impressive lighting show. There are also 72 RGB LED backlights which add depth and texture.

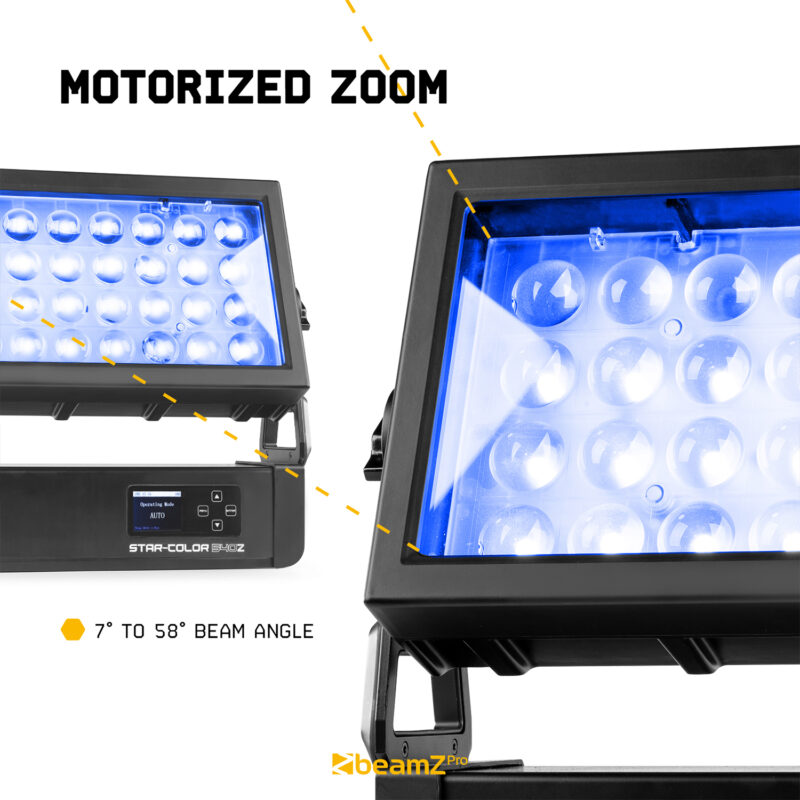

This outdoor wall wash also features a motorised zoom, allowing you to adjust the beam angle from a focused 7-degree beam to a wide 58-degree wash. This flexibility is perfect for highlighting specific features or illuminating entire walls. In addition, there is a choice of operation modes, including manual, wireless DMX and master/slave mode.

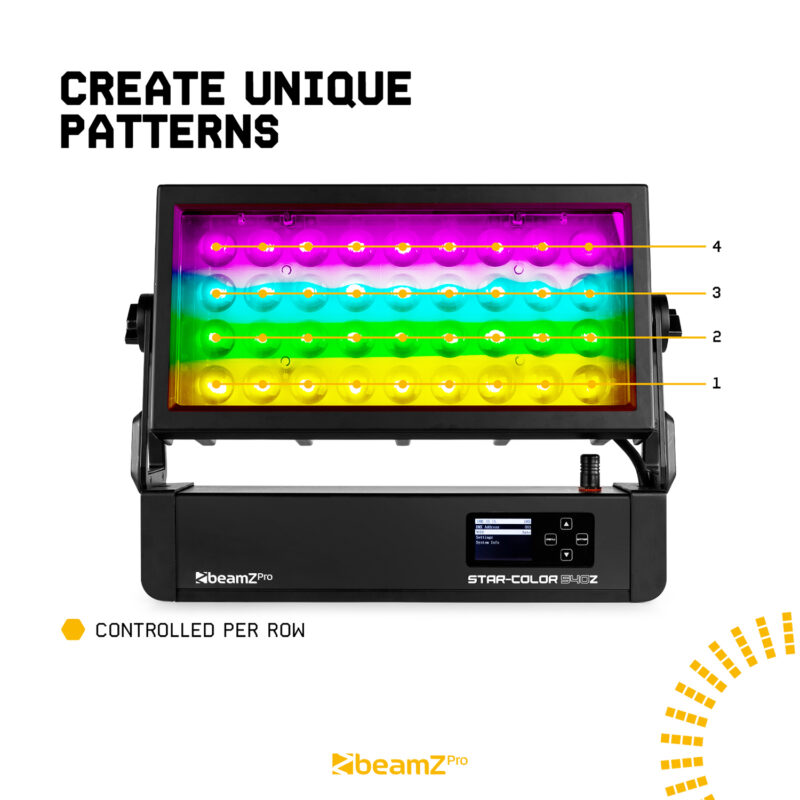

Separately Controlled LED Rows

The 36 LEDs are divided into four separate rows of 9 LEDs, and every LED features RGBW colour mixing. Each row can be controlled individually, enabling the creation of eye-catching multi-coloured effects.

The brightness can also be adjusted to suit different applications.

Star Color 540Z Architectural Wash Light LED Rows
Star Color 540Z Weatherproof Lighting Design

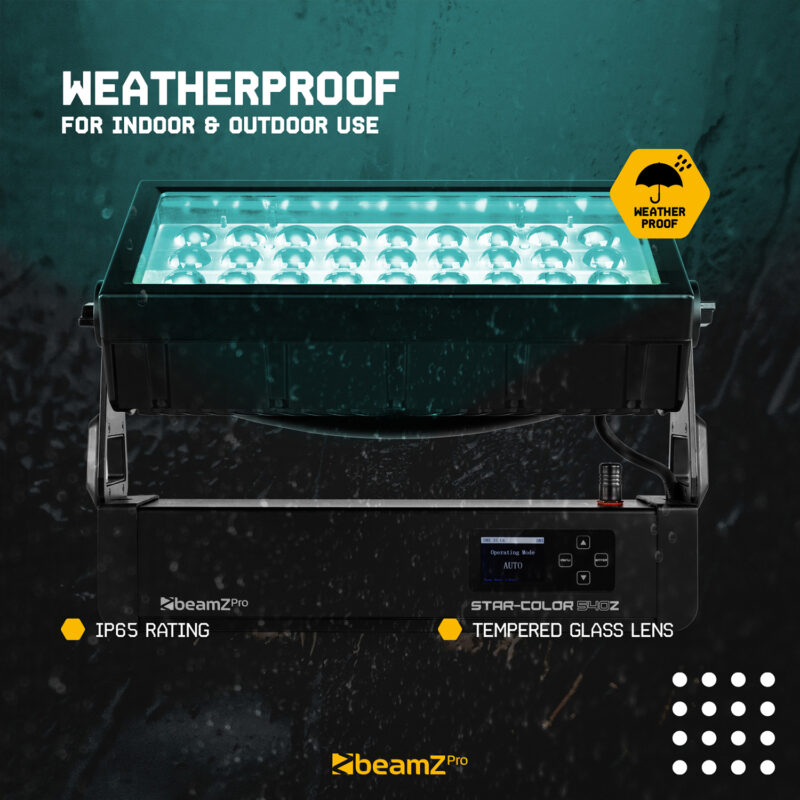

IP65 Weatherproof Rating

A waterproof IP65 rating means this wall washer is resistant to rain and dust, making it perfect for exterior architectural lighting and uplighting buildings and gardens.

The unit features a tempered glass lens and watertight internal gaskets, making it suitable for demanding environments.

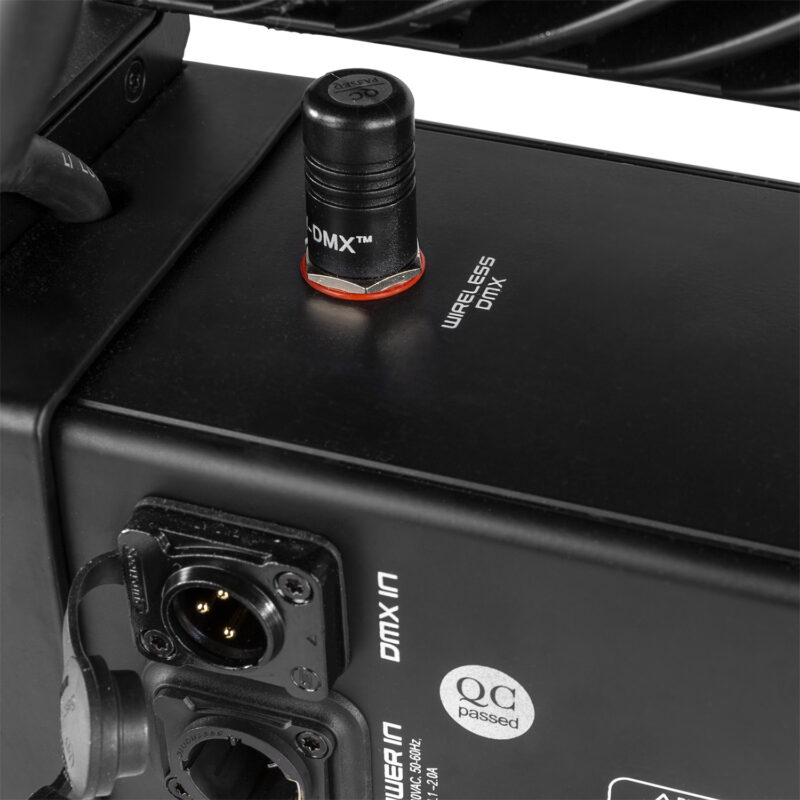

Wireless DMX control

This lighting unit features wireless DMX technology. As a result, it can connect wirelessly to a suitable DMX controller, enabling you to customise the lighting effect.

The unit features 8, 16, 19, 21, 29, 35, or 38 DMX channels, providing total control of the zoom, shutter, brightness, colour, strobe, auto programs, speed and separate LED rows.

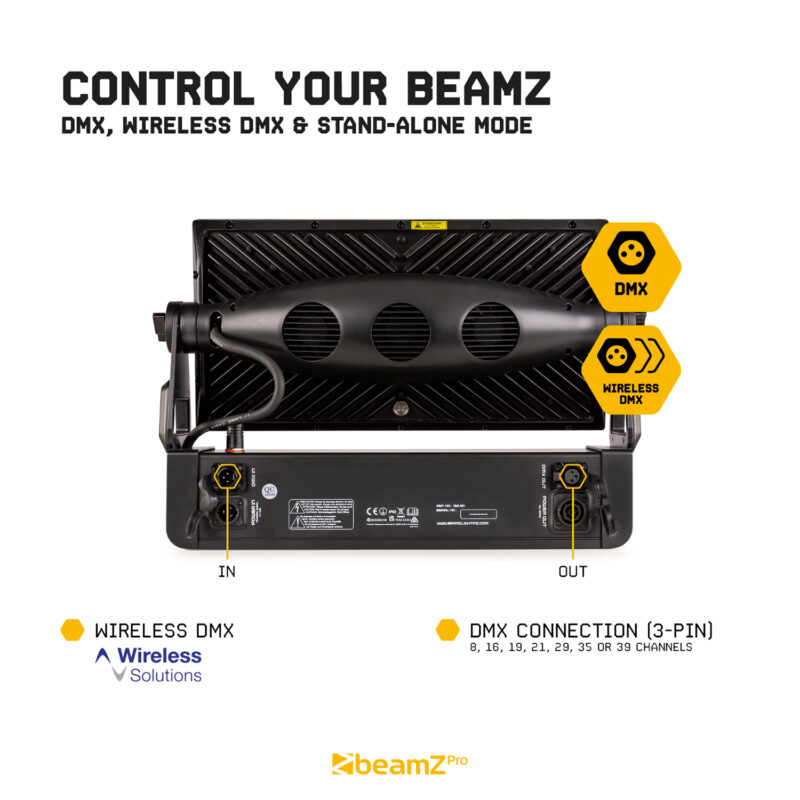

Star Color 540Z Wireless DMX Control

Key Details

  • Weatherproof architectural wash light, perfect for illuminating buildings and outdoor settings
  • Features 36x 15W RGBW LEDs divided into four individually controllable rows, with multiple inbuilt colour presets
  • 7-58 degree motorised zoom function to easily adjust coverage to suit your requirements
  • Standalone mode with automatic programmes and easy-to-use control panel
  • DMX controllable with wireless DMX receiver and 3-pin XLR input and output

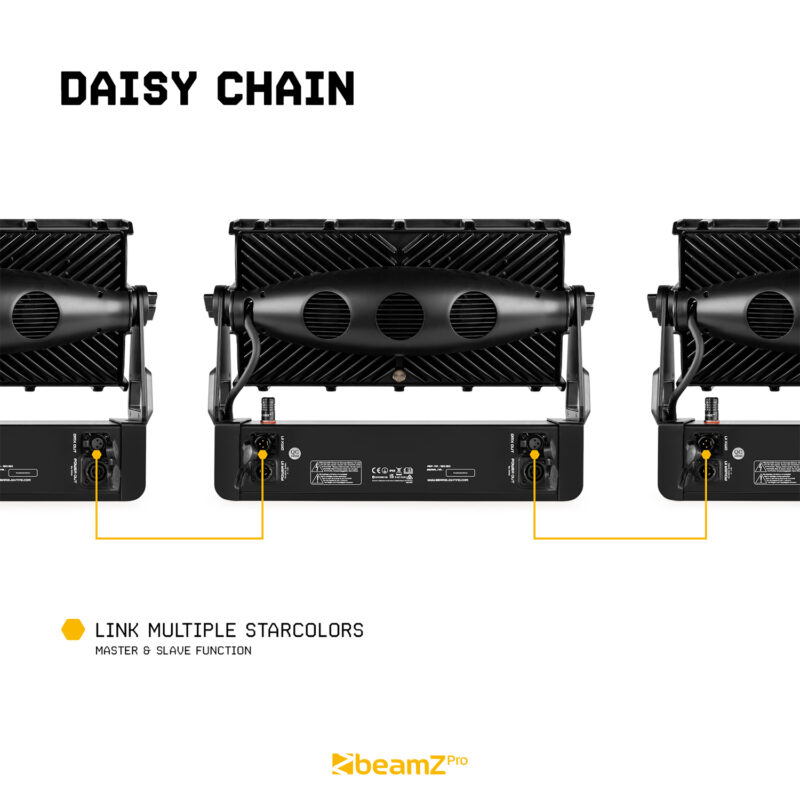

  • Master/slave mode for production of synchronised shows
  • IP65 rated, with tempered glass and watertight gaskets, for outdoor use in any weather condition

Features

  • Professional RGBW Wall Wash with zoom
  • IP65 rated waterproof design
  • 36x 15W High Power RGBW LEDs (controlled per row)
  • 72x 0.2W RGB LEDs backlight
  • Motorized Zoom-function 7 degree - 58 degree
  • Tempered glass lens and watertight internal gaskets
  • DMX512 and Wireless Solution WDMX
  • Stand alone and Master/slave Mode
  • 16 Bit dimmer
  • PWM: 600/1200/2400/4800Hz
  • Control panel with full-colour 2.4-inch TFT display
  • DMX in/output via 3-pin XLR
  • Power connector True in/output
  • Multiple built-in colour pre-sets and auto programs
  • Quick lock omega clamp included

Specifications

  • Light source: Single colour LED, 4-in-1 LED
  • LED colours: Red, Green, Blue, White
  • LED power : 15W
  • Quantity of LEDs: 36
  • LED power: Backlight: 0.2W
  • Quantity of backlight LEDs: 72
  • Beam angle: 7 degree x 58 degree
  • Illuminance: 76.689 lx @ 1m
  • Flash rate per second: 0 - 20Hz
  • DMX channels: 8, 16, 19, 21, 29, 35, 38
  • DMX connector: 3-pin XLR, Wireless DMX
  • Modes: Automatic programs, DMX, Master/Slave
  • IP rating: IP65
  • Cooling: Temperature controlled fan
  • Display: LCD
  • Power plug: Power-connector TR
  • Power consumption: 3.7 - 1.76A
  • Power supply: 100-240VAC 50/60Hz

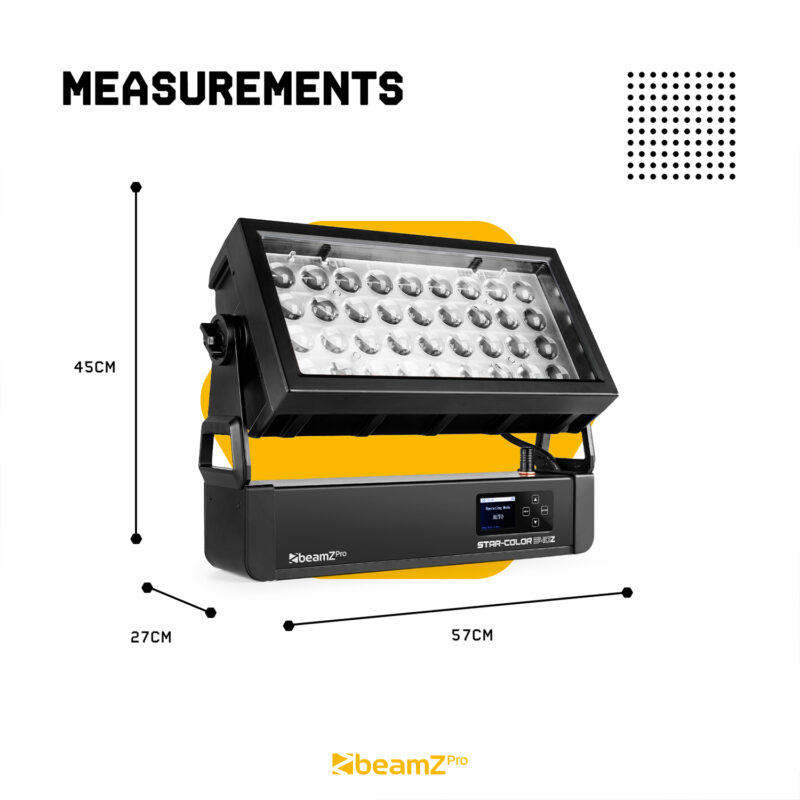

  • Dimensions (L x W x H): 575 x 270 x 450mm
  • Weight: 14.3500
  • Accessories: Mounting bracket, Power cable
  • MPN: 150.150-US

Additional information

GTIN

8715693334333

MPN

150.150

Power Rating

500W – 999W

Light Colours

RGBW

Battery Powered

No

Wireless DMX

No

Bulb Type

LED

Gobo

No

IP Rating

IP65

Flight Case

No
