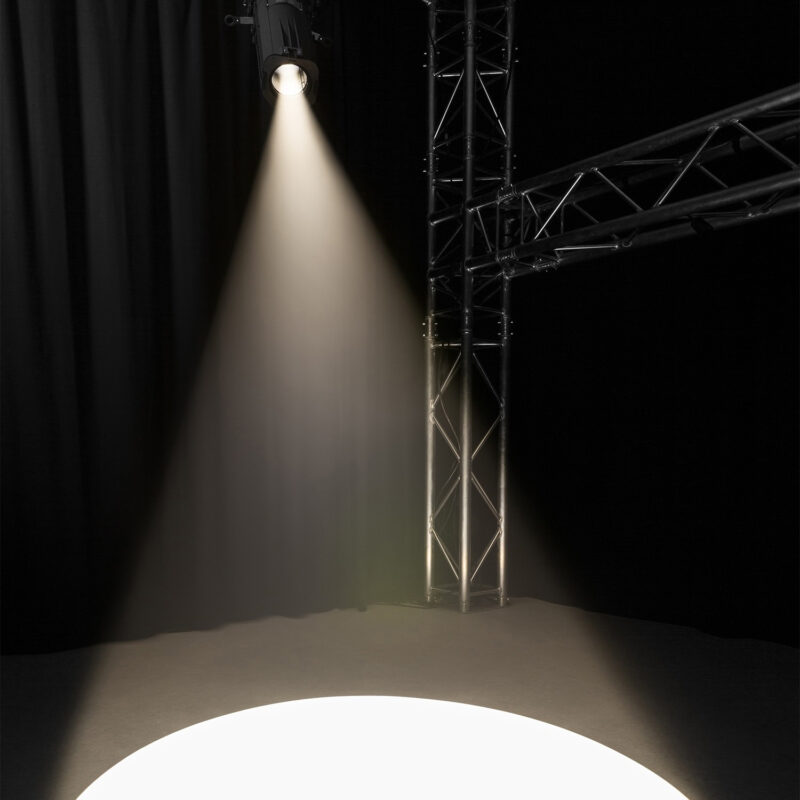

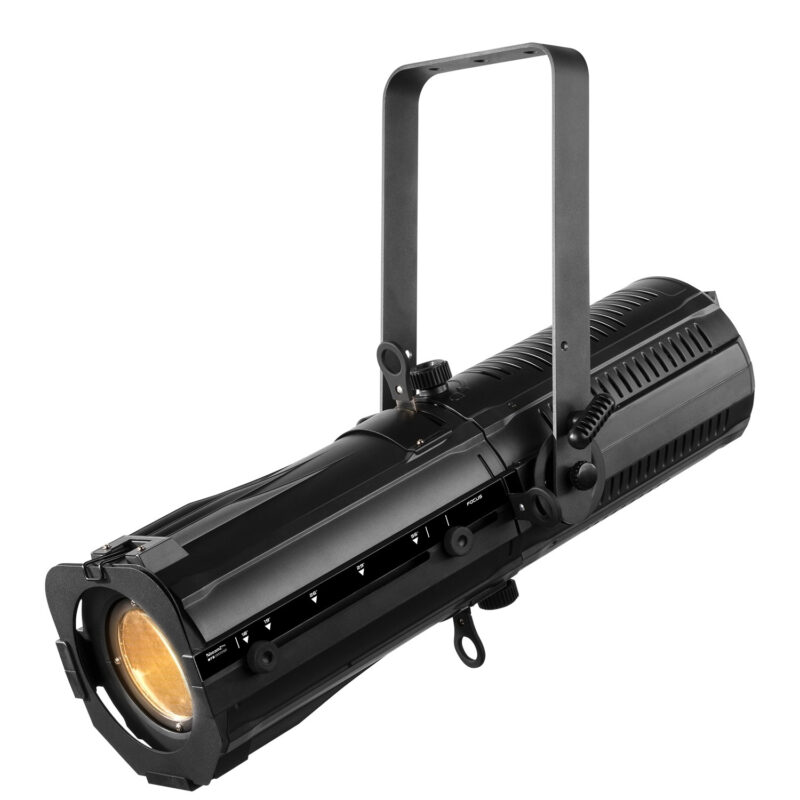

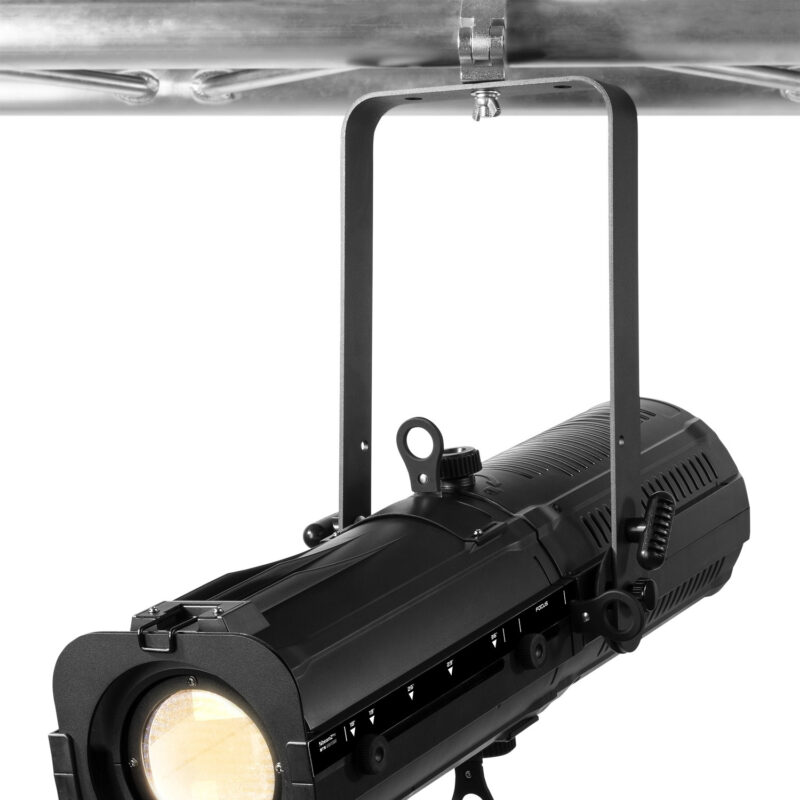

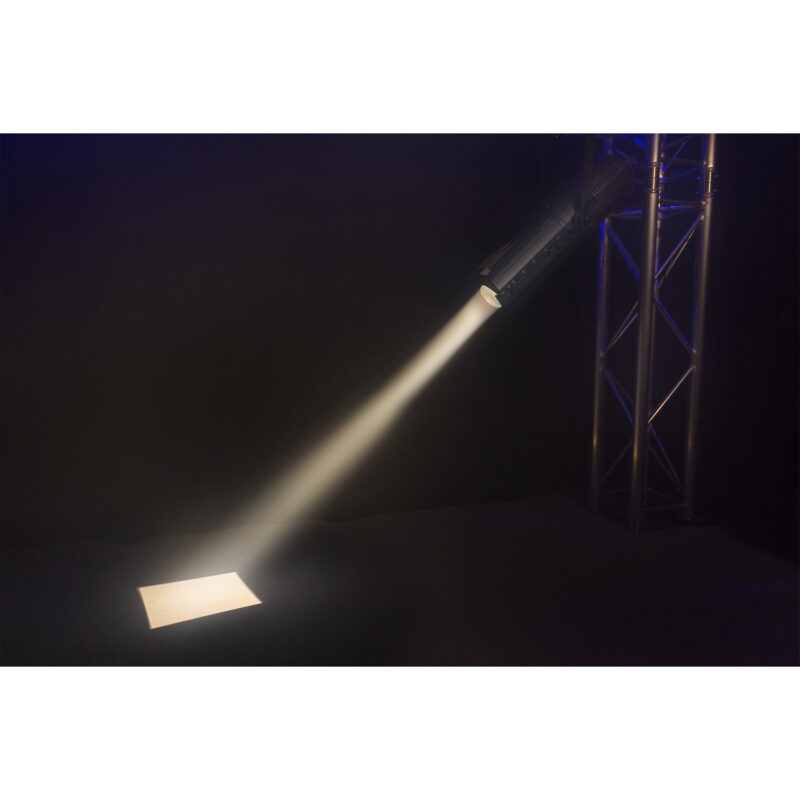

BeamZ Professional BTS300Z COB LED Theatre Profile Spotlight – White

£1,069.00

Key Features

  • Professional LED theatre profile spot
  • 300W warm white 3200k COB LED
  • 18-36 degree manual zoom adjust
  • Metal shutters with Gobo and colour filter slots
  • 16-bit DMX dimming with 5 curves
In Stock

Order by 5pm for delivery in 4-5 working days

BeamZ Professional BTS300Z COB LED Theatre Profile Spotlight - White £1,069.00

Buy 2+ and save 3% at checkout

Free UK shipping on all orders over £30

  • 60 Day Easy Returns
  • 2 Year Extended Warranty
  • Design, Consulting and Installation Service
Safe & Secure Checkout

Payment Methods

BeamZ Professional BTS300Z COB LED Theatre Profile Spotlight - White

The BeamZ Professional BTS300Z Theatre Profile Spot represents the pinnacle of stage lighting technology, serving as a professional LED theatre profile spot. Designed with the demanding needs of professional theatres and concert venues in mind, this profile spotlight is engineered to deliver exceptional lighting performance. Its advanced design not only offers superior illumination but also ensures energy efficiency, making it an ideal choice for modern stage lighting requirements.

With a 50,000-hour LED lifespan and digital thermal management, the BTS300Z has a current consumption of just 2.5 Amps, while being designed to replace 1KW-1.5KW tungsten halogen lamped fixtures. Its durable ABS body allows this large lighting fixture to weigh just 9.2kg, making it easy to manage for installation.

Intended for theatre and stage use, this high-output LED profile spot features an 18-36-degree manual zoom, a gobo slot, and full DMX or ArtNet ethernet system integration with the convenience of Powercon through connections.

300W Warm White 3200k COB LED

At the heart of this profile spotlight is a powerful 300W warm white 3200k COB LED. It provides a warm, inviting glow that is perfect for creating the right ambience on stage.

The LED’s colour temperature is specifically chosen to mimic the warm tones of traditional tungsten lights, providing a familiar yet improved lighting experience for theatre productions.

BTF300Z Warm White LED
BTS300Z Manual Zoom

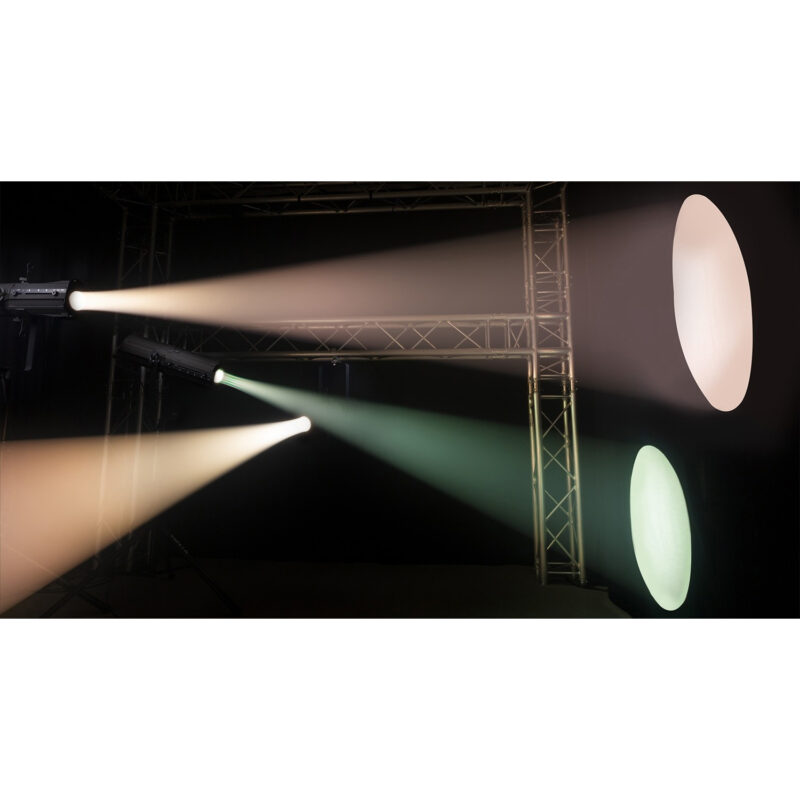

18-36 Degree Manual Zoom Adjust

A direct replacement for popular Leko light systems or the Source Four ETC series, these profile spot fixtures feature 18-36-degree zoom adjustment which covers the most popular lens sizes of 19, 26, and 36-degree.

The high-quality optics provide a concentrated flicker-free beam without the need for the ellipsoidal reflector or ERS housing of a halogen light.

16-bit DMX Dimming with 5 Curves

For precise lighting control, this theatre spotlight boasts 16-bit DMX dimming with 5 selectable curves for smooth transitions, essential for creating the right mood and atmosphere.

DMX and ARtNet compatibility ensures that the spotlight can be seamlessly integrated into existing stage lights setups, with ease of use and advanced control for lighting professionals.

BTS300Z DMX Dimming

Key Details

  • 300W Warm White COB LED with a 3200K colour temperature
  • Lifetime LED: 50.000 hours replaces 1KW – 1.5KW Tungsten Halogen profile spots
  • Compact and lightweight ABS body with 18-degree to 36-degree manual zoom system
  • 16 bit dimming via DMX with selectable PWM flicker-free output
  • CRI 97, TLCI up to 98 with 5 dimmer curves
  • Illuminance rating of 93,538 lx

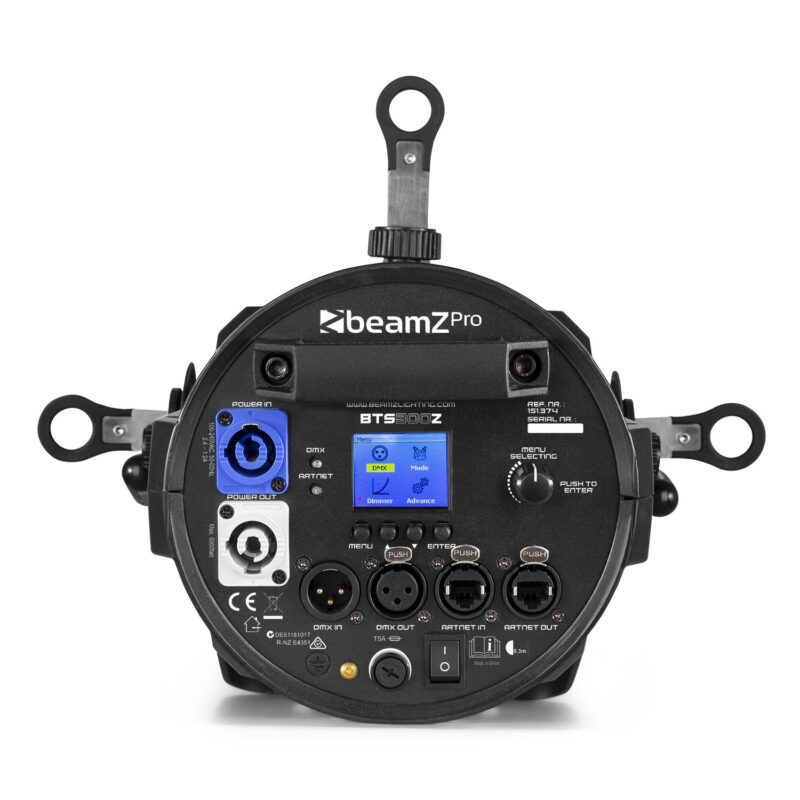

  • DMX (3-pin), ArtNet (Ethernet) and manual control options with colour display
  • Intelligent temperature control for silent operation
  • Powercon in and out connections for ease of installation

Features

  • 300W Warm White COB LED 3200K
  • Lifetime LED: 50.000 hours
  • 18 degree to 36 degree Manual zoom
  • Replaces 1KW – 1.5KW Tungsten Halogen profile spots
  • Compact and lightweight ABS body

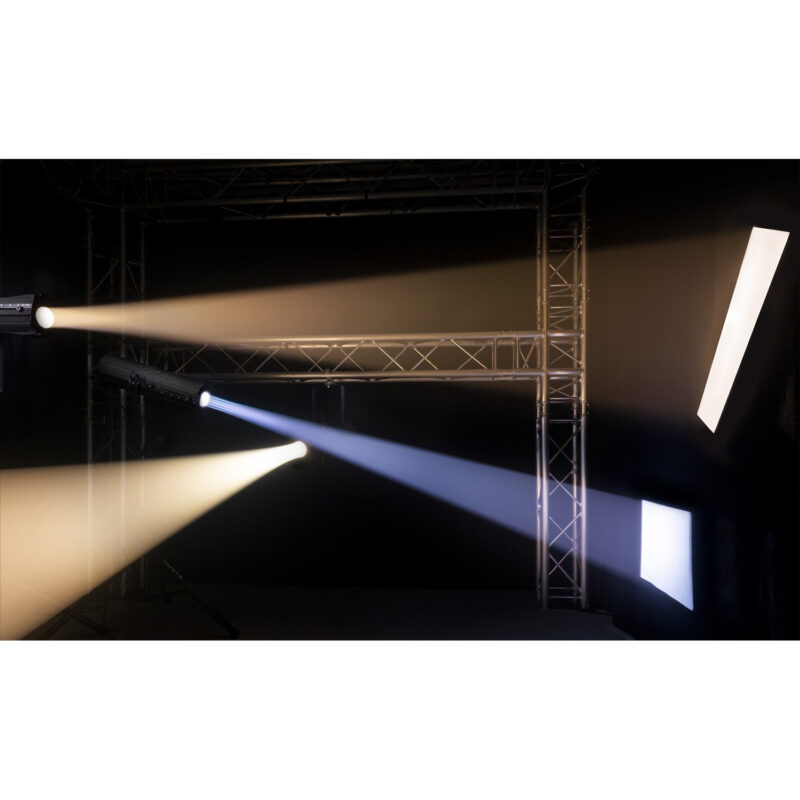

  • HQ optical system, beam with clean metal shutter cuts
  • 16 bit dimming via DMX
  • Flicker free with selectable PWM
  • Control Panel: full colour LCD Display
  • CRI 97, TLCI up to 98
  • DMX (3-pin) and manual control options
  • Gobo slot
  • 5 dimmer curves
  • Intelligent temperature control for silent operation
  • Powerconnector in&out
  • Including safety cord and colour frame

Specifications

  • Light source: Single colour LED
  • LED colours: Warm White
  • LED power : 300
  • Colour temperature: 3200K
  • Quantity of LEDs: 1
  • Beam angle: Min: 18
  • Beam angle: Max : 36

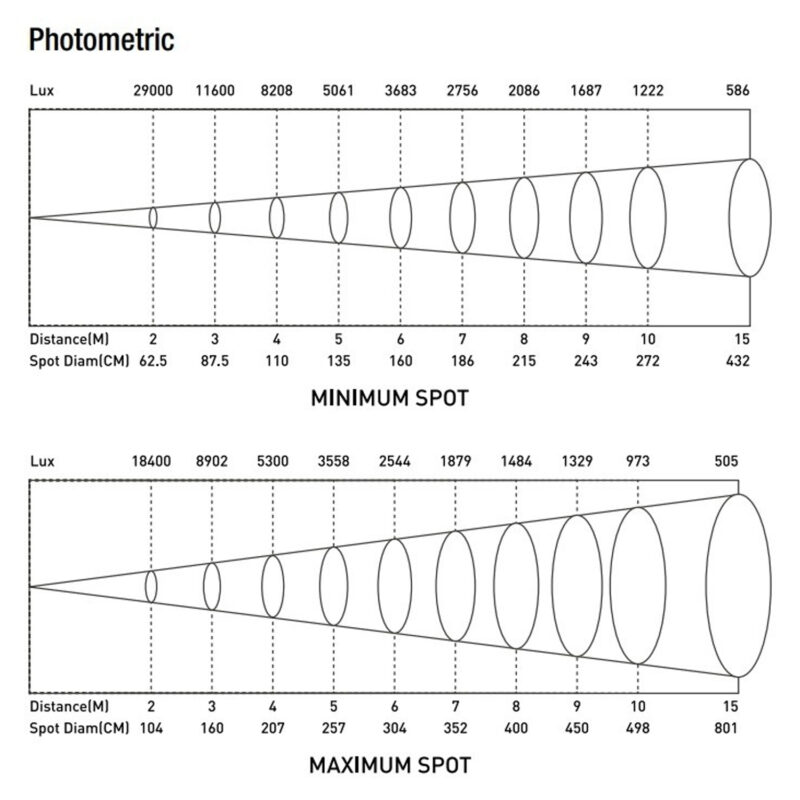

  • Illuminance: 93538 lx (zoom in)
  • Flash rate per second: 1 - 15Hz
  • DMX channels: 1, 2, 3
  • DMX connector: 3-pin XLR, RJ45
  • Modes: DMX
  • IP rating: IP20
  • Power plug: Power-connector
  • Power consumption: 2.5 - 1.5A
  • Power supply: 100-240VAC 50/60Hz
  • Dimensions (L x W x H): 294 x 745 x 294mm
  • Weight: 9.2000
  • Accessories: Mounting bracket, Power cable, Safety cord
  • MPN: 151.374-US

Additional information

GTIN

8715693310030

MPN

151.374

Power Rating

300W – 399W

Light Colours

Warm White

Battery Powered

No

Wireless DMX

No

Bulb Type

COB LED

Gobo

No

IP Rating

IP20

Flight Case

No
