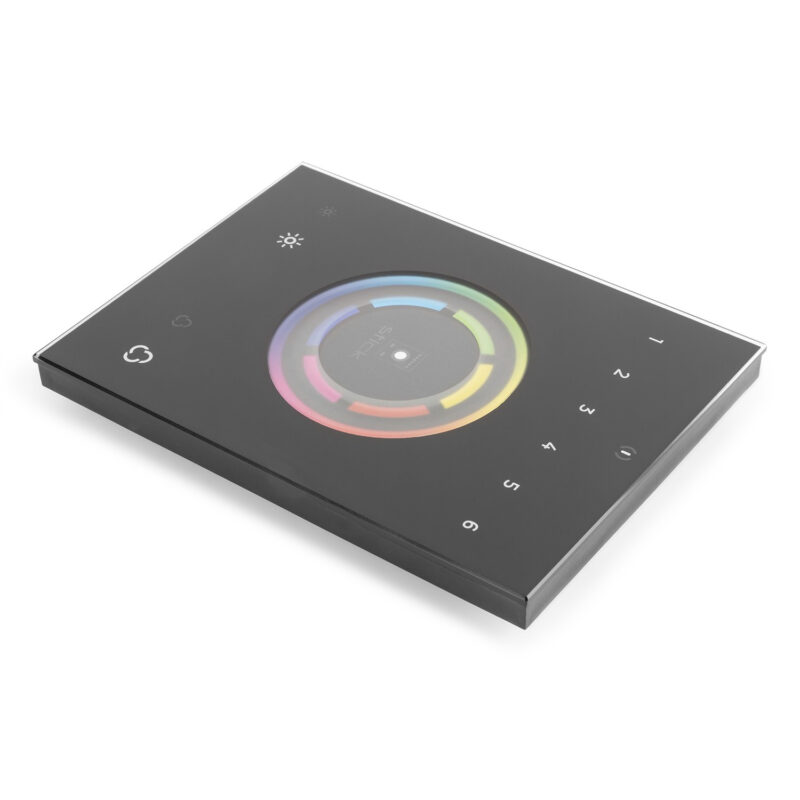

BeamZ STICK-CW4 WiFi DMX Software Wall Control Interface


Key Features

  • In-wall DMX lighting controller
  • Touch-sensitive buttons and colour wheel
  • Onboard memory to store custom scenes
  • Clock and calendar with timed triggering
  • WiFi network and smart device app control
In Stock

Order by 5pm for next working day delivery

BeamZ STICK-CW4 WiFi DMX Software Wall Control Interface £569.00

Buy 2+ and save 3% at checkout

Free UK shipping on all orders over £30

  • 60 Day Easy Returns
  • 2 Year Extended Warranty
  • Design, Consulting and Installation Service
Safe & Secure Checkout

Payment Methods

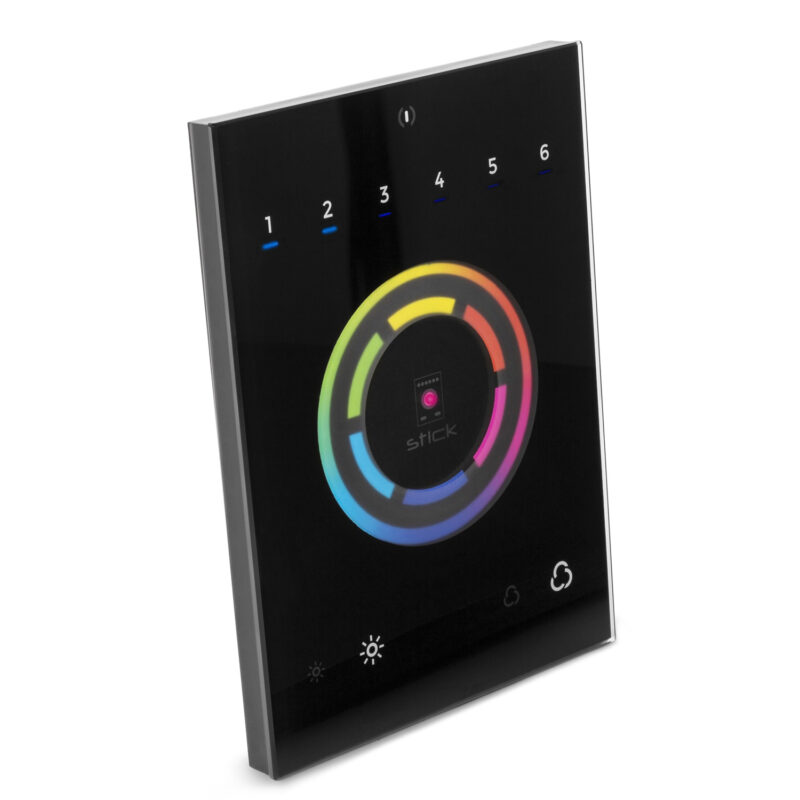

The BeamZ STICK-CW4 is an innovative in-wall DMX lighting controller, expertly designed for both architectural and venue lighting. Its versatility makes it ideal for use in various settings, from clubs and theatres to outdoor architectural spaces, providing precise and easy lighting control.

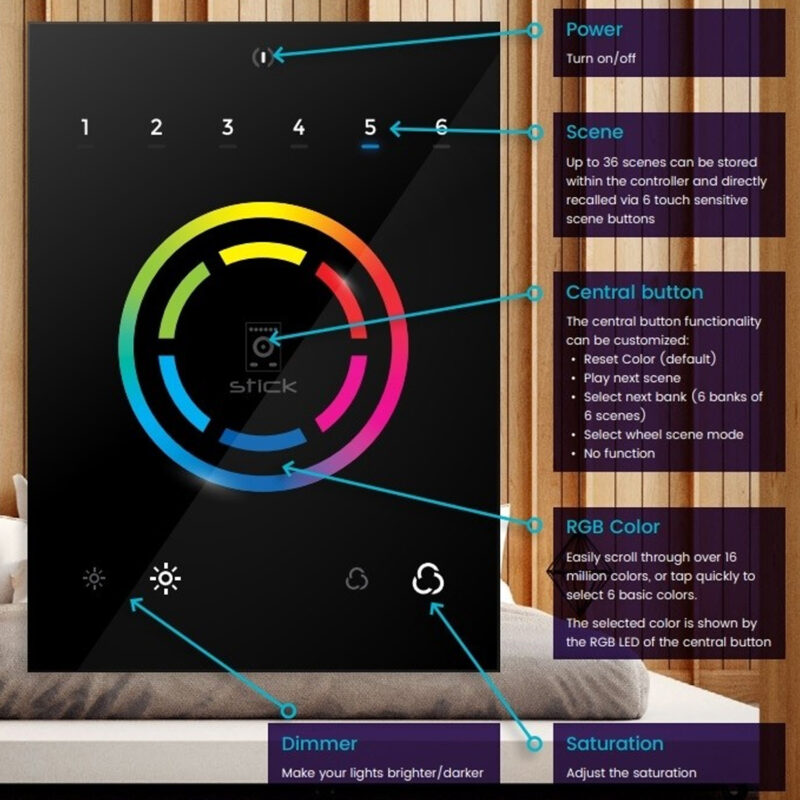

The STICK-CW4 features touch-sensitive buttons and a colour wheel, offering intuitive control over lighting parameters without the need for programming knowledge by the user. This modern design ensures a sleek and user-friendly interface for managing lighting effects.

Equipped with built-in flash memory, the STICK-CW4 allows you to program and store custom DMX scenes using a laptop or PC. This feature ensures immediate access to your custom lighting scenes directly from the touch panel interface, enhancing the efficiency of lighting management.

The device includes a built-in clock and calendar function, which, once connected to WiFi, can trigger automatic lighting shows at specific times. This functionality is ideal for creating scheduled lighting sequences with minimal manual intervention, perfect for event lighting and gallery lighting.

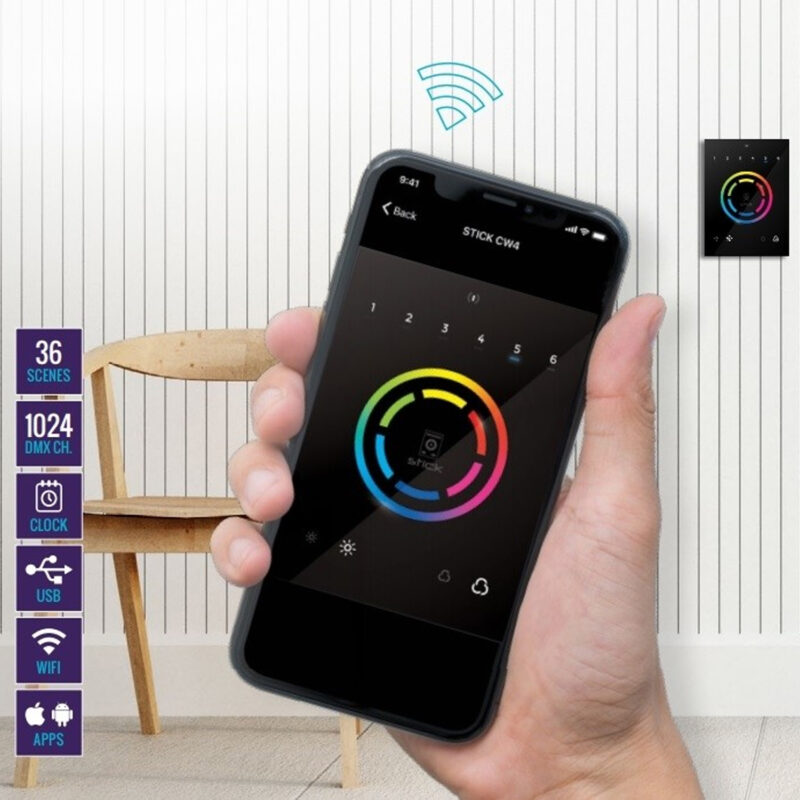

With its advanced WiFi capabilities, the STICK-CW4 offers seamless, wireless control over DMX-enabled lighting fixtures. Compatible with various software applications on iOS and Android devices, this WiFi DMX interface provides flexible and convenient control options for your lighting needs, suitable for a range of applications including museum lighting and event venue lighting.

Key Details

  • In-Wall DMX Controller ideal for architectural and venue lighting, offering a centralised control solution.
  • Touch-sensitive interface features buttons and a colour wheel for intuitive lighting control.
  • Built-in flash memory allows for storing custom DMX scenes programmed from a laptop or PC for instant access.
  • Clock and calendar functions includes sunrise and sunset triggering for automatic lighting sequences.
  • WiFi connectivity offers wireless control over lighting via smart device apps, enhancing flexibility and ease of use


  • Standalone flat wall mounted lighting controller

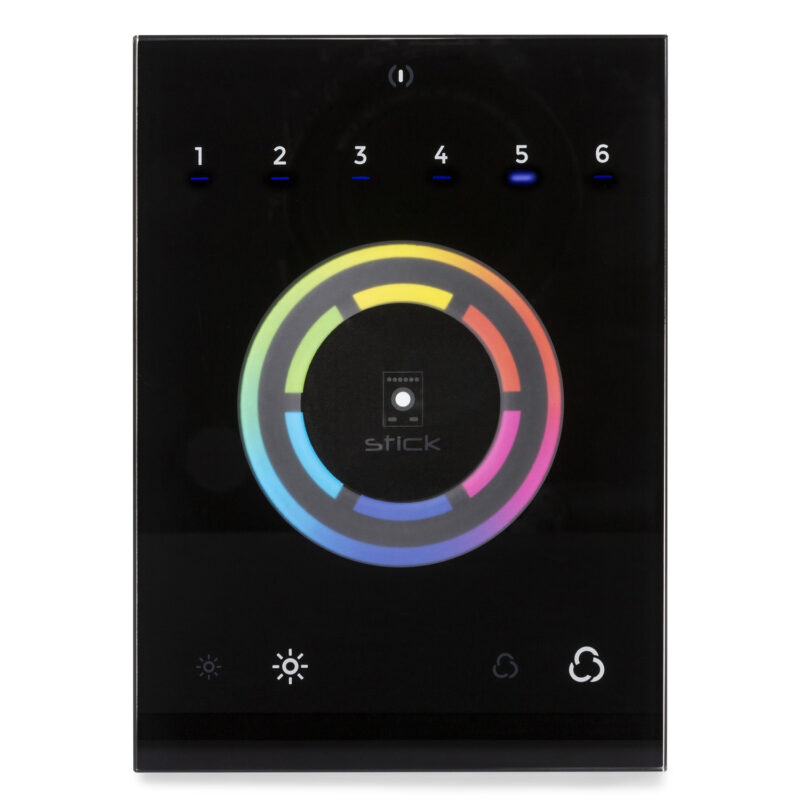

  • State of the art glass design panel which sits 11mm from the wall (touch sensitive)
  • Compatible with any DMX fixture or DMX LED driver
  • Colour palette (can also be used for scene selection)
  • Built-in flash memory for storing programs
  • Up to 36 dynamic or static scenes
  • 1024 DMX channels. Control 340 RGB fixtures
  • 12 touch-sensitive buttons. No mechanical parts
  • Touch-sensitive wheel allows for accurate color selection
  • 512 Live channels, 512 standalone channels

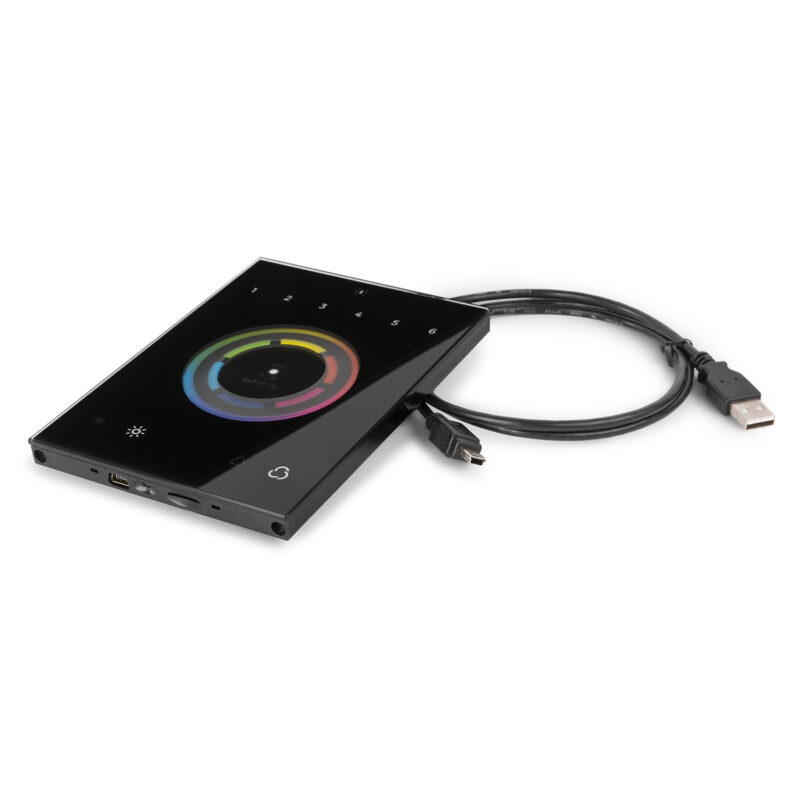

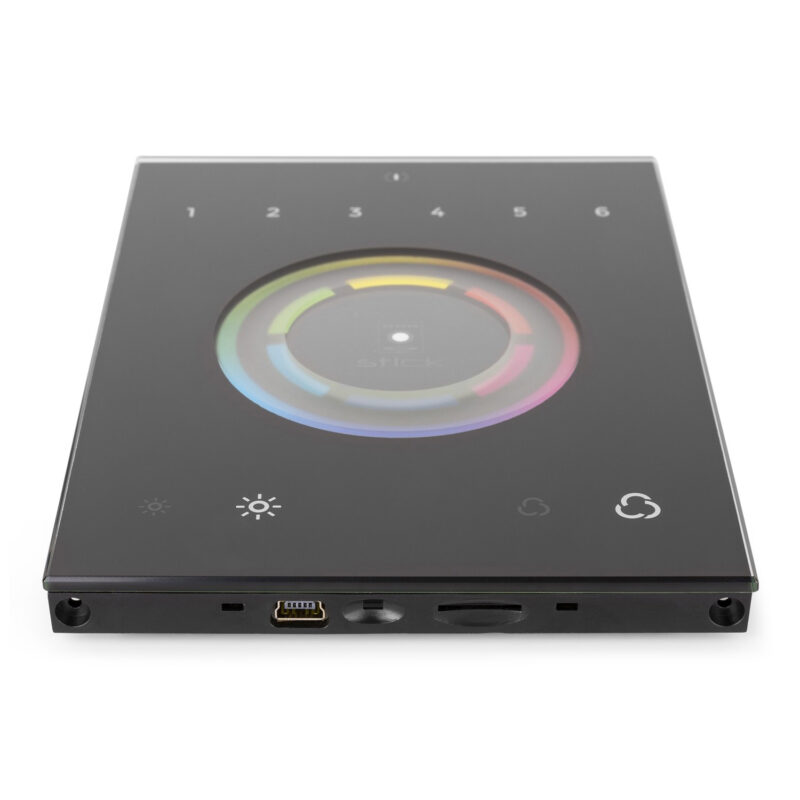

  • USB connectivity for programming and control
  • Controllable with  ESA2 BeamZ Edition (Full mode) software and Arcolis, Lightpad and Easy Remote Pro software (Android/IPad)
  • Ethernet RJ45 or Wi-Fi network communication. Control lighting remotely
  • 8 dry contact trigger ports
  • Clock and calendar with Sunrise/Sunset triggering
  • Easy Ethernet Integration
  • Including Power adapter

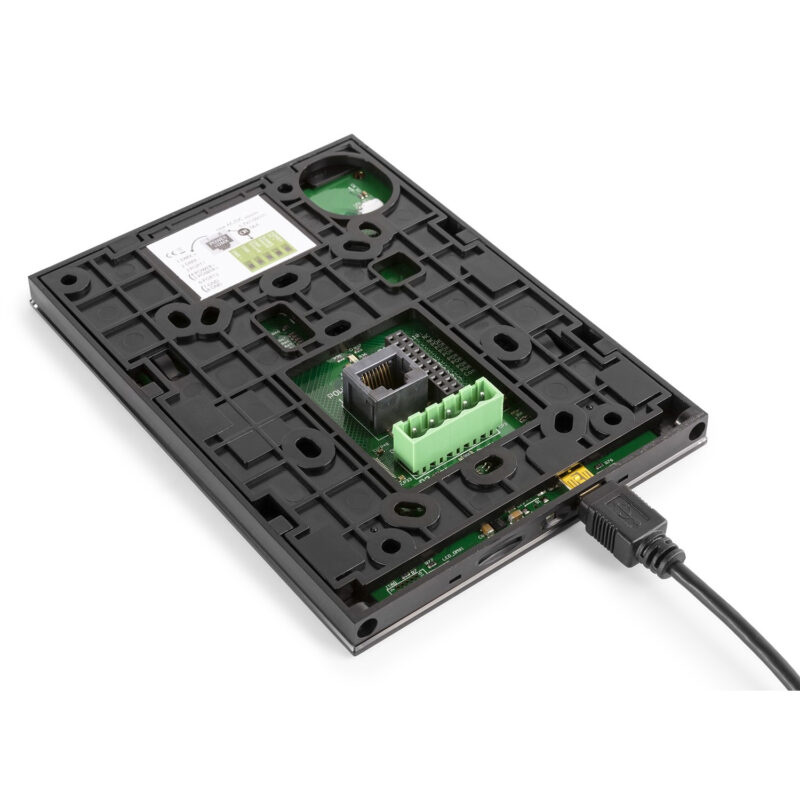

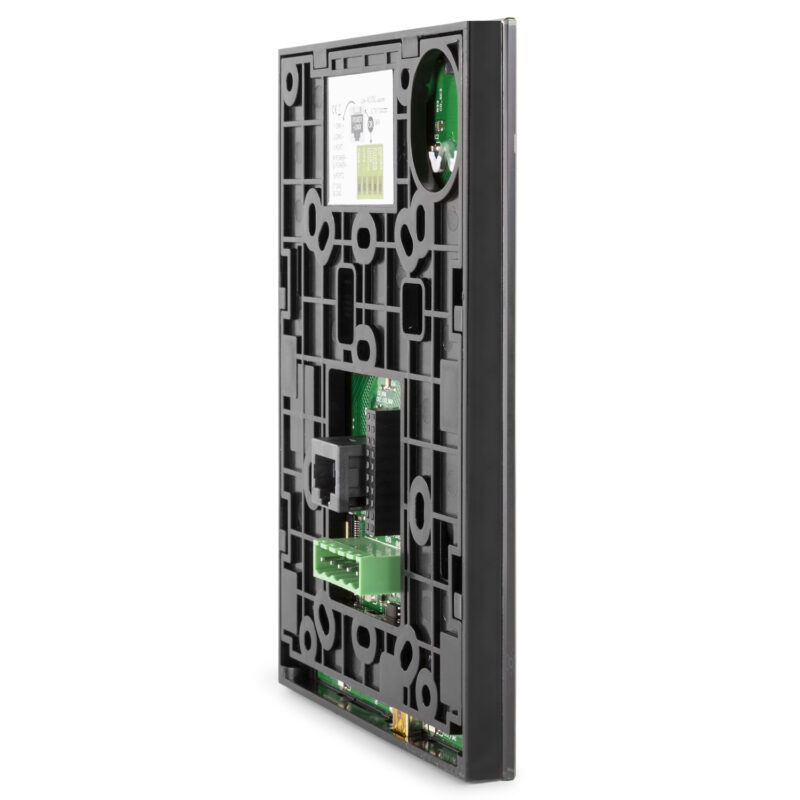

  • DMX connector: RJ45, PCB Terminal Block
  • Power supply: 100-240VAC 50/60Hz
  • Dimensions (L x W x H): 106 x 146 x 11mm
  • Weight: 0.2000
