BeamZ TP36 LED Par Uplighter for Triangle Truss


Key Features

  • LED uplighter for triangle truss
  • 3x 4W LEDs with 4-in-1 RGB-UV colour mixing
  • DMX controllable using 3, 4, or 8 DMX channels
  • Master/slave syncing with IEC power in/output
  • Auto and sound modes with adjustable speed
In Stock

Order by 5pm for next working day delivery

BeamZ TP36 LED Par Uplighter for Triangle Truss £89.99

Buy 2+ and save 3% at checkout

Free UK shipping on all orders over £30

  • 60 Day Easy Returns
  • 2 Year Extended Warranty
  • Design, Consulting and Installation Service
Safe & Secure Checkout

Payment Methods

The Beamz TP36 is a specialised LED uplighter, expertly designed to fit within triangle truss systems. This fixture is ideal for creating dramatic and immersive lighting effects in various settings, from stage wash lighting to wedding venue uplighting. The TP36’s unique design allows it to blend seamlessly into truss structures, providing an elegant and unobtrusive solution for enhancing the visual appeal of any space. Its compact form factor makes it especially suitable for venues where space is at a premium but impactful lighting is desired.

Equipped with 3x 4W LEDs, the TP36 offers 4-in-1 RGB-UV color mixing, enabling a broad spectrum of colours including ultraviolet. This feature allows for creating vibrant hues and unique effects, making the TP36 a versatile LED Wash Light. The addition of UV capabilities extends the fixture’s range, allowing for the creation of glowing atmospheres and adding an extra dimension to the lighting design. Whether it’s for a concert, a gala, or a wedding, the TP36’s colour mixing capability ensures that it can adapt to any mood or theme.

The Beamz TP36 is DMX controllable, offering flexibility with 3, 4, or 8 DMX channel options. This range of control options makes the TP36 a versatile choice for a variety of lighting needs. Whether it’s for simple setups requiring basic colour changes or more complex arrangements needing intricate control, the TP36’s DMX functionality provides the precision and adaptability needed for professional event uplighters.

This LED uplighter also features master/slave syncing capabilities, complemented by IEC power in/output for daisy-chaining multiple units. This functionality allows for the creation of coordinated lighting displays across multiple fixtures, ideal for larger venues or complex lighting setups. The master/slave feature is particularly beneficial for events where a unified lighting effect is essential, such as in stage wash lighting or wedding venue uplighting.

Additionally, the Beamz TP36 includes auto and sound modes with adjustable speed settings, offering a range of automated lighting options. The sound mode enables the light to react and synchronise with music, creating a dynamic and responsive experience perfect for live performances or parties. The adjustable speed setting allows for customisation of the lighting effects to match the tempo and mood of the event, making the TP36 a flexible and user-friendly option for various event uplighters.

Key Details

  • LED uplighter for triangle truss, fitting perfectly within tight spaces
  • 3x 4W LEDs with 4-in-1 RGB-UV colour mixing to achieve a variety of hues
  • DMX controllable using 3, 4, or 8 DMX channels for custom colours and shows
  • Master/slave syncing with IEC power in/output to daisy-chain multiple fixtures
  • Auto and sound modes with adjustable speed for plug-and-play usage

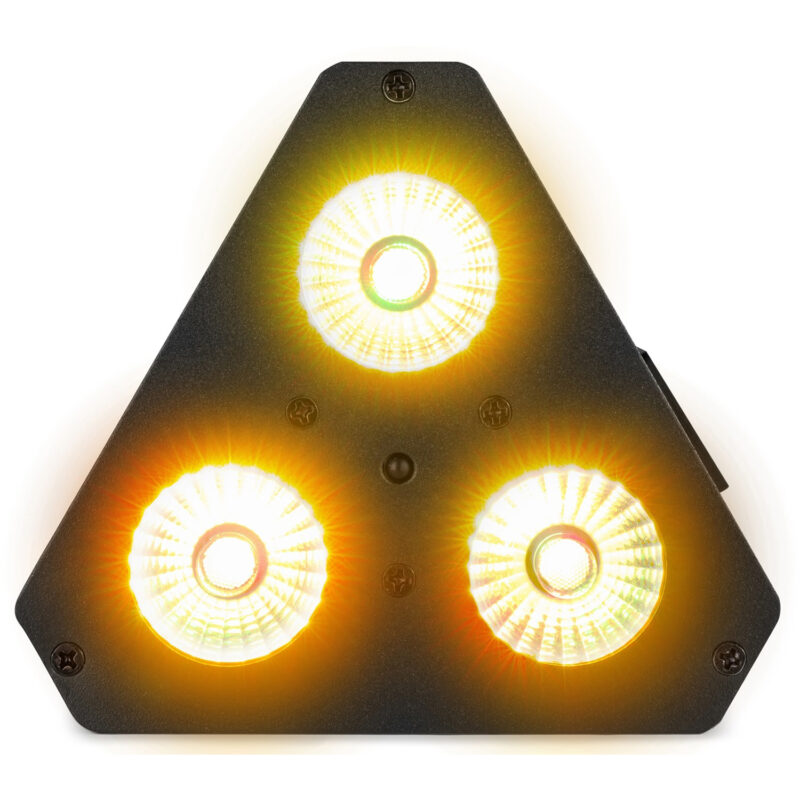

  • 3 x 4W 4-in-1 LEDs
  • RGB-UV Colour mixing
  • 3, 4-1, 4 or 8 DMX channels
  • DMX and Stand-alone mode
  • 0-100% Electronic Dimmer
  • Compact design easily fits inside of TRUSS
  • Master/Slave function

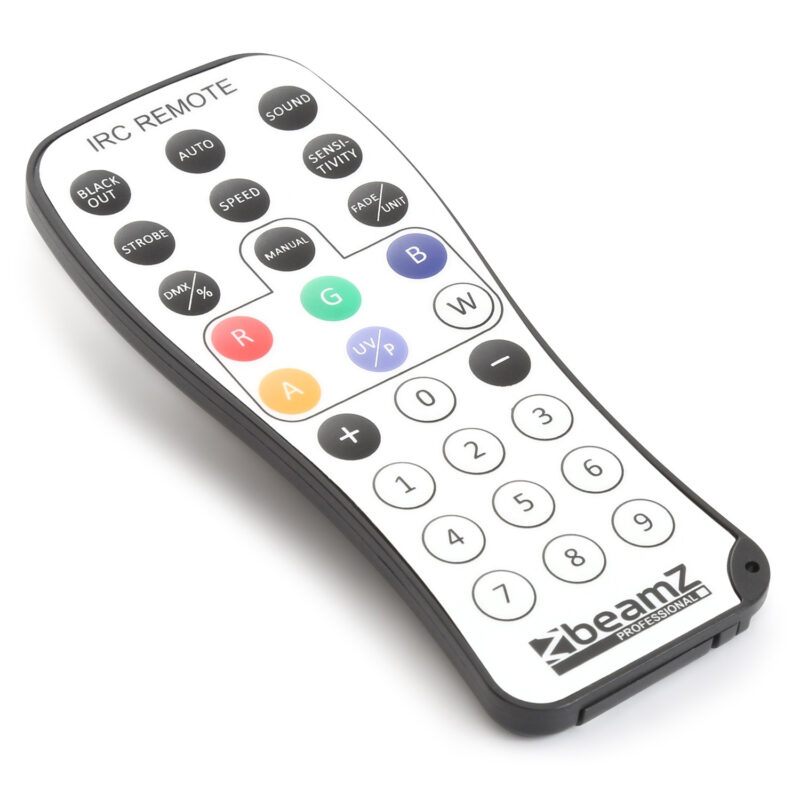

  • IR remote control

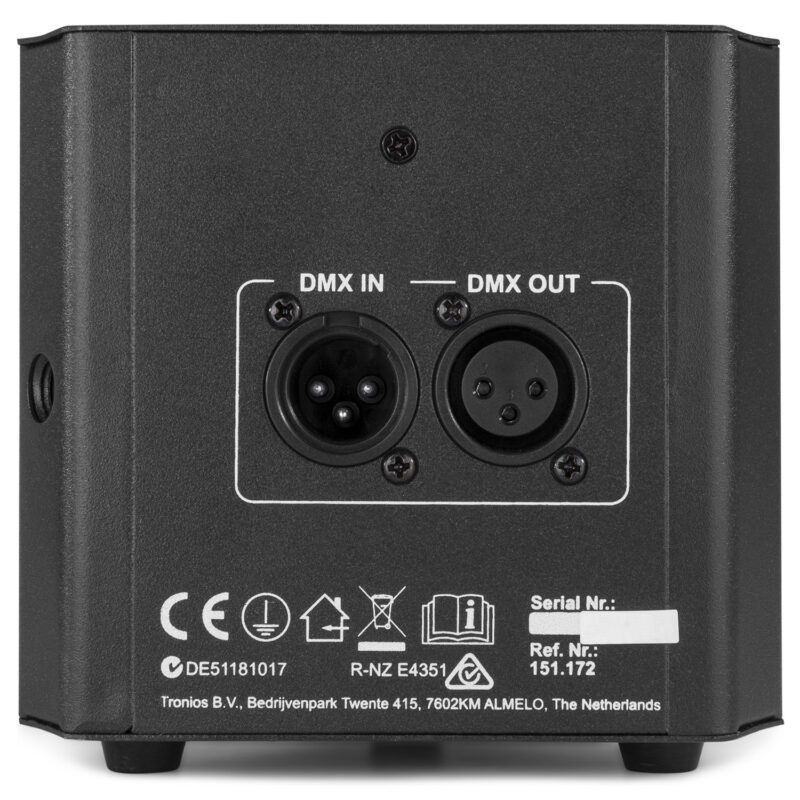

  • DMX in/output via 3-pin
  • Pre programmed shows
  • Sound activated with adjustable sensitivity
  • Auto mode with adjustable speed

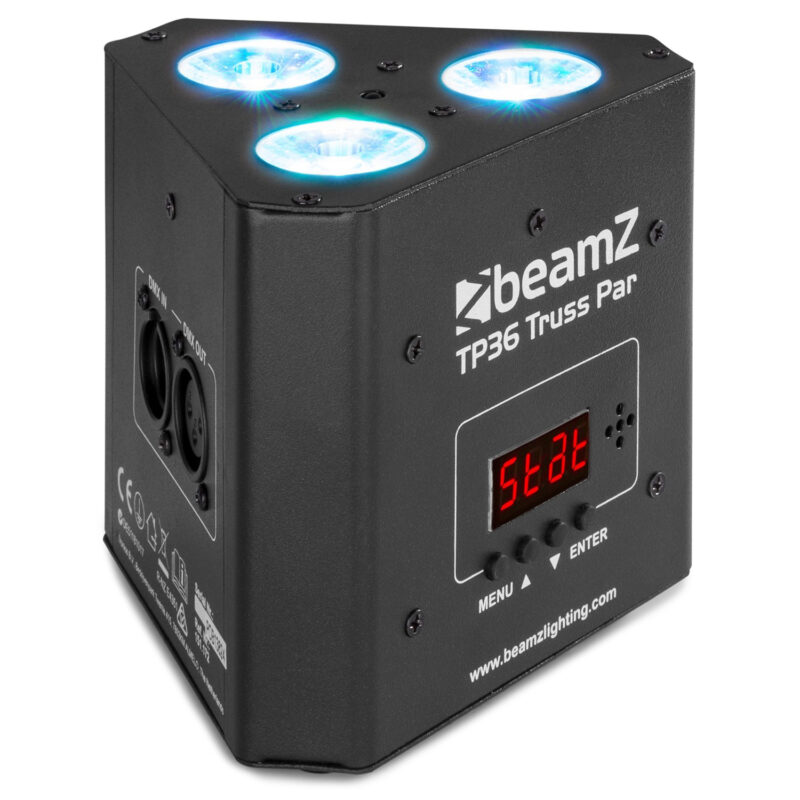

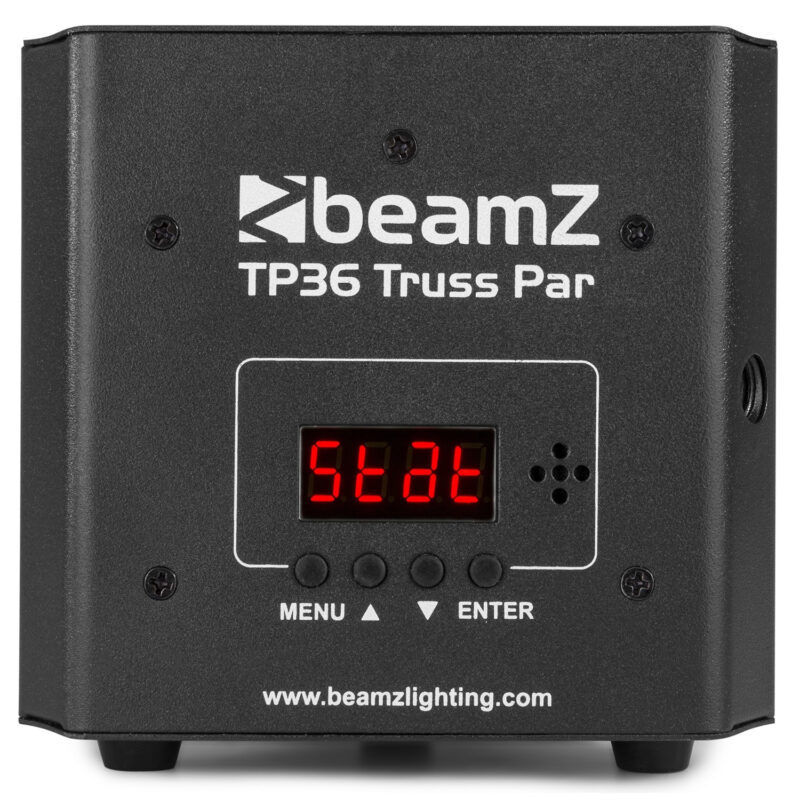

  • Control panel with LED display

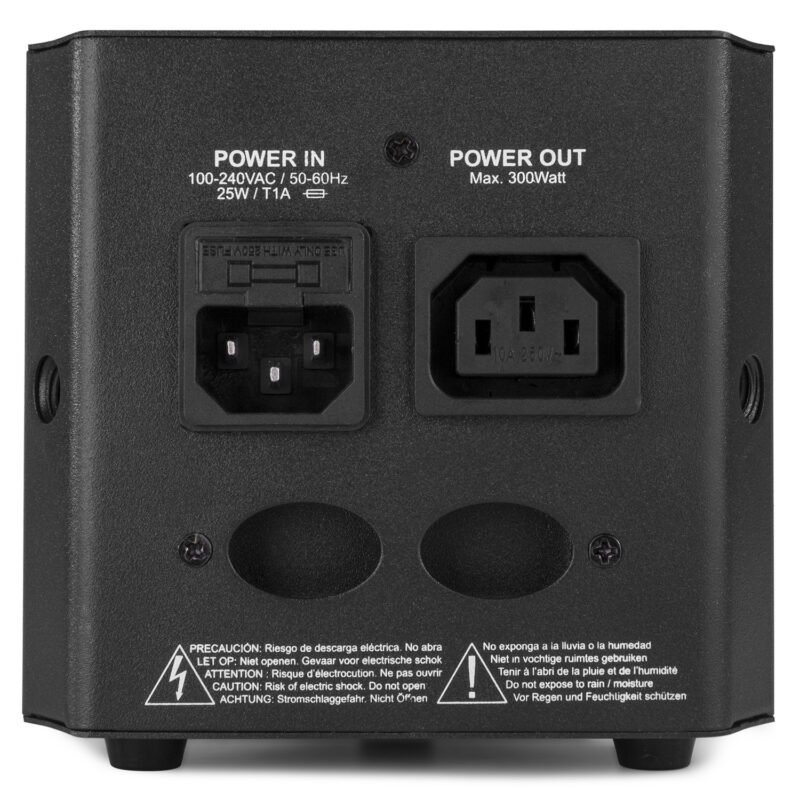

  • IEC-connector input/output


  • Beam angle: 19 degree
  • Field angle: 37 degree
  • Number of colours: 4
  • Colours: RGB-UV
  • Number of LEDs: 3 x 4W
  • Flash rate per second: 1 - 20Hz
  • DMX channels: 3, 4-1, 4 or 8
  • DMX connection: 3-pin XLR
  • Mode: DMX, Auto, Sound active, Master-Slave and IRC
  • Power supply: 100-240VAC / 50-60Hz
  • Consumption: 25W
  • Display: LED
  • Dimensions: 122 x 108 x 117mm
  • Weight: 0.7kg
  • MPN: 151.172
