PD Connex CX06-15 15m Combined Power and DMX Cable

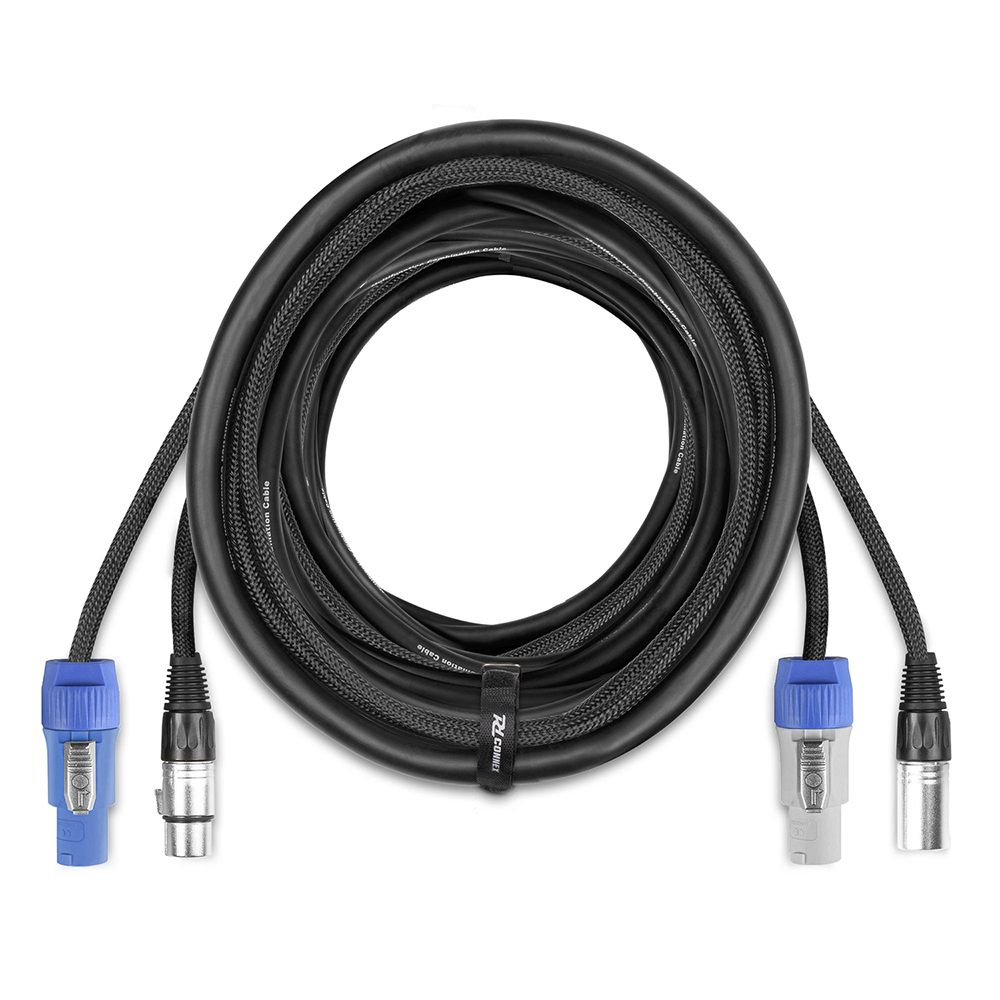

The PD Connex CX06-15 is made for linking compatible lighting fixtures while carrying DMX control and power together. It uses 3-pin XLR and Powerconnector A/B ends in one flexible black cable.
Technical Specifications
| Cable type | DMX lighting-control combi cable |
| Characteristic impedance | 120 ohm (DMX cable) |
| Cable length | 15m |
| Colour | Black |
| IP Rating | N/A |

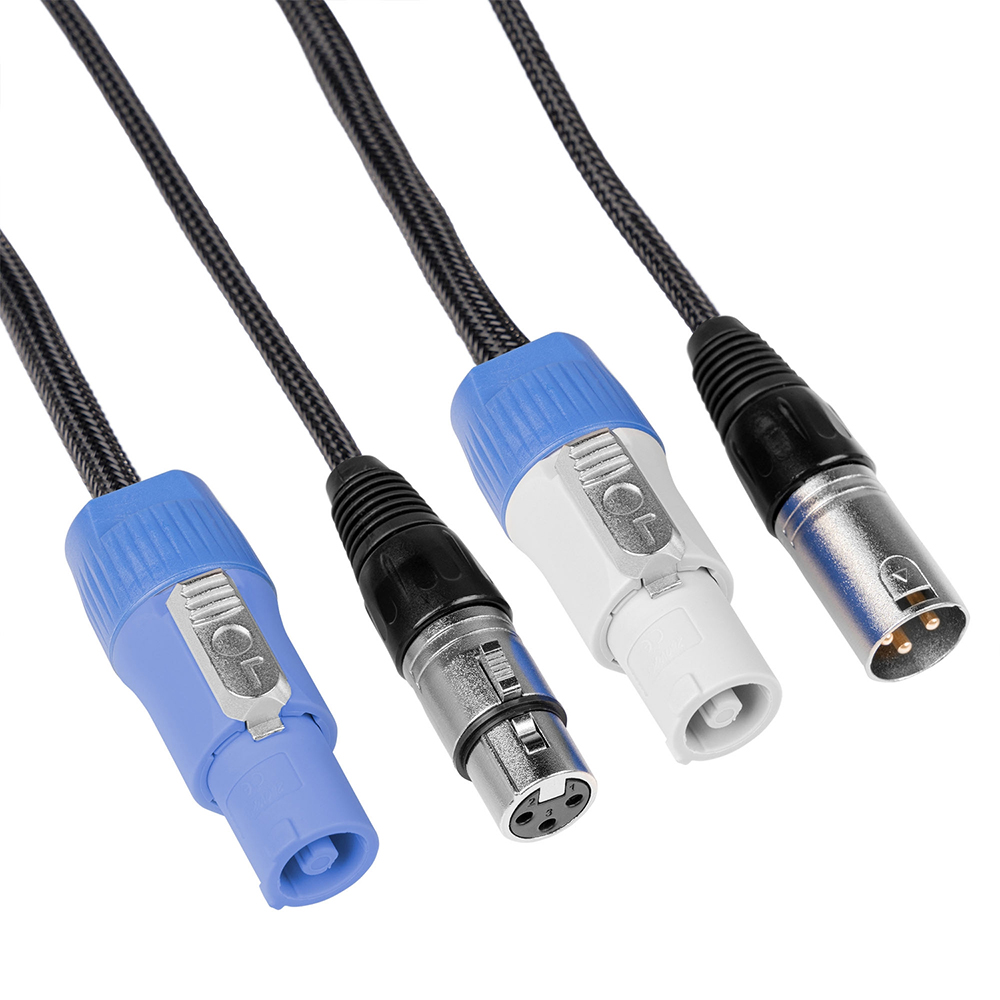

| Connector A | Powerconnector and 3-pin XLR male |
| Connector B | Powerconnector and 3-pin XLR female |
| Conductor size | 3x 1.5mm-squared power cable; 8×0.2mm signal conductor (DMX cable) |
| Shielding | 64×0.08mm braided shielding (DMX cable) |
| Outer jacket material | PVC/PTFE braid |
| Cable outer diameter | 10.8mm |
| Connector material | Metal, plastic |
| Cable flexibility | Flexible |
| Suitable for | DMX controllers, lighting fixtures, moving heads, LED effects, wall washers and DMX interfaces |
| Use environment | Indoor stage, Venue |
| Warranty | 2 years |
Ideal For
- Mobile DJ lighting rigs using compatible DMX fixtures
- Event production setups with repeated fixture links
- Venue lighting where neat cable routing is preferred
- Theatre stages using moving heads and LED effects
- Permanent or temporary indoor wall washer installations
Compatibility and Useful Information
This cable is intended for lighting systems that use 3-pin DMX data and Powerconnector A/B power linking. It is a 3 pin DMX cable with a combined power section, so it should be selected for compatible lighting fixtures rather than general audio connections. The DMX power cable design reduces the number of separate leads needed between fixtures, which is handy across truss, stage edges and venue installs. If your setup calls for a DMX and power cable, this 15m Powercon DMX cable style lead provides a practical route between moving heads, LED effects, wall washers and DMX interfaces. A dependable DMX cable for lighting when the connector format matches your equipment.
