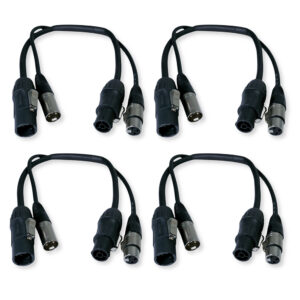

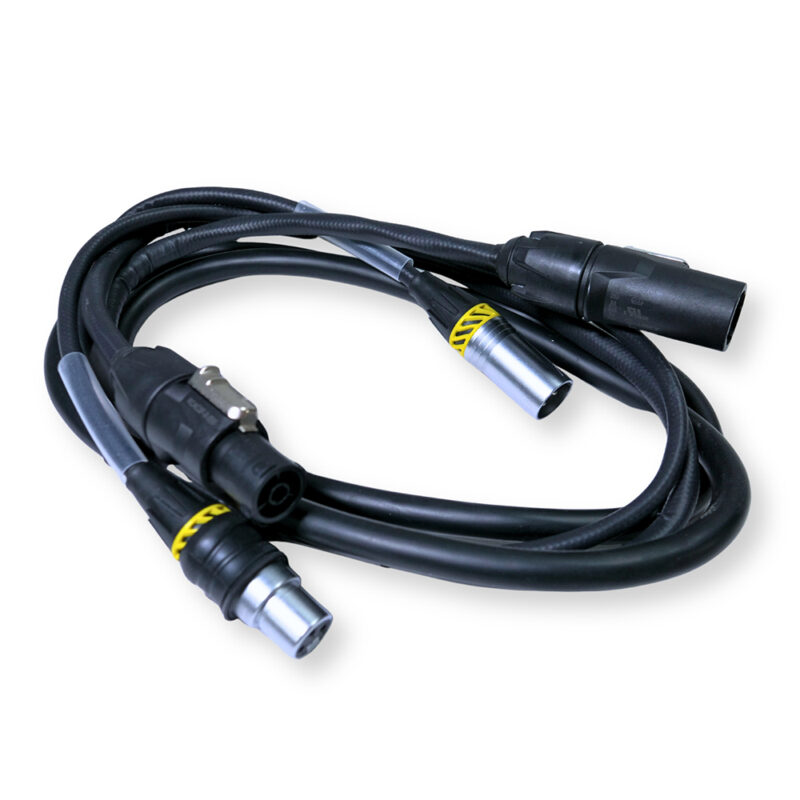

PD Connex CX07-2 Combined Power and DMX Cable
The PD Connex CX07-2 is a 2m combi cable for lighting control and power linking, pairing 3-pin XLR DMX connectors with Powerconnector TR ends for compatible stage and event fixtures.
Technical Specifications
| Cable type | DMX lighting-control combi cable |
| Characteristic impedance | 120 ohm (DMX cable) |
| Cable length | 2m |
| Colour | Black |
| IP Rating | IP65 |
| Connector A | 3-Pin XLR female/powerconnector TR A |
| Connector B | 3-Pin XLR male/Powerconnector TR B |
| Conductor size | 8×0.2mm (DMX cable) |
| Shielding | 64×0.08mm braided shielding (DMX cable) |
| Outer jacket material | PVC/PTFE braid |
| Cable outer diameter | 10.8mm |
| Connector material | N/A |
| Cable flexibility | Flexible |
| Suitable for | DMX controllers, lighting fixtures, splitters and interfaces |
| Use environment | Outdoor, Stage, Touring |
| Warranty | 2 years |
Ideal For
- Daisy-chaining compatible lighting fixtures across a truss
- Connecting moving heads that use 3-pin DMX and TR power fittings
- Lighting hire stock needing compact, clearly routed fixture leads
- Theatre and venue rigs where neat cable management matters
- AV installers working with DMX controllers, fixtures and interfaces
Compatibility and Useful Information
This cable is best chosen when the fixture requires both a 3 pin DMX cable connection and matching Powerconnector TR power links. It is a combined DMX power cable, so one lead carries the two required connection paths between compatible units. That makes it helpful for customers looking for a DMX and power cable to reduce cable clutter in lighting rigs. If your specification calls it a Powercon DMX cable, compare the connector shape and A/B orientation with your equipment first. For DMX controllers, splitters, interfaces and lighting fixtures, it is a dedicated DMX cable for lighting with 120 ohm DMX impedance and braided shielding.
