IEC and 3-Pin DMX Cable for Lighting Fixtures

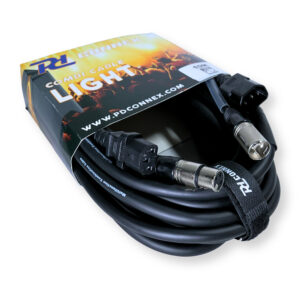

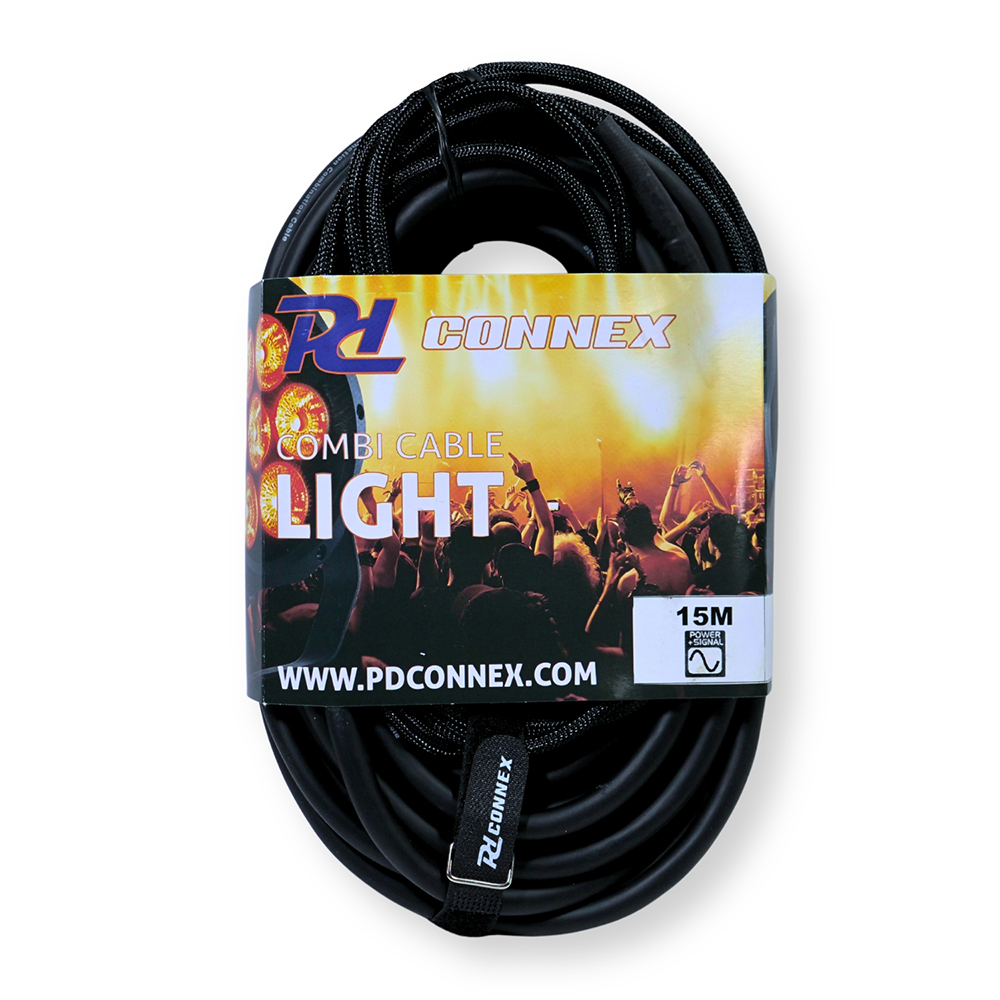

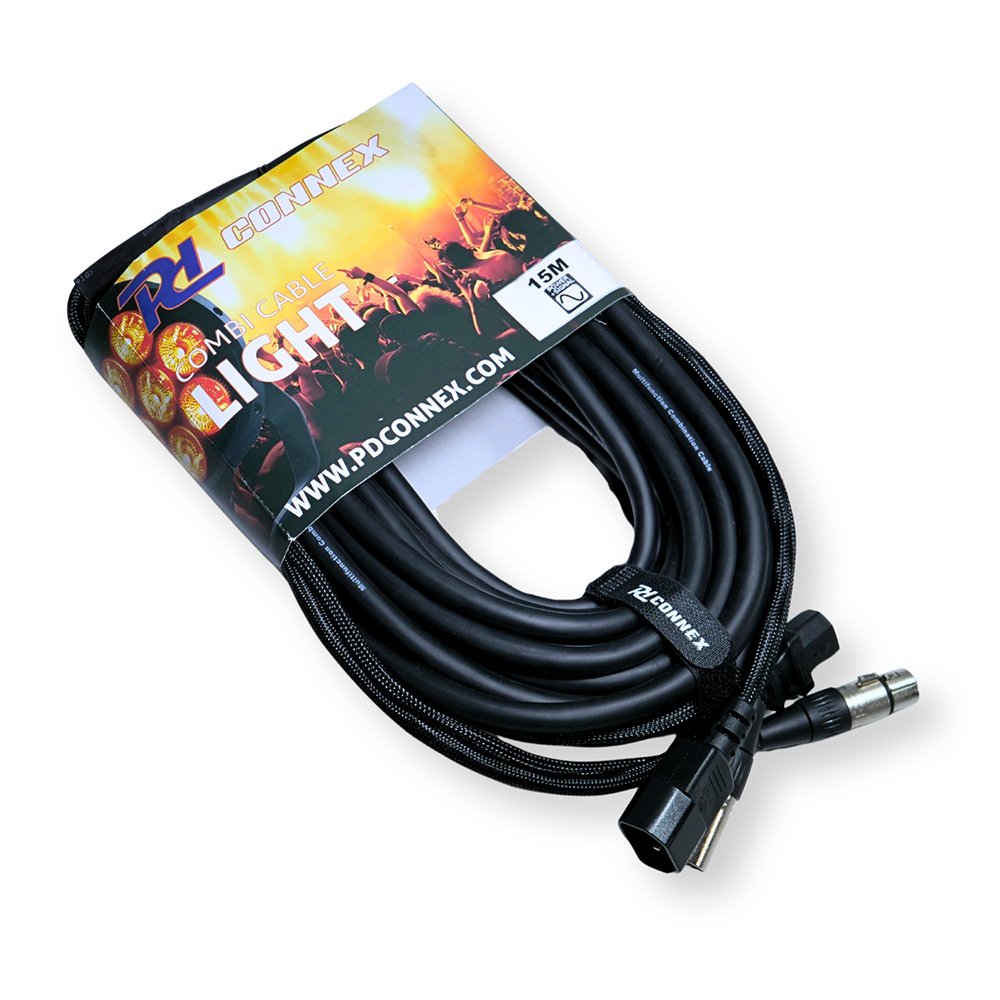

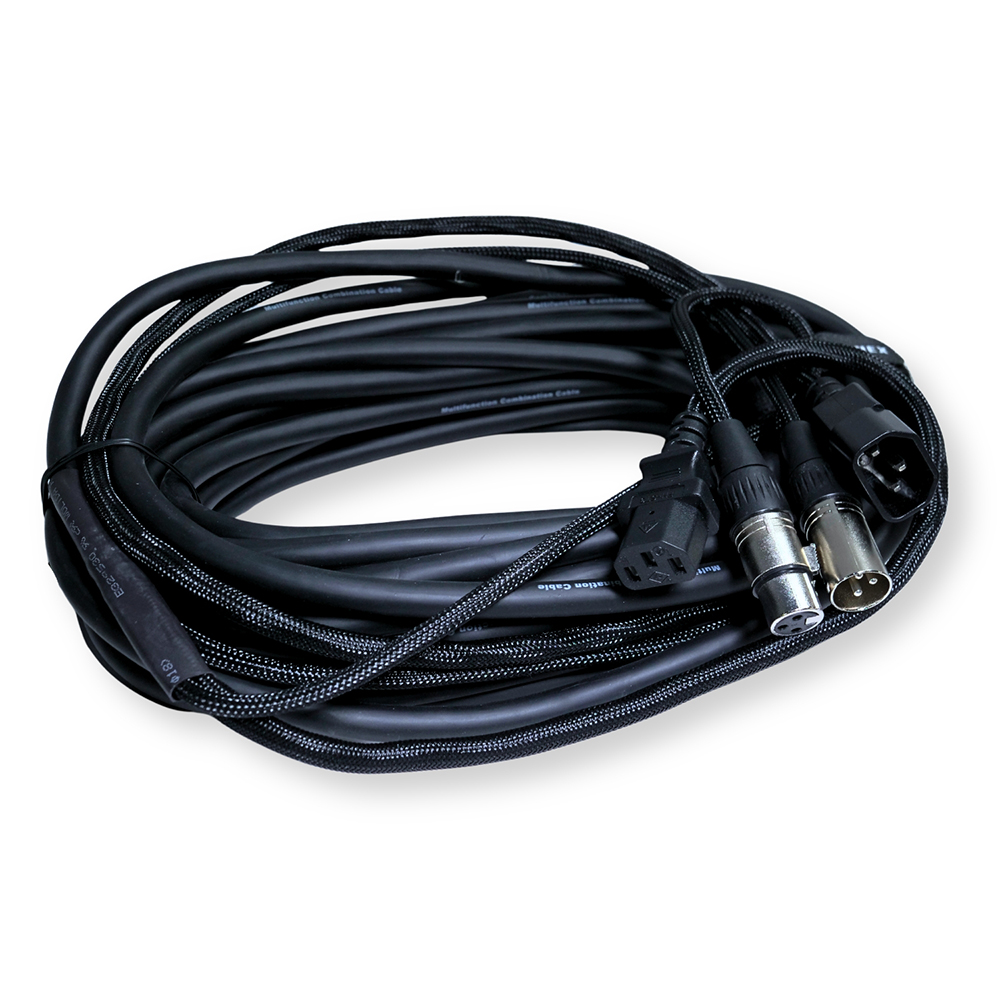

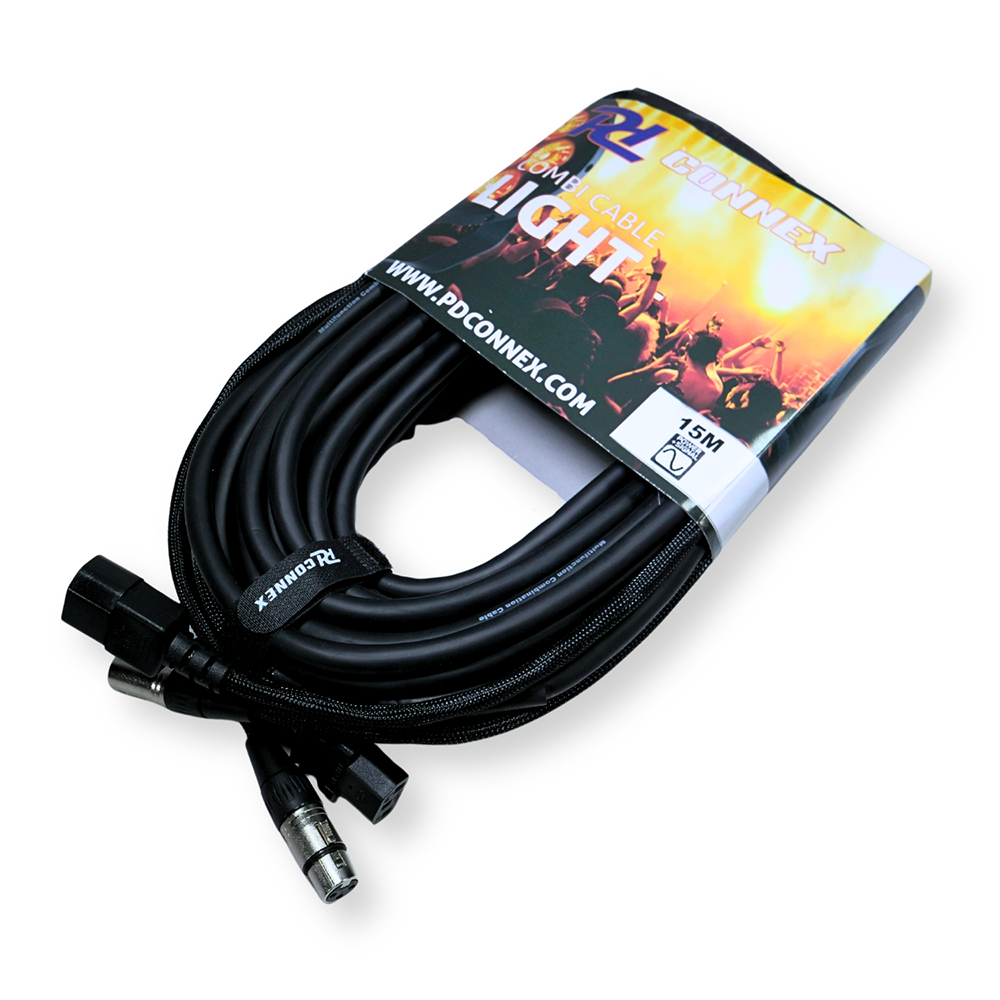

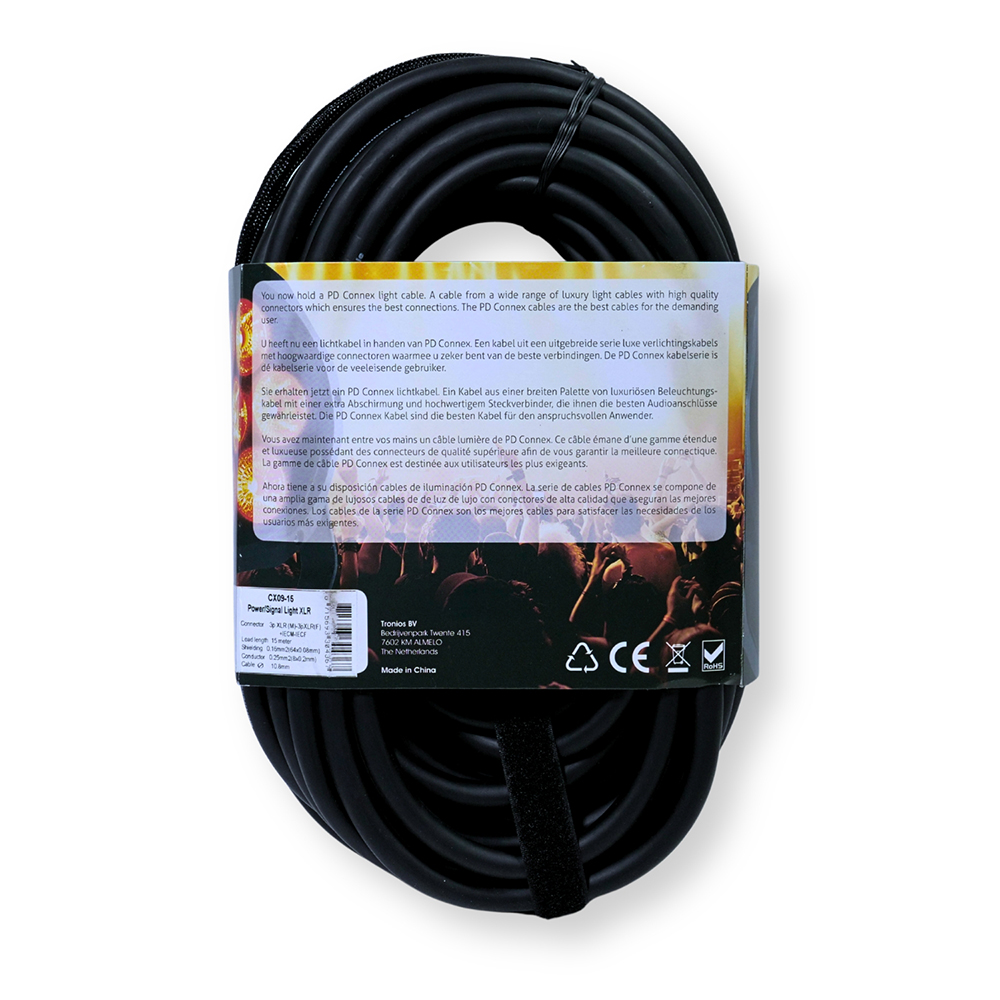

The PD Connex CX09-15 is a 15m combination cable designed to carry power and DMX control to compatible lighting fixtures in a single cable run, with IEC connectors for power and 3-pin XLR connectors for the DMX signal.
Technical Specifications
| Cable type | DMX lighting-control combi cable |
| Characteristic impedance | 120ohm (DMX Cable) |
| Cable length | 15m |
| Colour | Black |
| IP Rating | N/A |

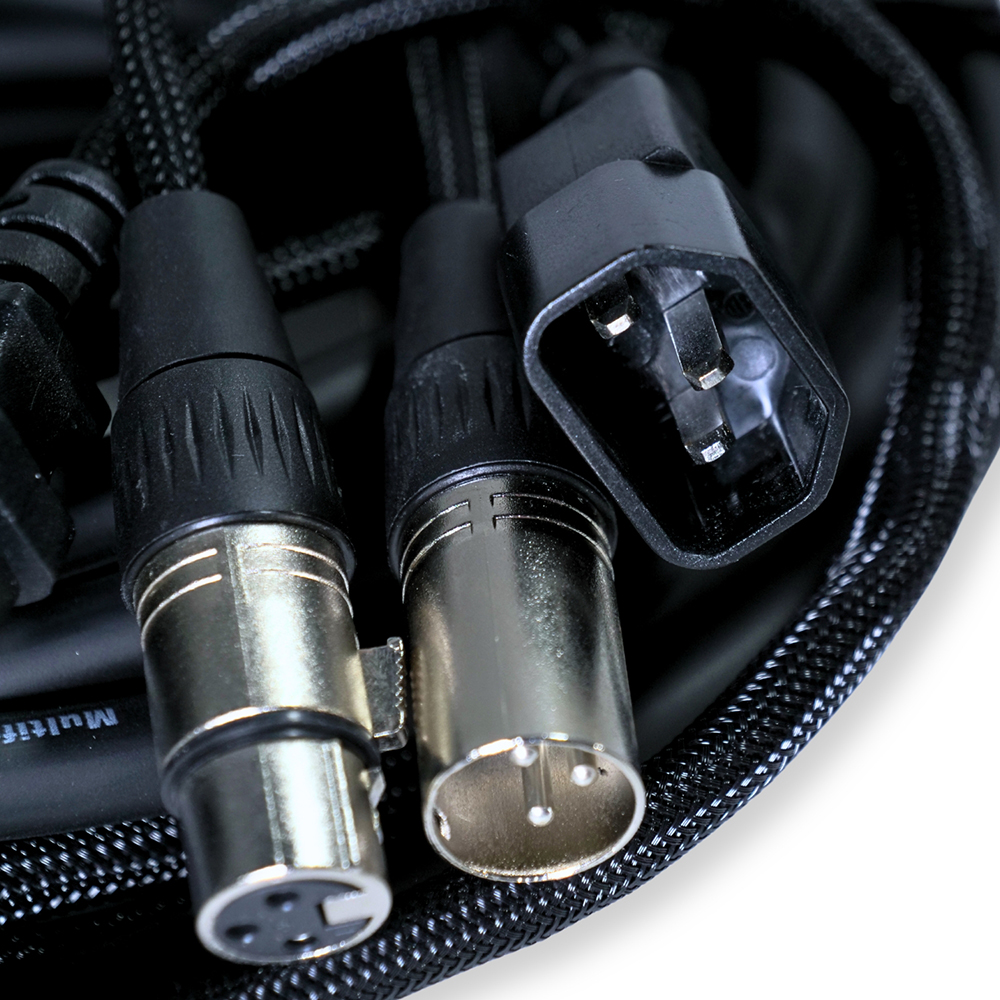

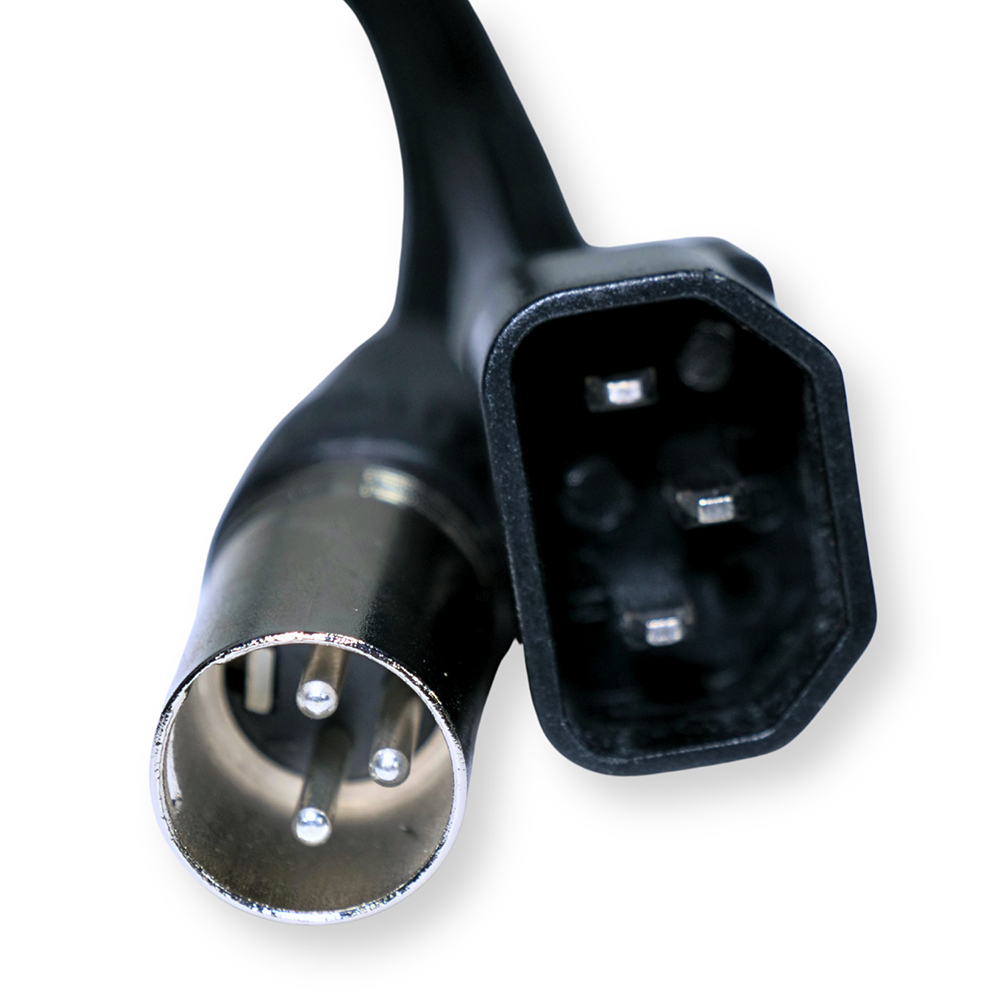

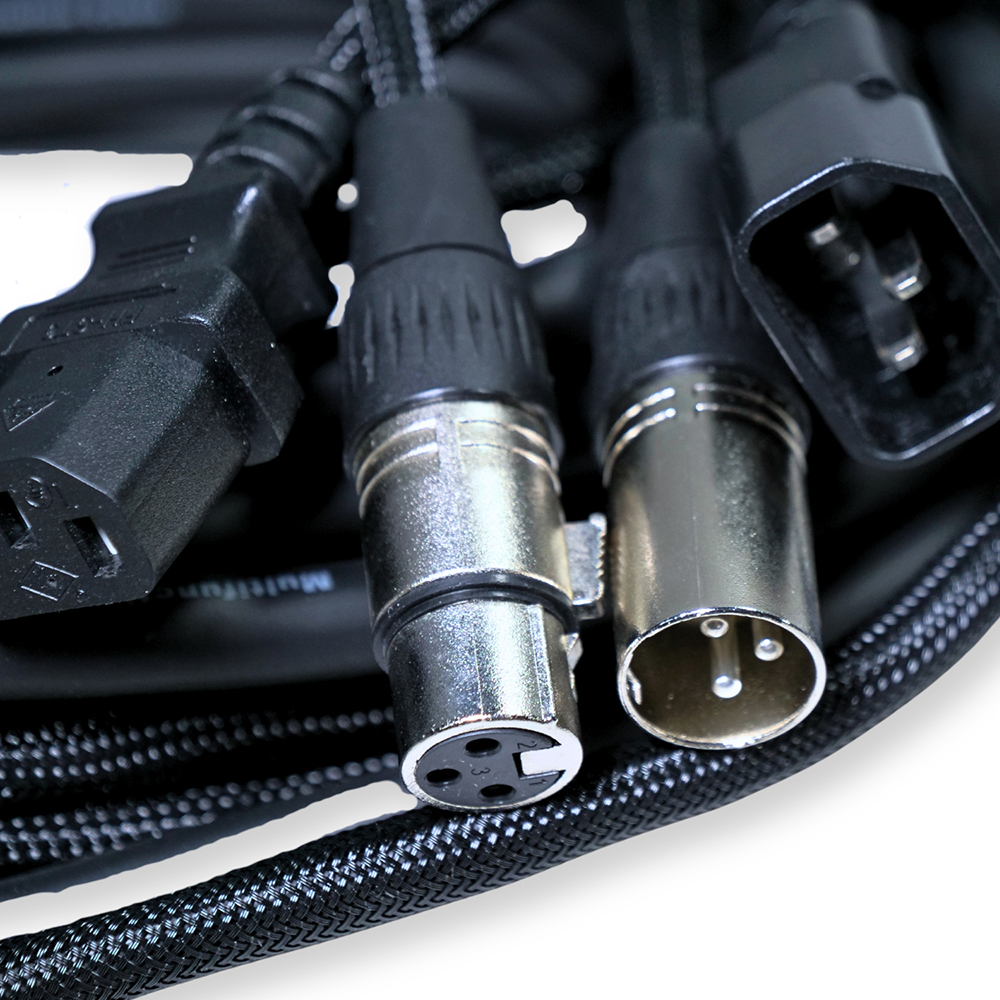

| Connector A | 3-pin XLR male/IEC male |

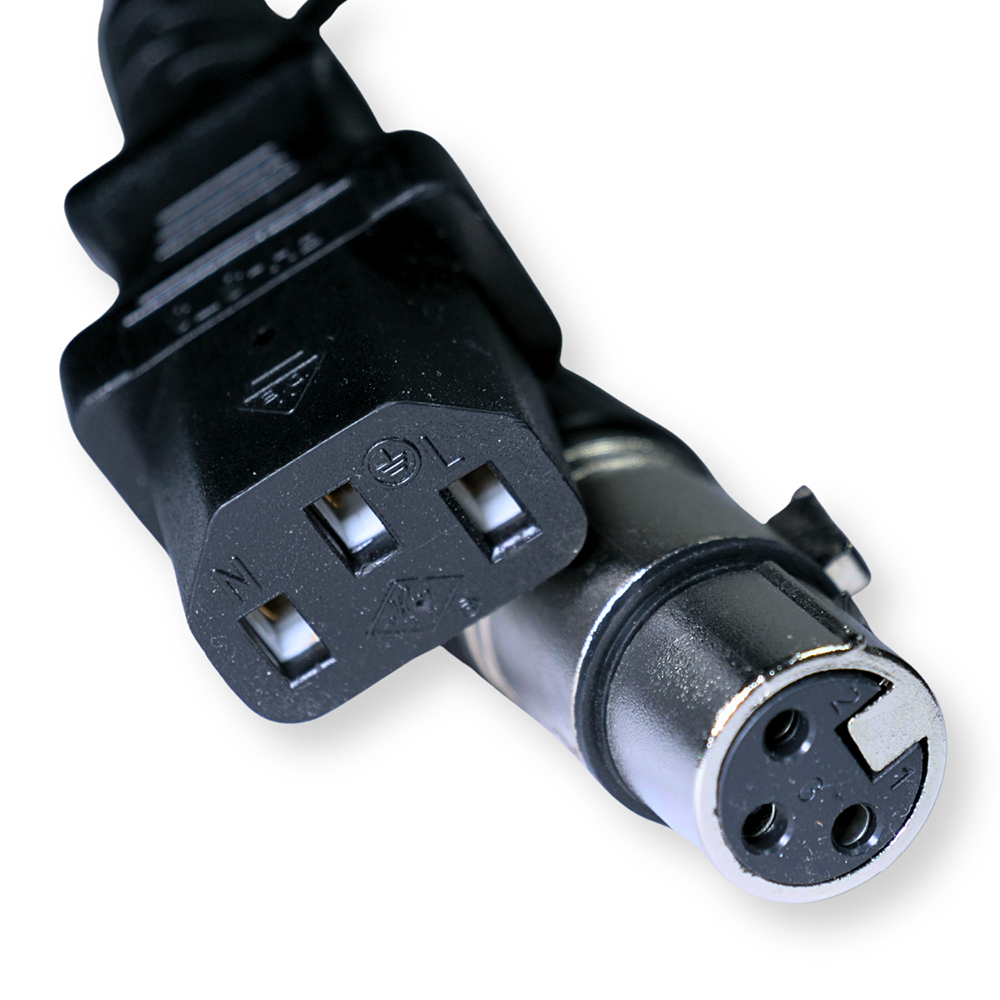

| Connector B | 3-pin XLR female/IEC female |
| Conductor size | 3x 1.50mm² power conductors; 8×0.2mm signal conductors |
| Shielding | 64×0.08mm (DMX cable) |
| Outer jacket material | PVC/PTFE braid |
| Cable outer diameter | 10.8mm |
| Connector material | Metal/Plastic |
| Cable flexibility | Flexible |
| Suitable for | DMX lighting fixtures, LED effects, moving heads and wall washers |
| Use environment | Indoor stage, Venue |
| Warranty | 2 years |
Ideal For
- Bands and DJs setting up compact lighting cable runs
- LED lighting effects operated from a DMX desk or controller
- Moving head fixtures using 3-pin DMX and IEC power connections
- Indoor wall washer installations in entertainment venues
- Rental setups where combined power and signal cabling reduces packing
Compatibility & Useful Information
This cable is intended for DMX lighting equipment fitted with 3-pin XLR control connections and IEC power connectors. As it uses 3-pin DMX, check the connections on your fixtures before ordering if your setup requires 5-pin DMX. The combined design provides a practical DMX power cable for linking compatible fixtures, while the 120ohm DMX specification is suited to lighting-control signals rather than standard audio connections. This is not a PowerCON DMX cable, so fixtures requiring PowerCON power connections will need a different cable type. For IEC-equipped lighting, it provides a convenient DMX cable for stages, venues and event setups.
