Outdoor-Ready DMX Cable Combi Lead for Stage Lighting

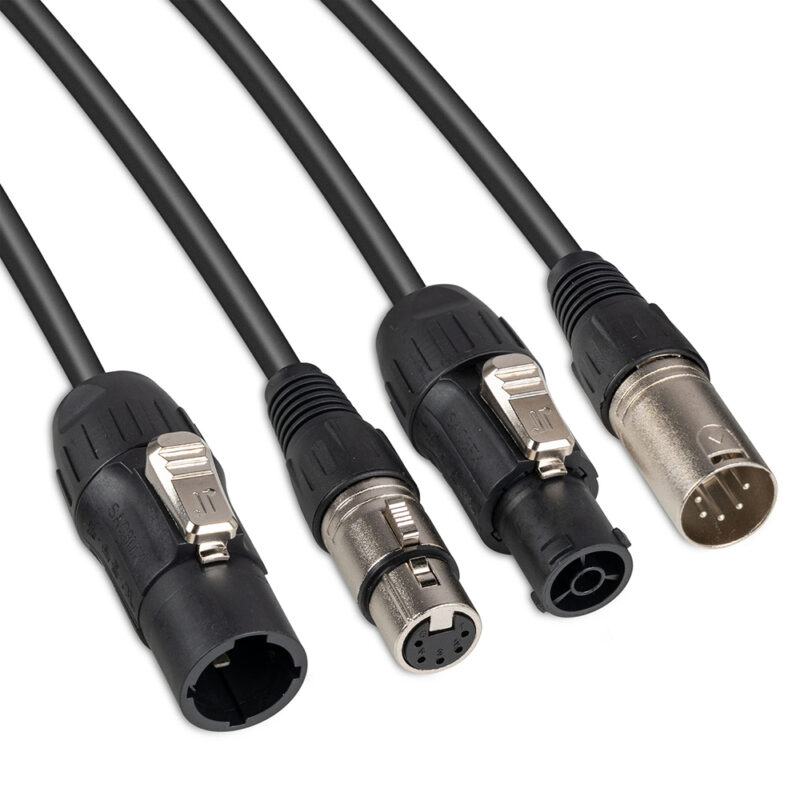

The PD Connex CX13-15 is a 15m lighting combi cable for compatible fixtures, combining 5-pin DMX signal and mains power into one flexible black cable.
Technical Specifications
| Cable type | DMX lighting-control combi cable |
| Characteristic impedance | 120 ohm (DMX cable) |
| Cable length | 15m |
| Colour | Black |
| IP Rating | IP65 |
| Connector A | 5-pin XLR female/Powerconnector TR A |
| Connector B | 5-pin XLR male/Powerconnector TR B |
| Conductor size | 3x 1.5mm² power cable; 8×0.2mm signal conductors |
| Shielding | 64×0.08mm (DMX cable) |
| Outer jacket material | PVC/PTFE braid |
| Cable outer diameter | 10.8mm |
| Connector material | Metal |
| Cable flexibility | Flexible |
| Suitable for | DMX controllers, lighting fixtures, moving heads, LED effects and wall washers |
| Use environment | Outdoor |
| Warranty | 2 years |
Ideal For
- Moving head runs where control and power follow the same route
- LED effects rigs needing tidy fixture-to-fixture cabling
- Wall washer installations across stages, venues and events
- Touring productions that need organised cable layouts
- AV installers working with compatible 5-pin DMX fixtures
Compatibility & Useful Information
Use this 5 Pin DMX Cable with compatible lighting fixtures, DMX controllers, moving heads, LED effects and wall washers that match its connector configuration. The cable has a 5-pin XLR female/Powerconnector TR A end and a 5-pin XLR male/Powerconnector TR B end, so checking fixture connections before purchase is important. As a combined DMX power cable, it helps simplify runs where both mains and control are required. For supported rigs, this DMX and power cable is a practical PowerCon DMX cable and a clean-choice DMX cable for lighting across temporary and installed systems.
