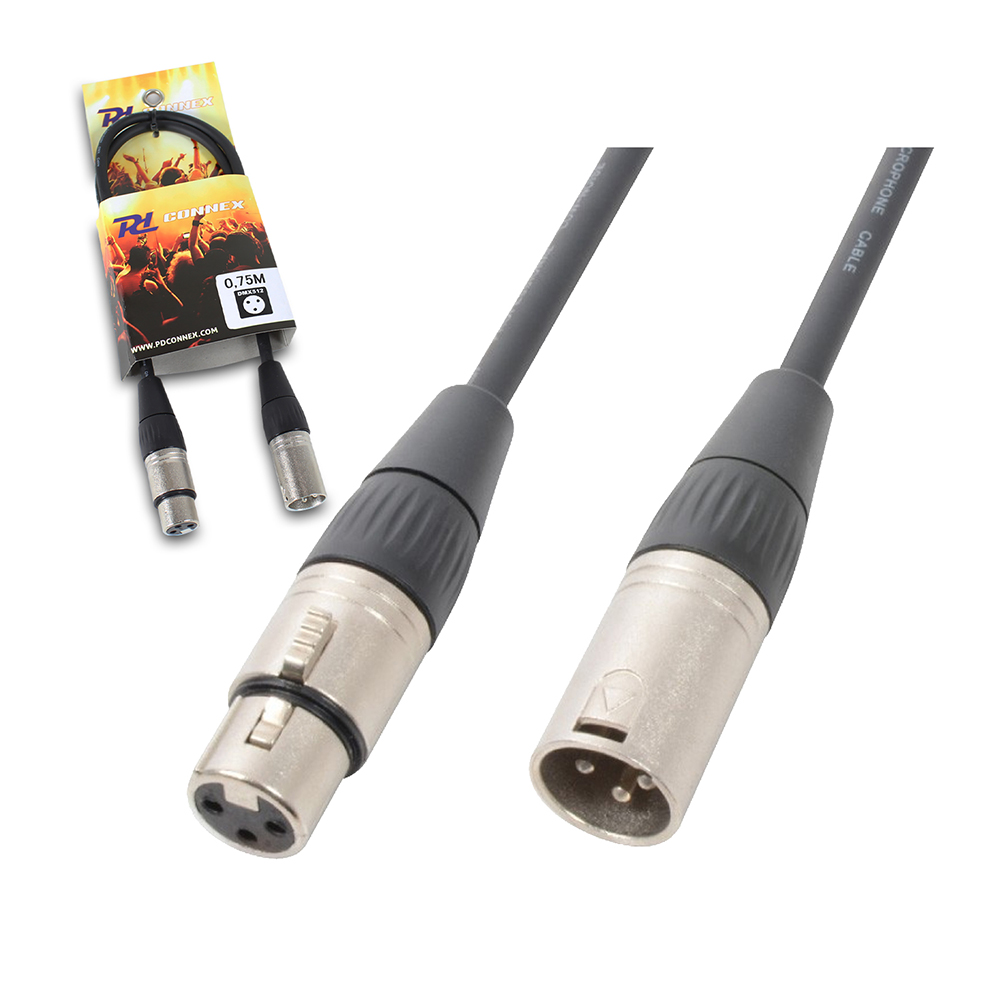

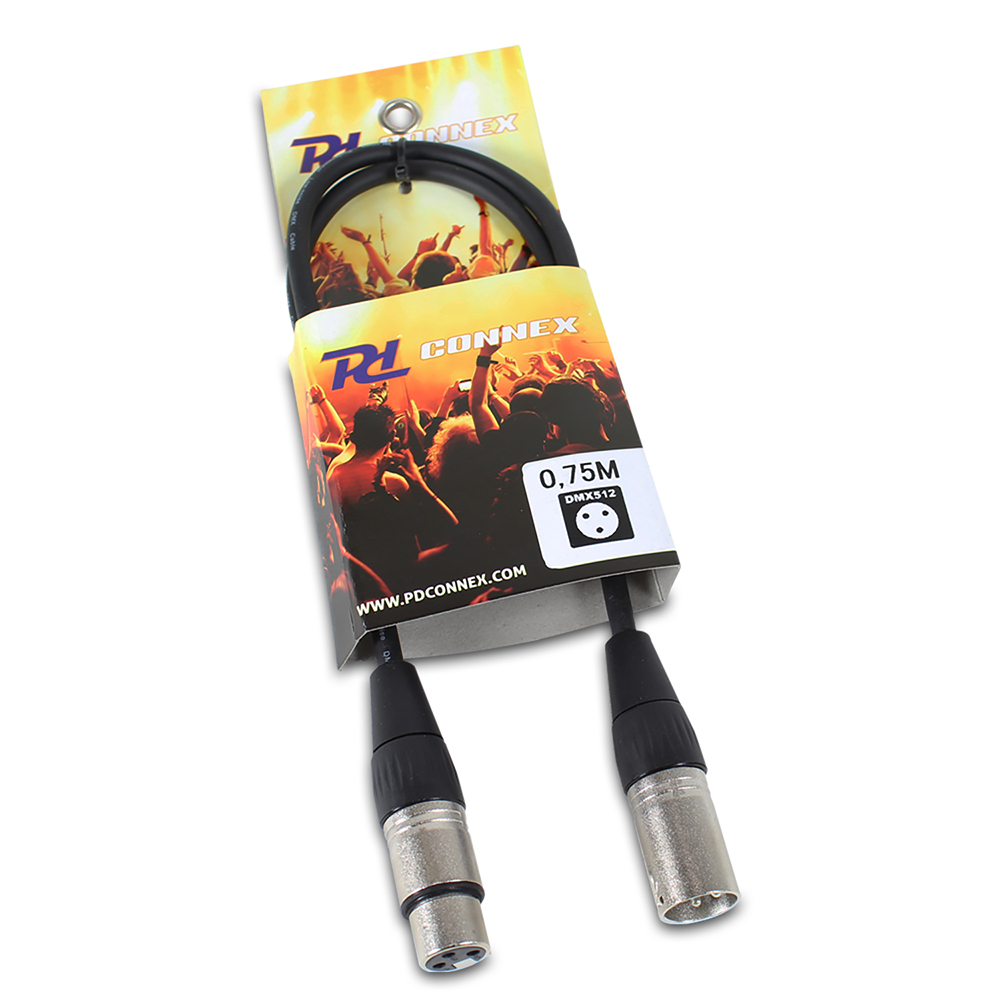

PD Connex CX100-0.7 0.75m DMX Cable Twin Pack
A pair of PD Connex CX100-0.7 short 3-pin XLR DMX leads for clean lighting-control connections between nearby fixtures, controllers, splitters, interfaces and terminators in indoor stage and venue systems.
Technical Specifications
| Cable type | DMX lighting-control cable |
| Characteristic impedance | 120 ohm |
| Cable length | 0.75m |
| Colour | Black |
| IP Rating | N/A |
| Connector A | 3-pin XLR male |
| Connector B | 3-pin XLR female |
| Conductor size | 28×0.1mm |
| Shielding | 60×0.1mm |
| Outer jacket material | Flexible PVC |
| Cable outer diameter | 6mm |
| Connector material | Metal |
| Cable flexibility | Flexible |
| Suitable for | DMX controllers, lighting fixtures, splitters, interfaces and terminators |
| Use environment | Indoor stage, Venue |
| Warranty | 2 years |
Ideal For
- Short DMX links across truss, bars or lighting stands
- Fixture-to-fixture patching in mobile DJ lighting rigs
- Connecting compatible LED PAR cans, wash lights and effects
- Indoor stage, venue and theatre lighting-control networks
- Keeping spare DMX patch leads ready for hire and production use
Compatibility & Useful Information

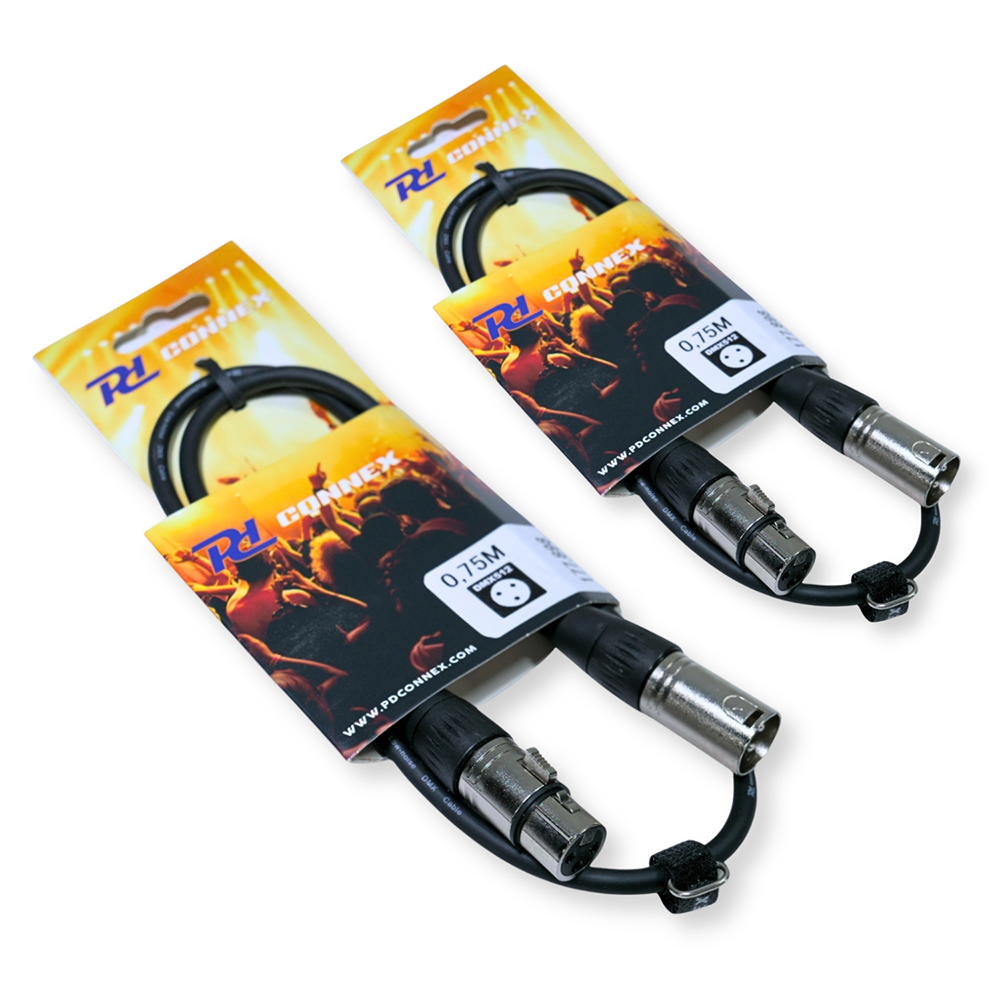

This package contains two separate 0.75m cables. Each DMX lighting cable uses 3-pin XLR male to 3-pin XLR female connectors, so check that your controller, fixture or splitter uses the same 3-pin format. As a 120-ohm DMX wire, it is made for lighting-control data rather than standard microphone audio use. It is a practical DMX XLR option when you need a short XLR for DMX connection between nearby devices using 3-pin DMX.
