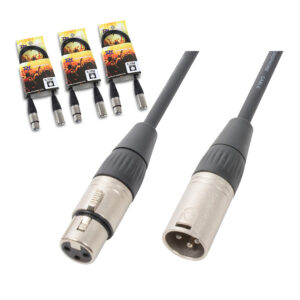

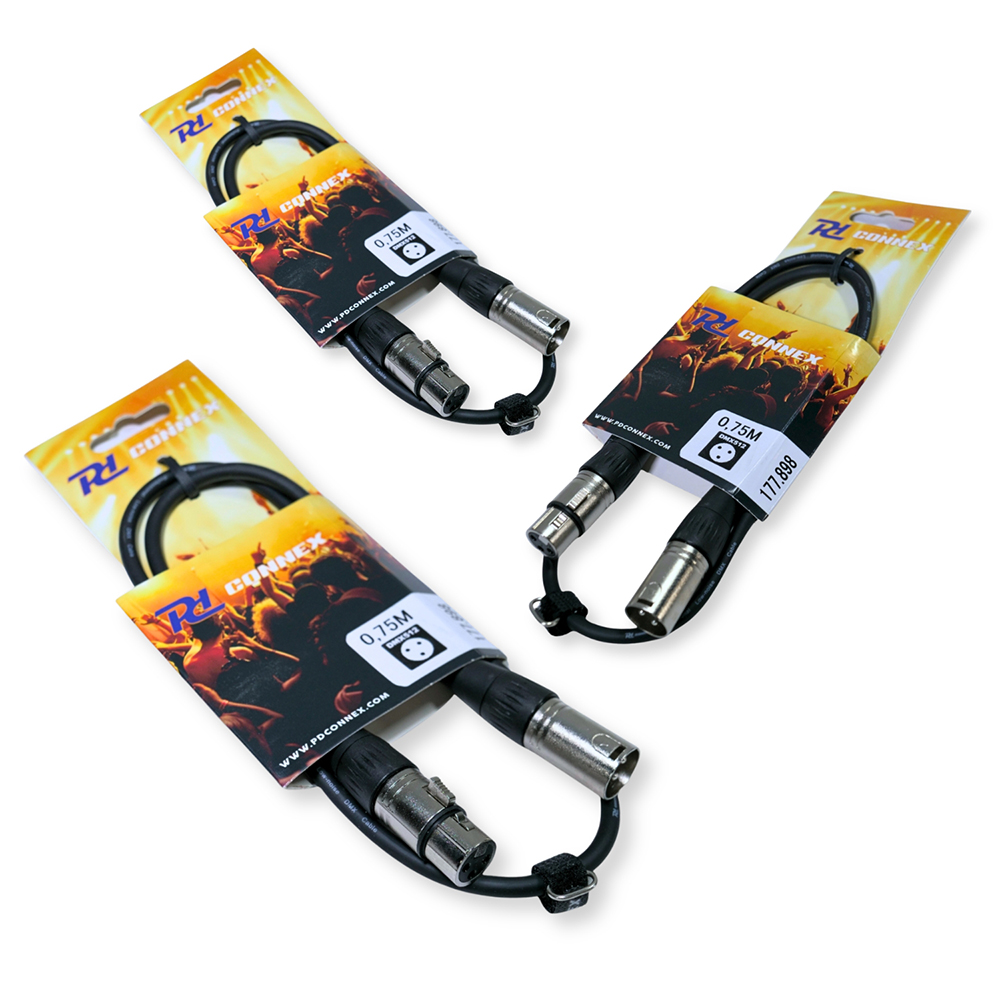

3x PD Connex CX100-0.7 0.75m DMX Cable Set
Supplied as a set of three matching PD Connex CX100-0.7 0.75m DMX leads, these cables are made for short 3-pin XLR lighting-control links between compatible controllers, fixtures and DMX accessories.
Technical Specifications
| Cable type | DMX lighting-control cable |
| Characteristic impedance | 120 ohm |
| Cable length | 0.75m |
| Colour | Black |
| IP Rating | N/A |
| Connector A | 3-pin XLR male |
| Connector B | 3-pin XLR female |
| Conductor size | 28×0.1mm |
| Shielding | 60×0.1mm |
| Outer jacket material | Flexible PVC |
| Cable outer diameter | 6mm |
| Connector material | Metal |
| Cable flexibility | Flexible |
| Suitable for | DMX controllers, lighting fixtures, splitters, interfaces and terminators |
| Use environment | Indoor stage, Venue |
| Warranty | 2 years |
Ideal For
- Fixture-to-fixture DMX links where units are mounted close together
- DMX controllers, lighting fixtures, splitters and interfaces
- Short patch cabling in theatre and venue lighting systems
- Compact moving head, LED PAR can and wash light arrangements
- Indoor stage rigs used by DJs, technicians and AV installers
Compatibility & Useful Information
Each lead in this pack is a 0.75m DMX lighting cable with 3-pin XLR male and female connectors, so it is intended for compatible DMX lighting-control equipment rather than ordinary audio-only cabling. It is a practical choice when you need short DMX XLR patch leads between fixtures or from a nearby controller to the first unit. The supplied specification confirms 120 ohm impedance, 60×0.1mm shielding and flexible PVC construction, making this DMX wire suitable as XLR for DMX in an indoor 3-pin DMX lighting chain.
