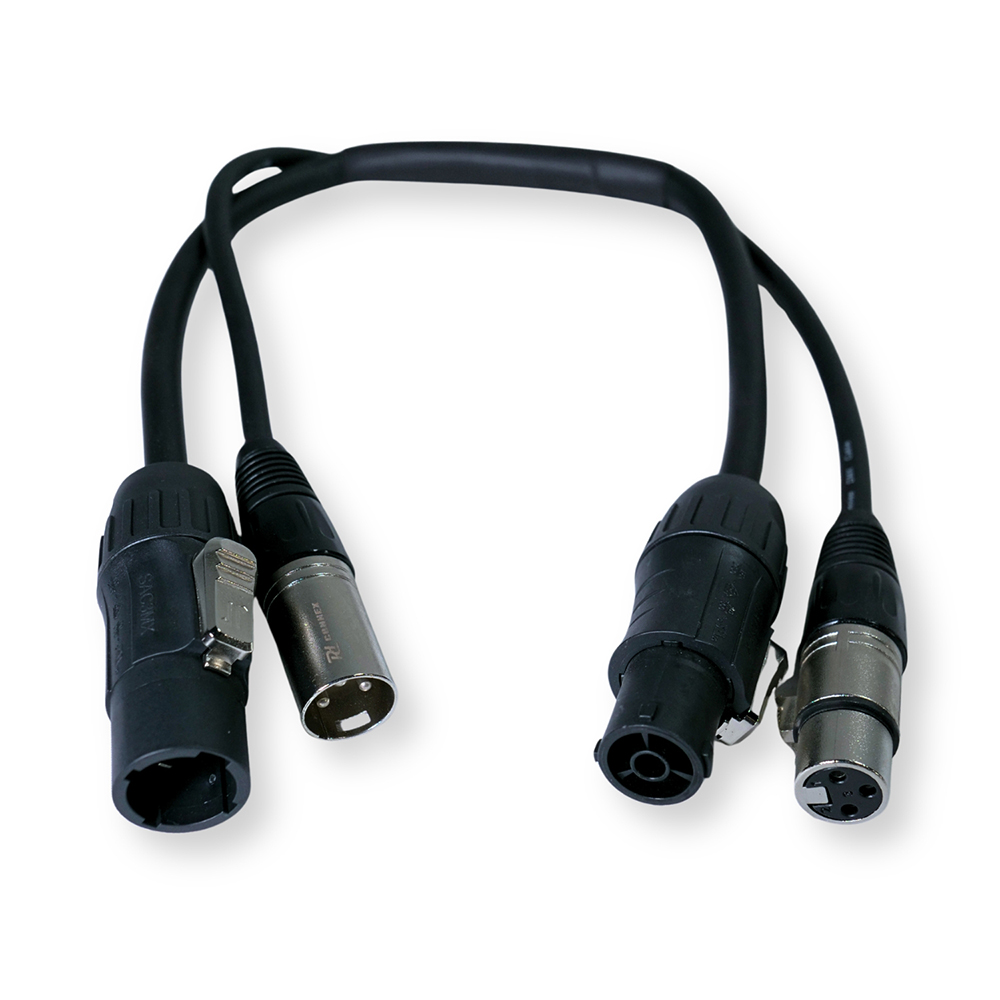

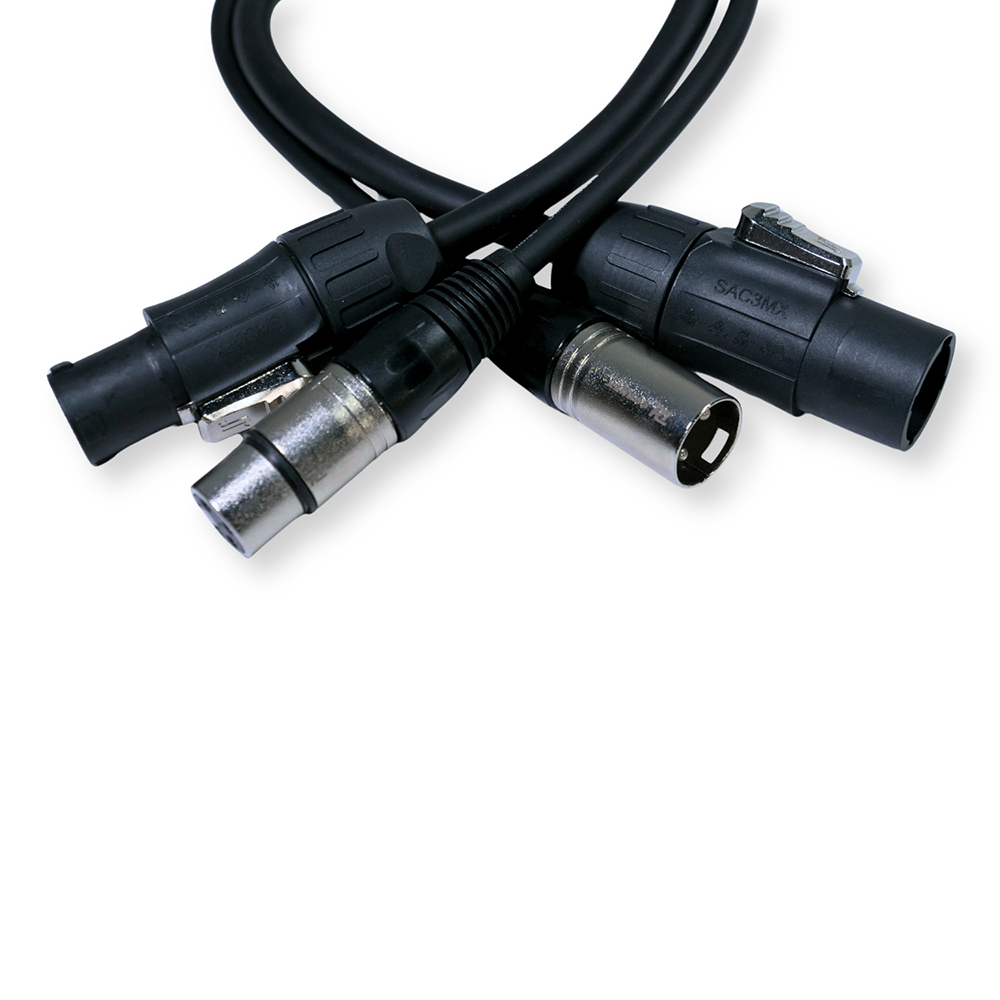

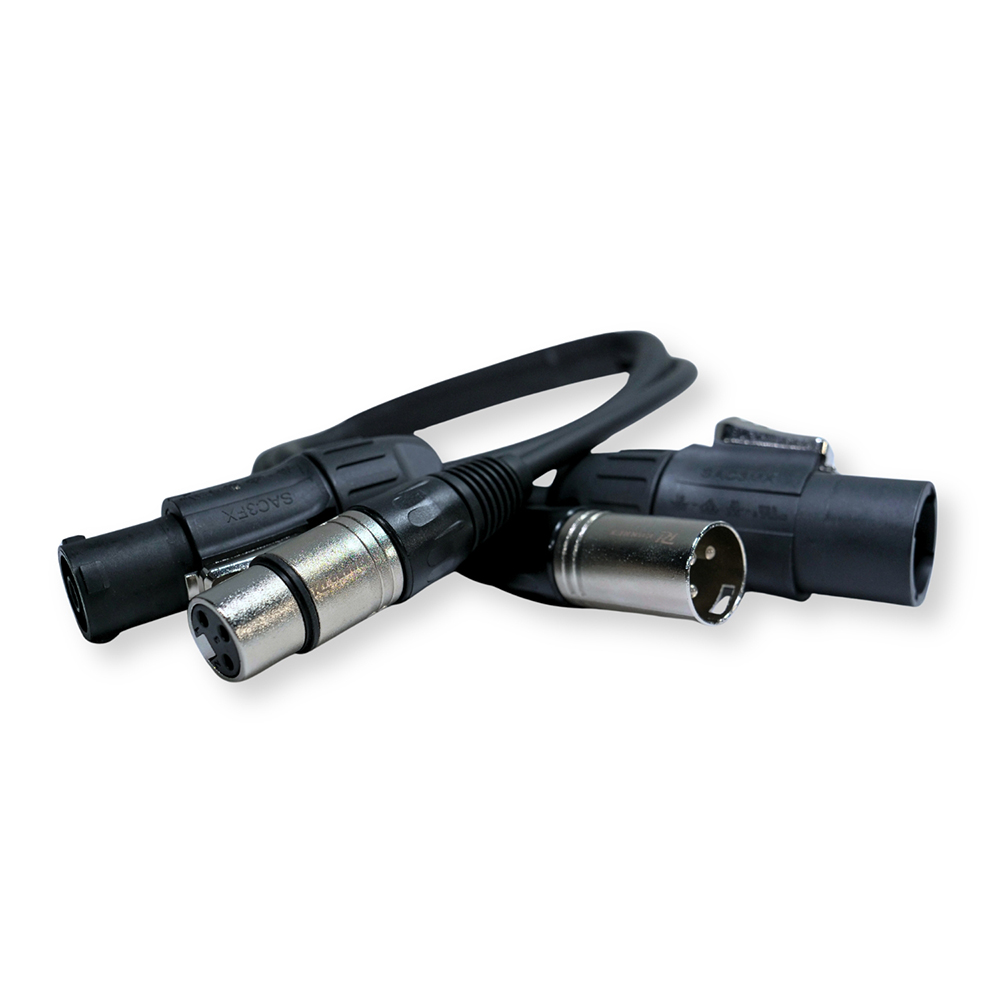

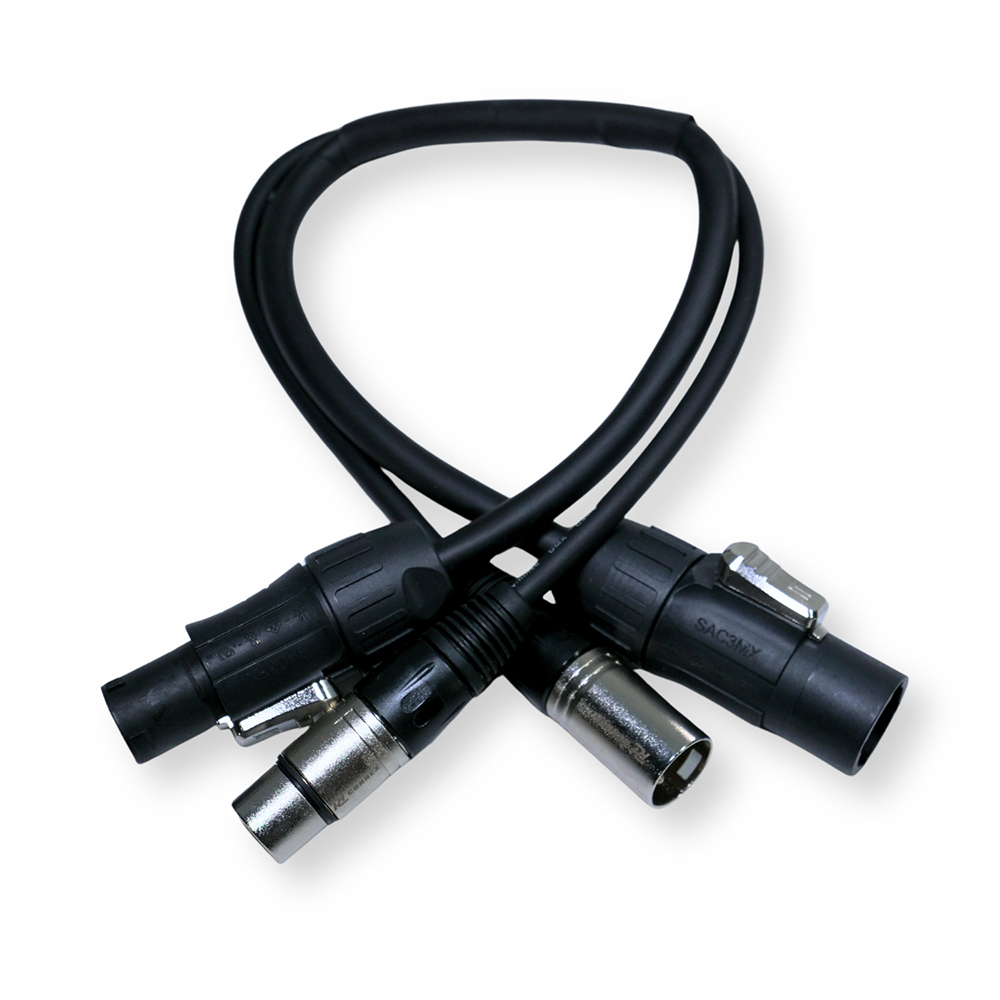

2x PD Connex CX07-0.50 0.5m DMX Cable and Power Combi Leads

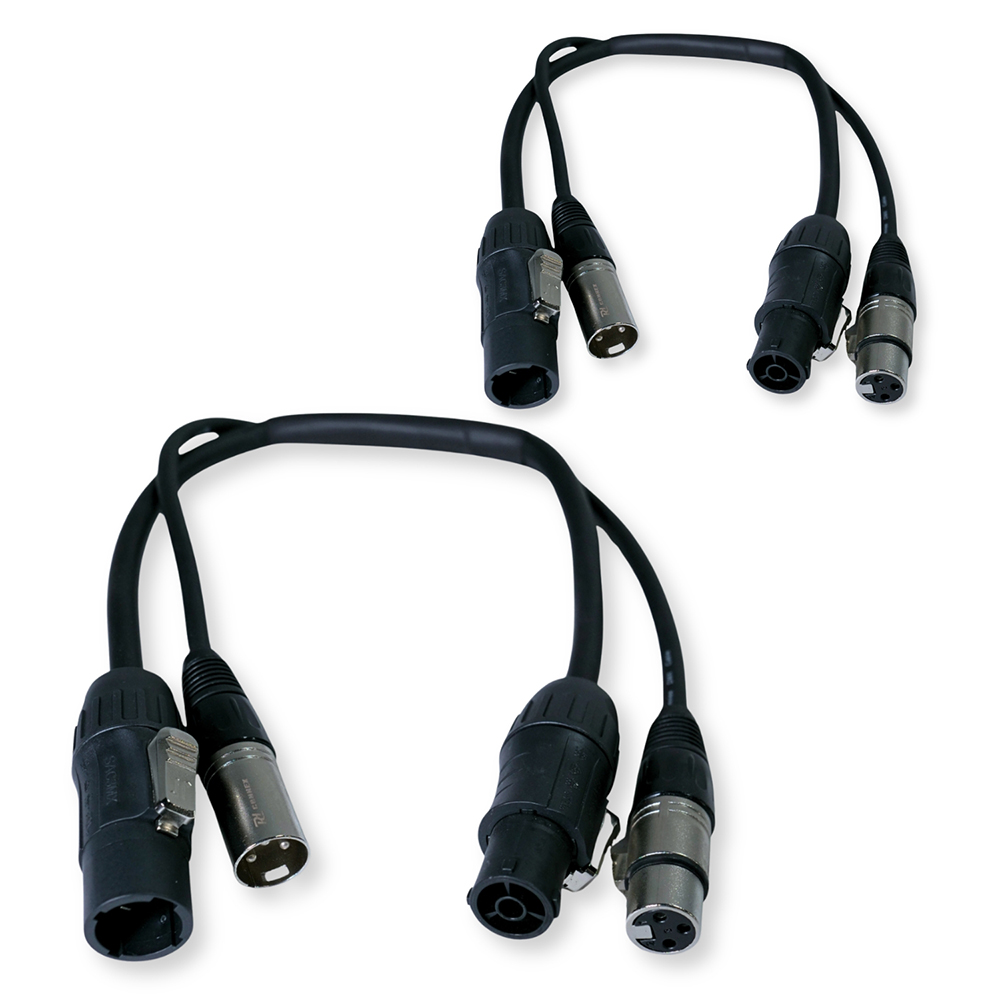

Supplied as a pair, these CX07-0.50 combi cables are made for compatible lighting fixtures with Powerconnector TR and 3-pin XLR DMX sockets. Each 0.5m lead keeps power and control data within a single cable run.
Technical Specifications
| Cable type | DMX lighting-control combi cable |
| Characteristic impedance | 120 ohm (DMX Cable) |
| Cable length | 0.5m |
| Colour | Black |
| IP Rating | IP65 |
| Connector A | 3-Pin XLR female/powerconnector TR A |
| Connector B | 3-Pin XLR male/Powerconnector TR B |
| Conductor size | 8×0.2mm (DMX cable) |
| Shielding | Braided, 64×0.08mm (DMX cable) |
| Outer jacket material | PVC |
| Cable outer diameter | 10.8mm |
| Connector material | Metal/Plastic |
| Cable flexibility | Flexible |
| Suitable for | DMX controllers, lighting fixtures, splitters and interfaces |
| Use environment | Outdoor, Touring, Installation |
| Warranty | 2 years |
Ideal For
- Short links between compatible LED lighting fixtures
- Moving head rigs that use 3-pin DMX and Powerconnector TR
- Wall washer installations requiring neat combined cabling
- Theatre, nightclub and venue lighting patching
- Mobile DJ and event production lighting setups
Compatibility and Useful Information
This DMX power cable is for lighting equipment fitted with matching 3-pin XLR DMX and Powerconnector TR A/B connectors. The 120 ohm DMX specification and braided shielding suit digital lighting-control use, while the 0.5m length is intended for close-positioned fixtures. If your rig needs a short Powercon DMX cable for linking compatible effects, PAR cans, moving heads or wall washers, this two-cable pack provides two matching DMX cable for lighting links.
