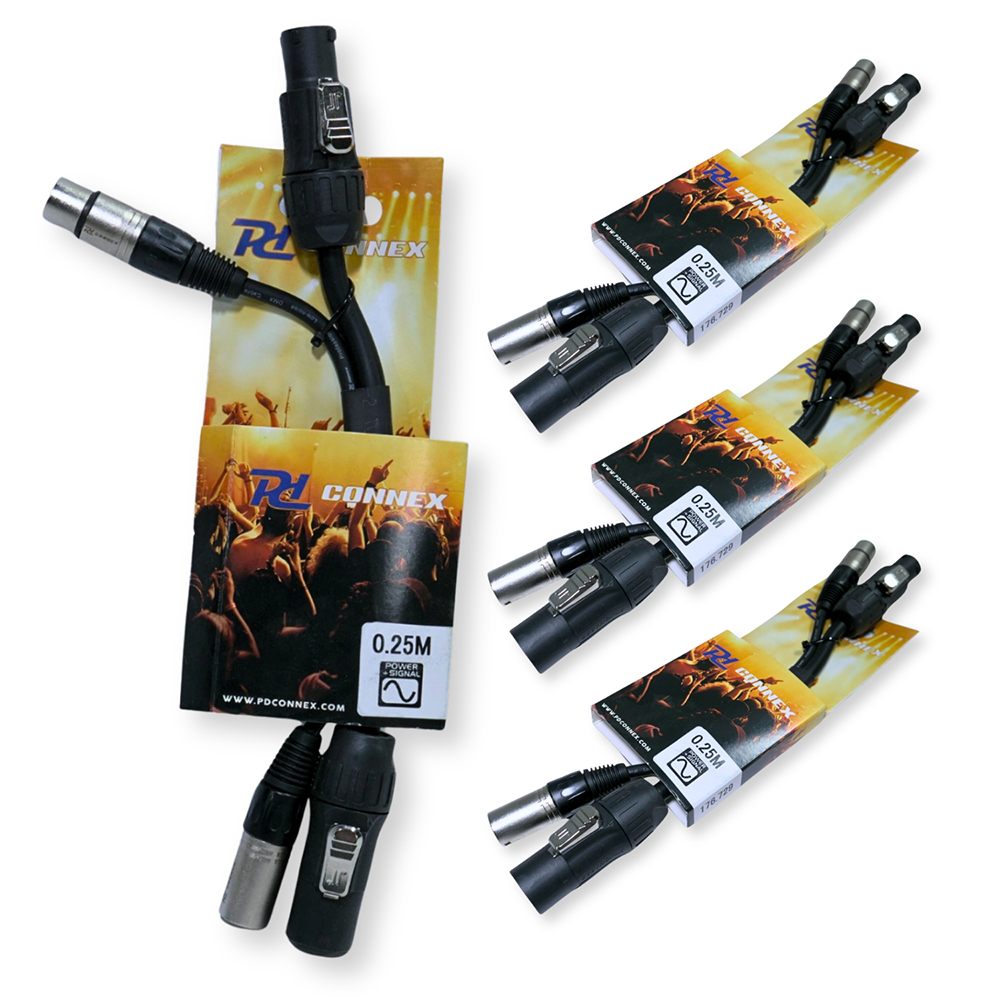

4x PD Connex CX07-0.25 Combi 3-Pin DMX Cable and TR Power
Supplied as a pack of four, these short combi cables are designed for compatible lighting fixtures that need both 3-pin DMX data and Powerconnector TR power linking between nearby units.
Technical Specifications
| Cable type | DMX lighting-control combi cable |
| Characteristic impedance | 120 ohm (DMX cable) |
| Cable length | 0.25m |
| Colour | Black |
| IP Rating | IP65 |
| Connector A | 3-Pin XLR female/powerconnector TR A |
| Connector B | 3-Pin XLR male/Powerconnector TR B |
| Conductor size | 8×0.2mm (DMX cable) |
| Shielding | 64×0.08mm (DMX cable) |
| Outer jacket material | PVC |
| Cable outer diameter | 10.8mm |
| Connector material | Metal/Plastic |
| Cable flexibility | Flexible |
| Suitable for | DMX controllers, lighting fixtures, splitters and interfaces |
| Use environment | Outdoor |
| Warranty | 2 years |
Ideal For
- Daisy-chaining compatible LED lighting fixtures on truss
- Short control and power links between moving head fixtures
- Event production rigs where tidy cable paths are important
- Venue, theatre and nightclub lighting installations
- DMX controllers, lighting fixtures, splitters and interfaces
Compatibility and Useful Information
Use this 3 pin DMX cable only with equipment fitted with matching 3-pin XLR DMX and Powerconnector TR connections. The cable combines both functions, so a single DMX power cable can replace separate power and DMX leads between compatible fixtures. Its 120 ohm DMX construction, shielding and short 0.25m length make it suitable for local links within a lighting rig. This DMX and power cable pack is useful when several fixtures need the same connection type, while the Powercon DMX cable format keeps power and control wiring organised. For supported fixtures, it is a practical DMX cable for lighting in indoor and outdoor environments.
