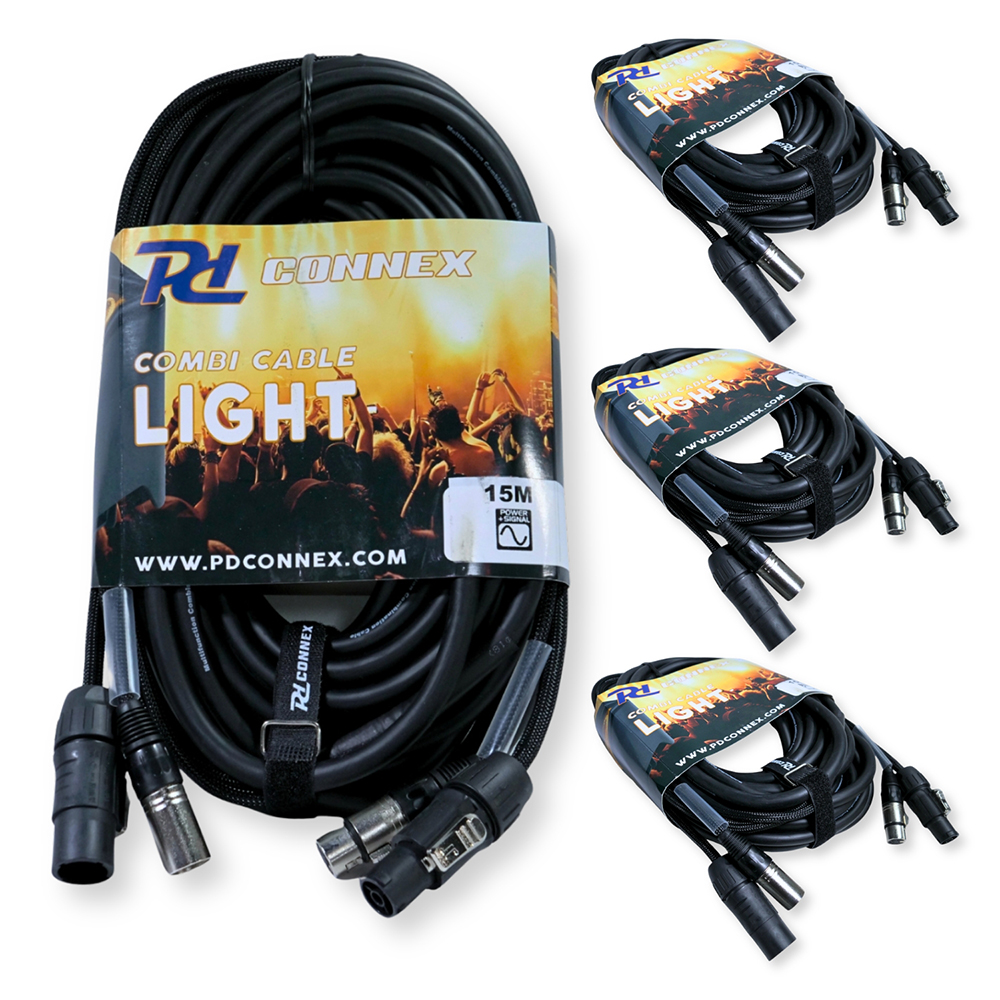

4x PD Connex CX13-15 15m DMX Cable Combi Leads for Power and 5-Pin Control
The PD Connex CX13-15 package gives you four matching 15m combi leads, made for carrying lighting control and mains power between compatible fixtures with Powerconnector TR and 5-pin XLR connections.
Technical Specifications
| Cable type | DMX lighting-control combi cable |
| Characteristic impedance | 120 ohm (DMX cable) |
| Cable length | 15m |
| Colour | Black |
| IP Rating | IP65 |
| Connector A | 5-pin XLR female/Powerconnector TR A |
| Connector B | 5-pin XLR male/Powerconnector TR B |
| Conductor size | 3x 1.5mm power cable; 8×0.2mm signal conductors |
| Shielding | 64×0.08mm (DMX cable) |
| Outer jacket material | PVC/PTFE braid |
| Cable outer diameter | 10.8mm |
| Connector material | Metal |
| Cable flexibility | Flexible |
| Suitable for | DMX controllers, lighting fixtures, moving heads, LED effects and wall washers |
| Use environment | Outdoor |
| Warranty | 2 years |
Ideal For
- Event production setups using compatible DMX lighting fixtures
- Stage lighting systems where power and control share a route
- Concert and touring rigs with moving heads and LED effects
- Permanent lighting installations with 5-pin DMX control
- Outdoor fixture linking where IP65-rated cabling is required
Compatibility and Useful Information
This set is intended for lighting equipment with 5-pin XLR DMX and Powerconnector TR A/B connections. Each DMX power cable combines a 120 ohm 5 pin DMX cable section with a 3x 1.5mm power cable, making it suitable as a DMX and power cable for compatible fixtures. Customers looking for a Powercon DMX cable should confirm their equipment uses the Powerconnector TR format shown here. As a DMX cable for lighting, it is suited to DMX controllers, moving heads, LED effects, wall washers and similar fixtures listed in the specification.
