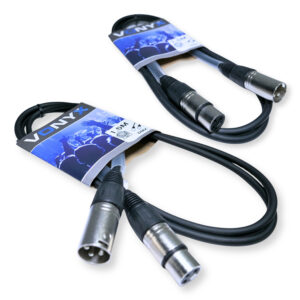

PD Connex CX350-1 Digital Audio Cable for AES/EBU and DMX

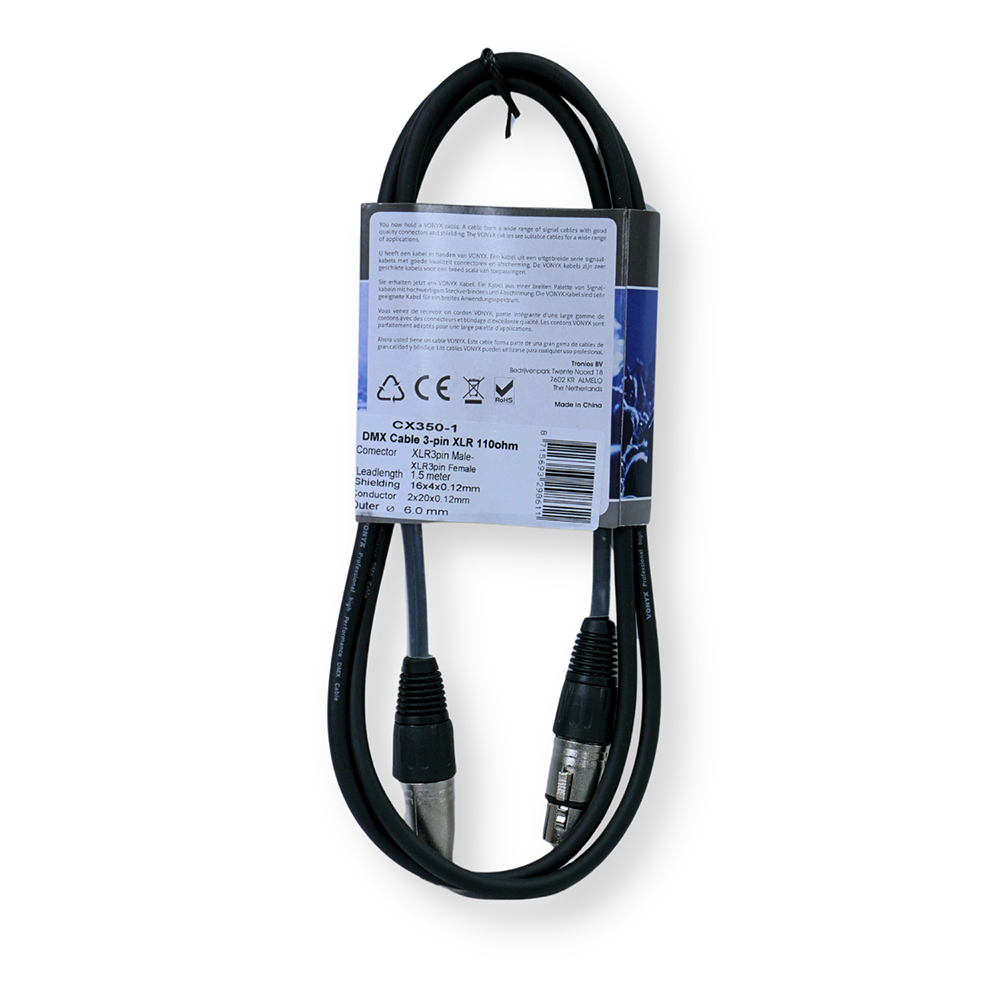

This 1.5m PD Connex CX350-1 cable is made for 110 Ohm AES/EBU digital audio and DMX lighting-control connections, with 3-pin XLR male and female ends.
Technical Specifications
| Cable type | DMX lighting-control cable |
| Characteristic impedance | 110 ohm |
| Cable length | 1.5m |
| Colour | Black |
| IP Rating | N/A |
| Connector A | 3-pin XLR male |
| Connector B | 3-pin XLR female |
| Conductor size | 18×0.12mm |
| Shielding | 64×0.12mm |
| Outer jacket material | PVC |
| Cable outer diameter | 6mm |
| Connector material | Metal |
| Cable flexibility | Flexible |
| Suitable for | DMX controllers, lighting fixtures, splitters, interfaces and terminators |
| Use environment | Indoor stage, Venue |
| Warranty | 2 years |
Ideal For
- Patching nearby DMX controllers and lighting fixtures
- Short AES/EBU digital audio connections with XLR sockets
- Indoor event, venue and theatre lighting systems
- Connections to DMX splitters, interfaces and terminators
- AV installation work where a 1.5m 110 Ohm cable fits
Compatibility and Useful Information
Use this cable where your equipment specifies a 110 Ohm 3-pin XLR connection for DMX or AES/EBU digital audio. It is not just a standard audio-style lead by appearance; the supplied impedance and shielding make it suitable as a DMX cable, 3 pin DMX cable, AES cable, AES EBU cable or short digital output cable when the connected devices use matching 3-pin XLR ports.
