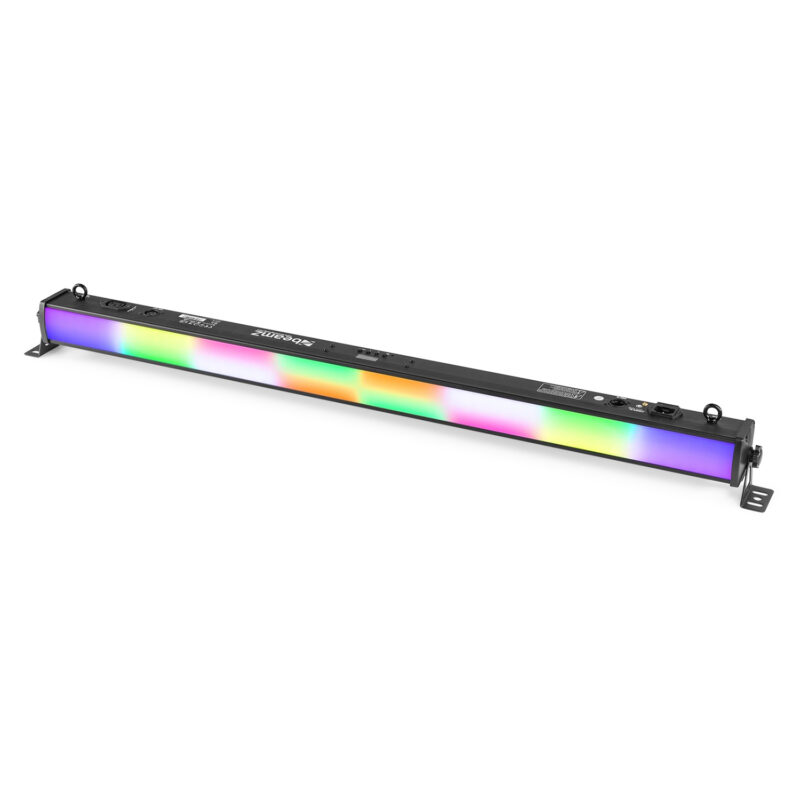

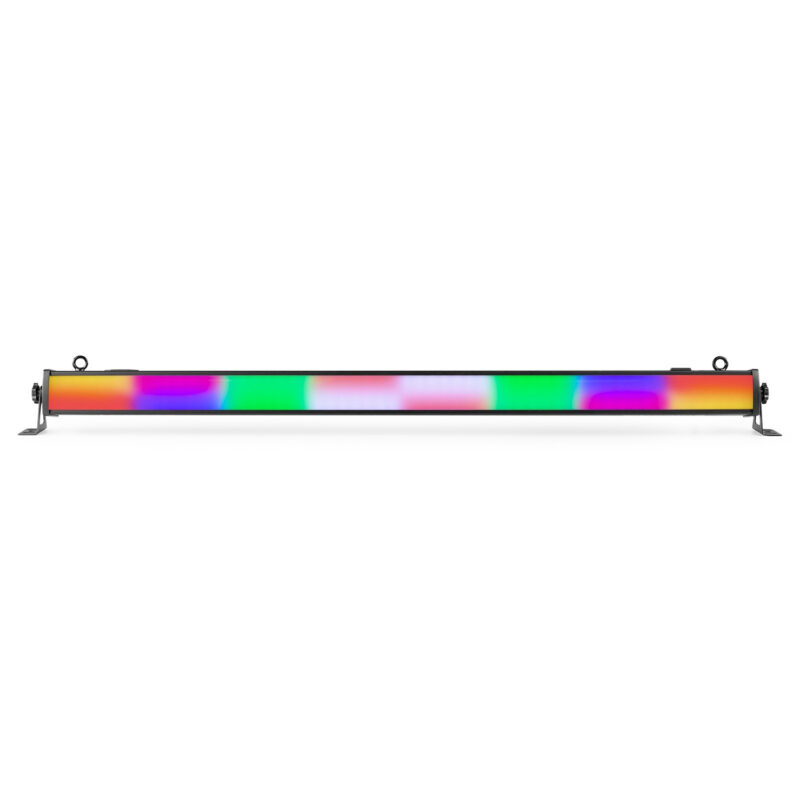

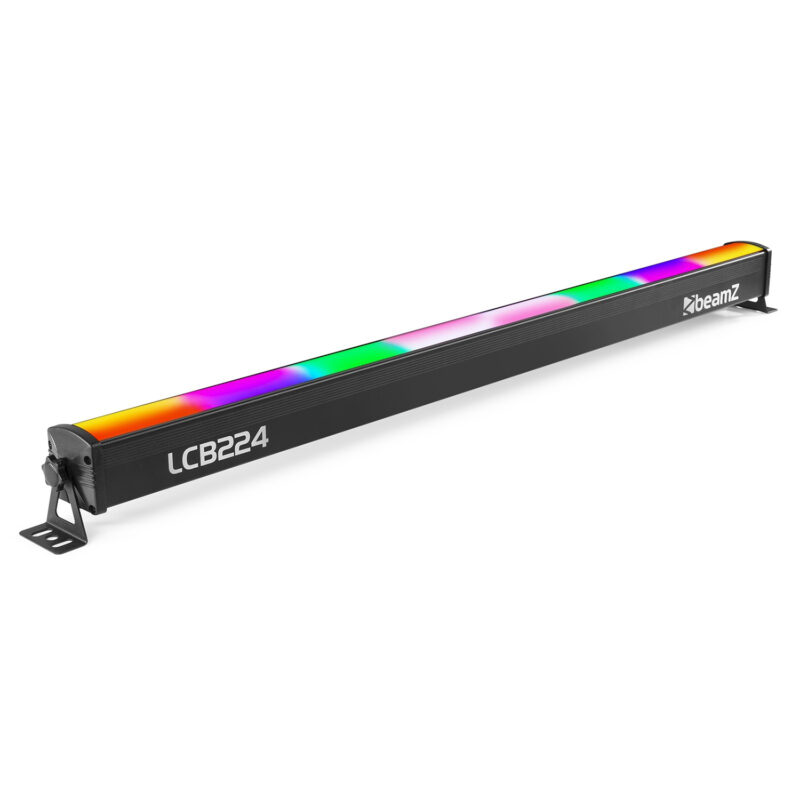

BeamZ LCB224 LED Light Bar Wall Washer – 224x SMD RGB LEDs


Key Features

  • 1m LED wash light bar light
  • 224x RGB SMD LEDs with colour mixing
  • 16 segments of independently controlled LEDs
  • Up to 53 channels of DMX control
  • Sound activation and preset auto-shows
In Stock

Order by 5pm for next working day delivery

BeamZ LCB224 LED Light Bar Wall Washer - 224x SMD RGB LEDs £109.00

Buy 2+ and save 3% at checkout

Free UK shipping on all orders over £30

  • 60 Day Easy Returns
  • 2 Year Extended Warranty
  • Design, Consulting and Installation Service
Safe & Secure Checkout

Payment Methods

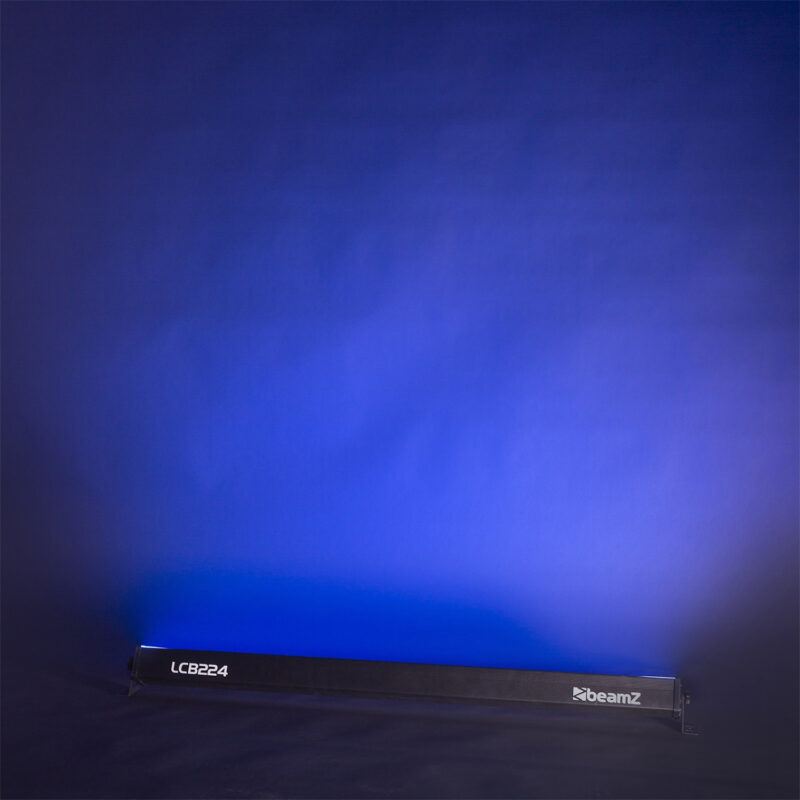

The BeamZ LCB224 is a versatile 1m LED wall washer light bar designed for a wide range of applications. Its length and bright illumination make it ideal for venue uplighting, creating an impactful visual display along walls or architectural features, and is easily mounted to walls or ceilings for use as a colour wash system.

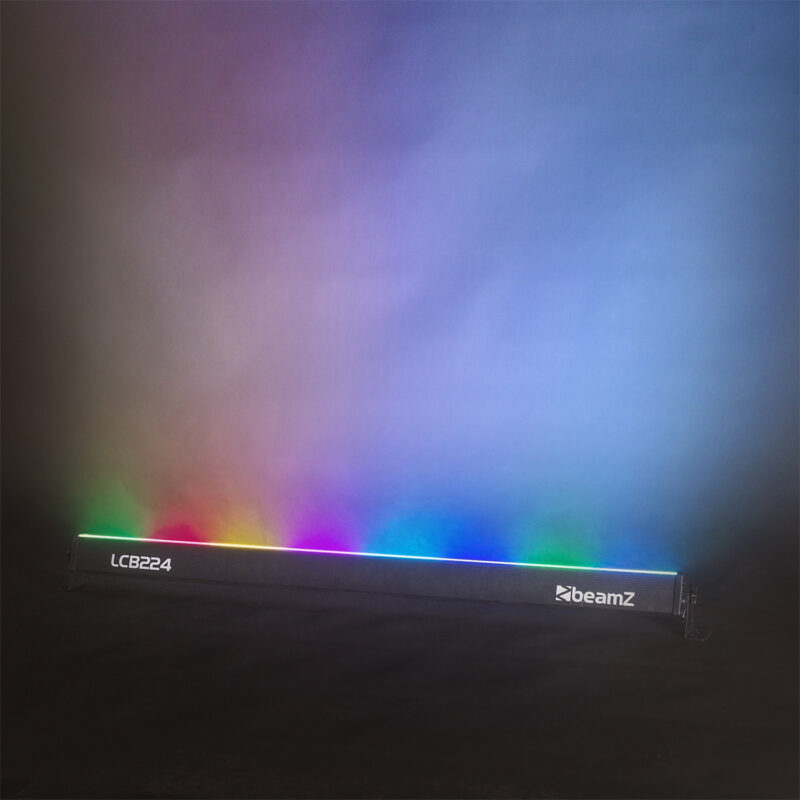

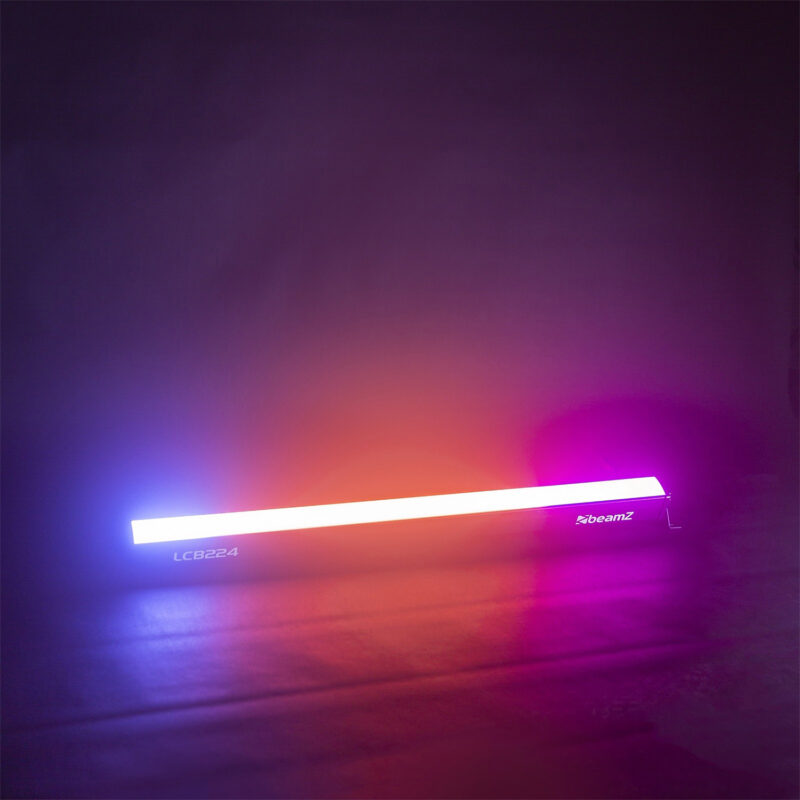

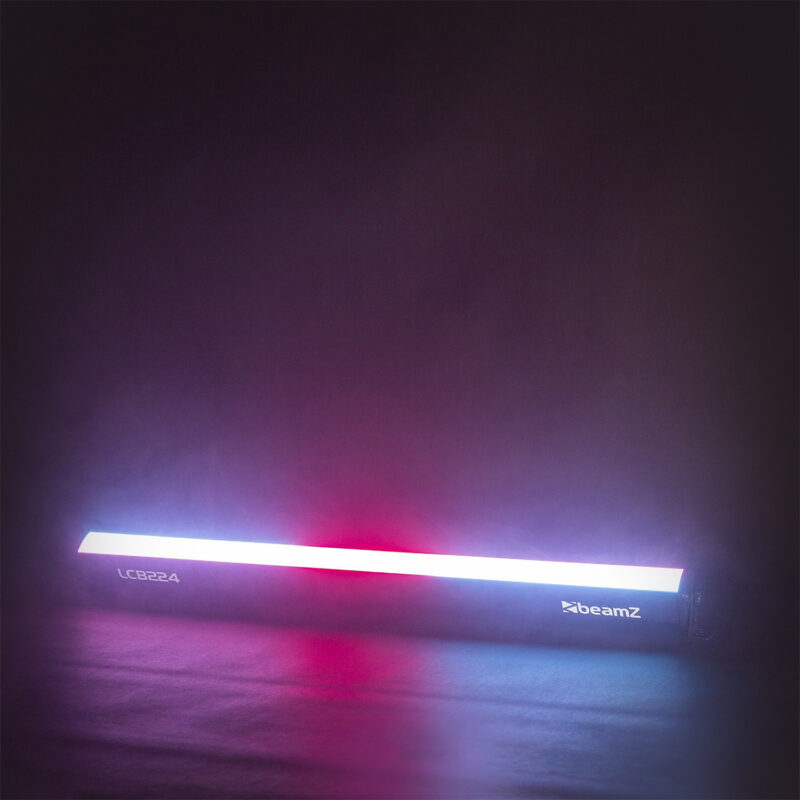

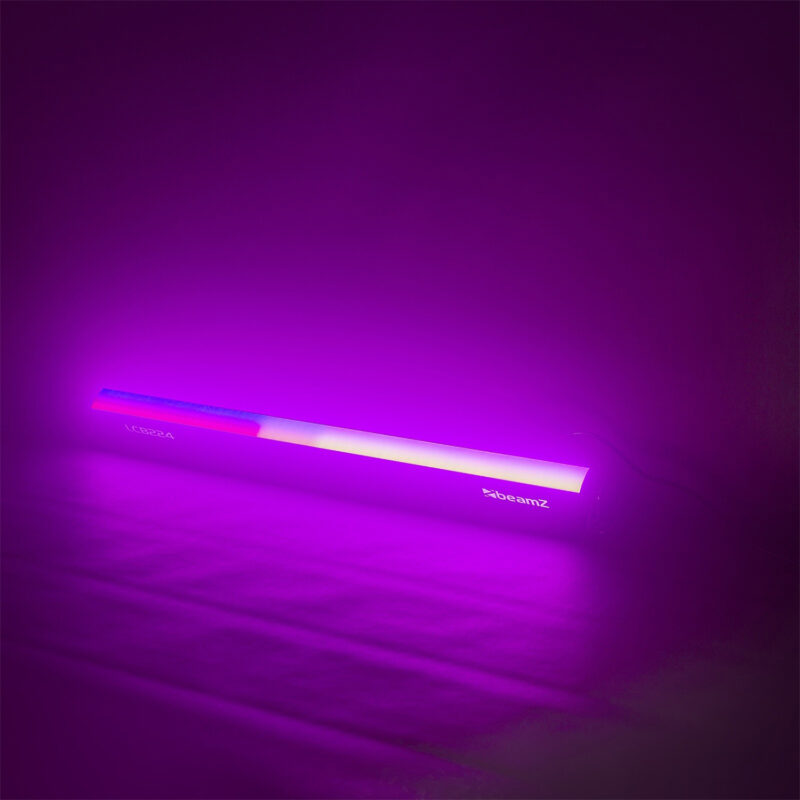

This LED wall washer is equipped with 224 RGB SMD LEDs, providing a vibrant spectrum of colour-mixing possibilities. The colour blending capability allows for creating the perfect ambience for various events, from church stage lighting to professional venue settings.

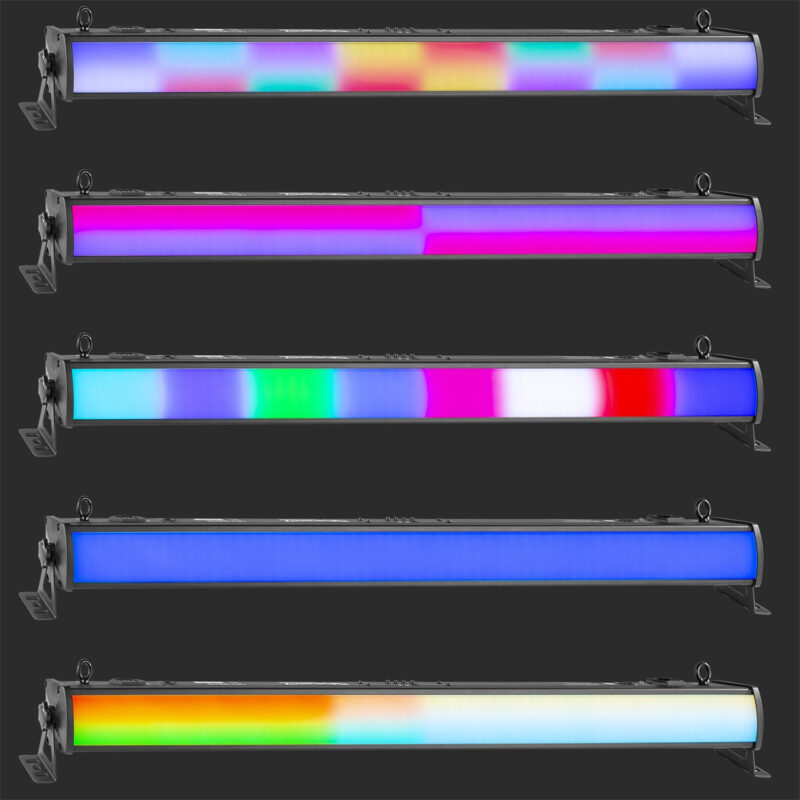

The unique feature of 16 independently controllable LED segments offers unparalleled creativity in lighting design. This functionality allows for intricate lighting patterns and dynamic visual effects, enhancing venue lighting effects and adding a sophisticated touch to any event.

With compatibility for up to 53 DMX channels, the BeamZ LCB224 offers extensive control options. This level of control is particularly useful for detailed lighting arrangements, providing precision in creating the desired lighting atmosphere for any event, be it a concert, corporate event, or wedding.

For added versatility, the LCB224 includes sound activation and multiple preset auto-shows. These features offer easy setup options for various events, allowing the light bar to react and move with the music, or run through a sequence of pre-programmed shows, ensuring a dynamic and engaging lighting experience.

Key Details

  • 224x SMD RGB LEDs offer vibrant and diverse colour options for dynamic lighting.
  • 16 controllable LED sections allows for unique lighting designs and patterns.
  • DMX and stand-alone modes are suitable for both professional and simple setups.
  • Master/Slave function enables synchronised operation with multiple units.
  • Sound activation with adjustable sensitivity for plug-and-play operation.
  • 54 built-in effects and pre-programmed shows offer a variety of pre-set lighting displays.
  • 25 colour presets provide a range of colour options for quick selection.
  • 24 effect patterns enhance visual interest with diverse patterns.


  • 224x SMD RGB LEDs
  • 35824 48 or 53 DMX channels
  • 16 Sections controllable
  • DMX and Stand-alone mode
  • Master/slave function
  • Sound activated with adjustable sensitivity
  • 54 Built-in effects
  • Pre-programmed shows
  • 25 Colour pre-sets
  • 24 Effect patterns

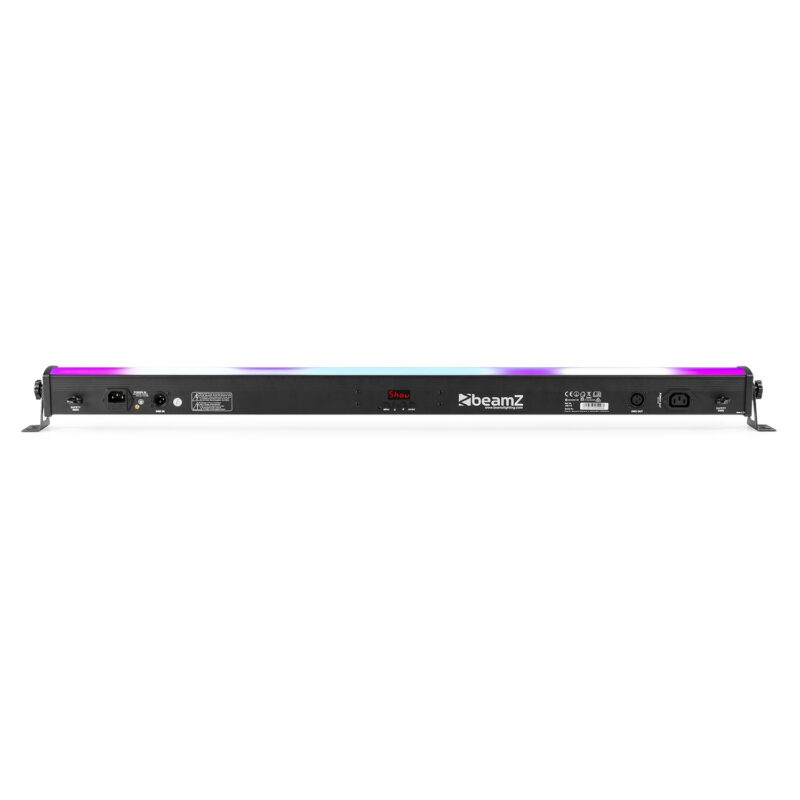

  • DMX in/output via 3-pin XLR
  • IEC-connector input/output


  • Supplied features: Master/Slave mode
  • Light source: 3-in-1 LED
  • LED colours: Red Green Blue
  • Quantity of LEDs: 224
  • Beam angle: 90 degree
  • Flash rate per second: 1 - 19Hz
  • DMX channels: 3582448 53
  • DMX connector: 3-pin XLR
  • Modes: Automatic programs DMX Manual Master/Slave
  • IP rating: IP20
  • Cooling: Convection
  • Display: LED
  • Power plug: IEC
  • Power consumption: 0.75 - 0.41A
  • Power supply: 100-240VAC 50/60Hz
  • Dimensions (L x W x H): 1000 x 65 x 90mm
  • Weight: 1.6500
  • Accessories: Mounting bracket Power cable
  • MPN: 150.713
