Enhance your stage, venue and event lighting with the BeamZ LCB288 LED Light Bar. This professional stage bar light can produce both wash and strobe effects and includes a total of 288 SMD LEDs. It also features a choice of operation modes, including stand-alone operation, sound activation, DMX mode, and a master/slave function, to suit a variety of applications.

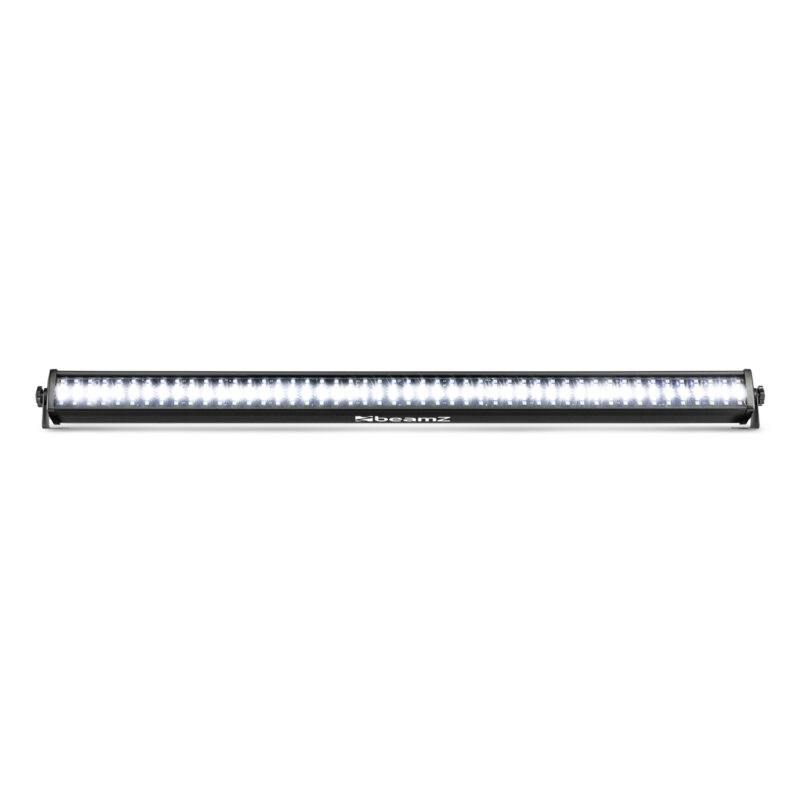

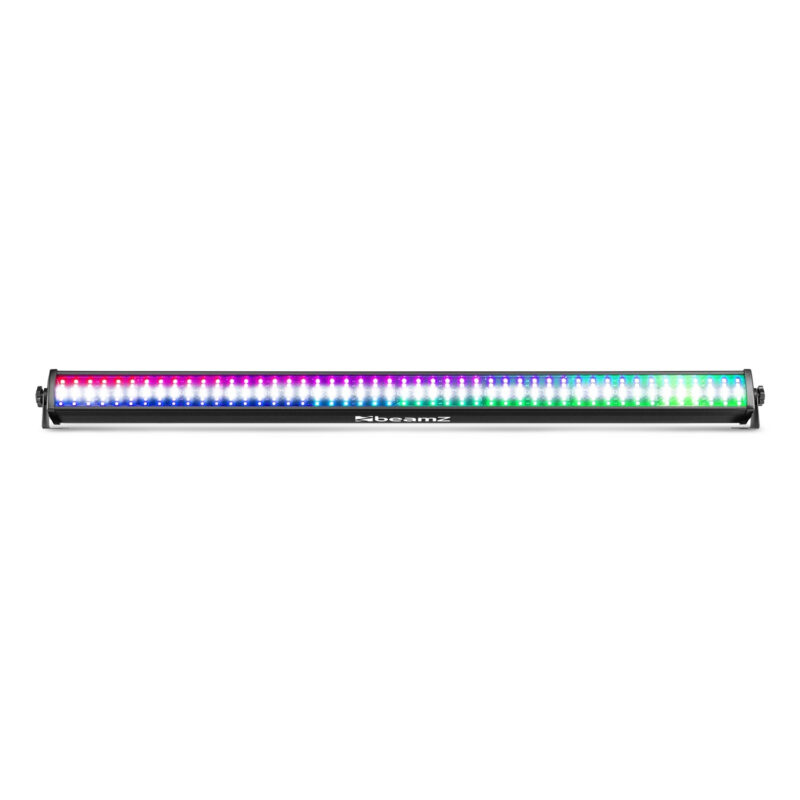

This LED colour rail is equipped with 288 SMD LEDs, split into two sections: the top and bottom with 192 RGB LEDs and the middle section with 96 white SMD LEDs. This enables the creation of varied, eye-catching effects. The white LEDs can produce a striking strobe effect, with a variable flash rate, between 1-21 Hz per second. In addition, the RGB LEDs finish colour mixing technology, enabling a wide range of colours to be created, perfect for stage lighting.

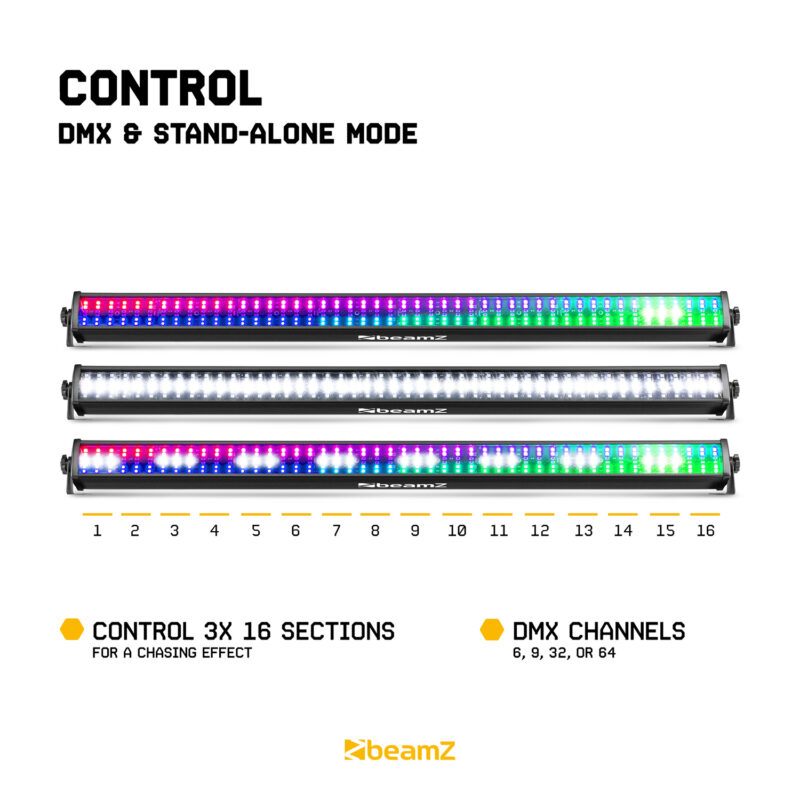

For large, professional setups, an external DMX controller can be used to custom control this LED bar. The light offers 6, 9, 32, or 64 DMX channels and includes a 3-pin XLR DMX in/out. The LEDs are split into three sections of 16, which can be independently controlled, offering extensive customisation options. Additionally, the master/slave function enables synchronized displays across multiple units.

Alternatively, the LED bar can be operated in standalone mode for straightforward, plug-and-play usage. It features preset programs with adjustable speeds and a sound-activated mode with variable sensitivity, allowing the lights to respond to music and create a coordinated audio-visual experience.

Overall, this LED light strip is a powerful and user-friendly option for creating captivating lighting effects. It delivers a stunning combination of RGB colours and white strobe effects, with multiple operating modes to cater to different users. Ideal for venue uplighting, events, or stage shows, this LED light bar guarantees to make a lasting impression.

Key Details

  • Professional LED light batten, ideal for live stage performances, uplighting venues and events
  • Equipped with 192 RGB and 96 white SMD LEDs that can produce a strobe and wash effect
  • LEDs organised into 3×16 sections individually controllable sections to customise the effect
  • Manual mode with pre-set shows for easy plug-and-play use
  • Sound activation mode for synchronised sound and lighting shows
  • Suitable for DMX control with 6,9, 32 or 64 channels and 3-pin XLR in/output
  • Master/slave synchronisation

Features

  • Wash and Strobe LED Bar
  • 192x SMD RGB LEDs (top and bottom)
  • 96x SMD White LEDs (center)
  • 6, 9, 32, or 64 DMX channels
  • 3x 16 Sections controllable
  • DMX and Stand-alone mode
  • Master/slave function
  • Sound activated with adjustable sensitivity
  • Auto mode with adjustable speed
  • DMX in/output via 3-pin XLR
  • Power-connector input/output

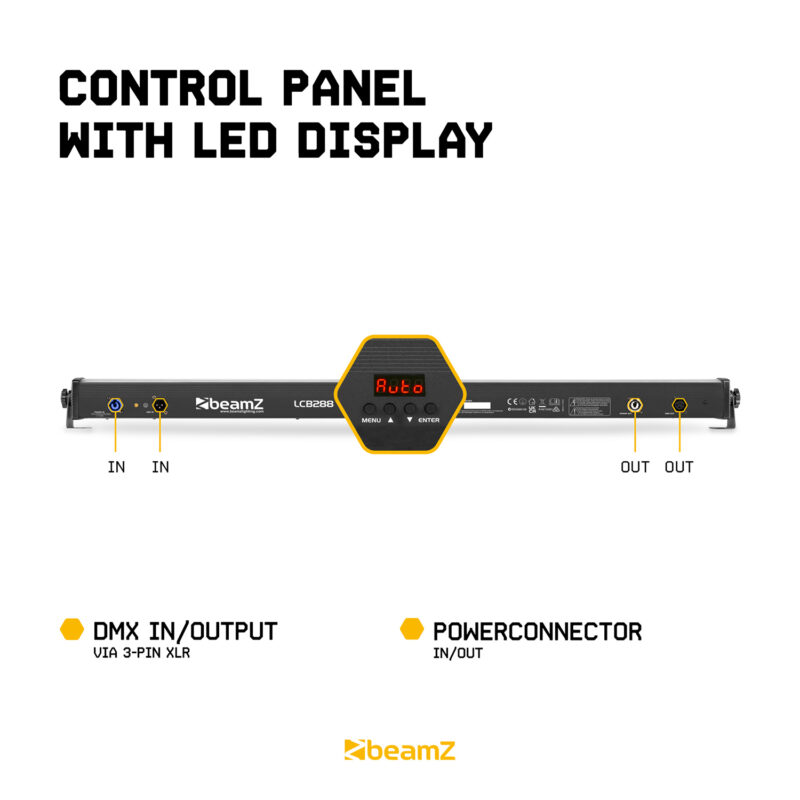

  • Control panel with LED display

Specifications

  • Supplied features: Master/Slave mode
  • Light source: Single colour LED, 3-in-1 LED
  • LED colours: Red, Green, Blue, White
  • Quantity of LEDs: 192
  • LED power: Strobe: 1W
  • Quantity of strobe LEDs: 96
  • Beam angle: 135 degree
  • Illuminance: 1.483 lx @ 1m
  • Flash rate per second: 1 - 21Hz
  • DMX channels: 6, 9, 32, 64
  • DMX connection: 3-pin XLR
  • Modes: Automatic programs, DMX, Manual, Master/Slave
  • Daisy chain: Yes (max. 6 bars)
  • Cooling: Convection
  • Display: LED
  • Power plug: Power-connector
  • Power consumption: 1.67 - 0.804A
  • Power supply: 100-240VAC 50/60Hz

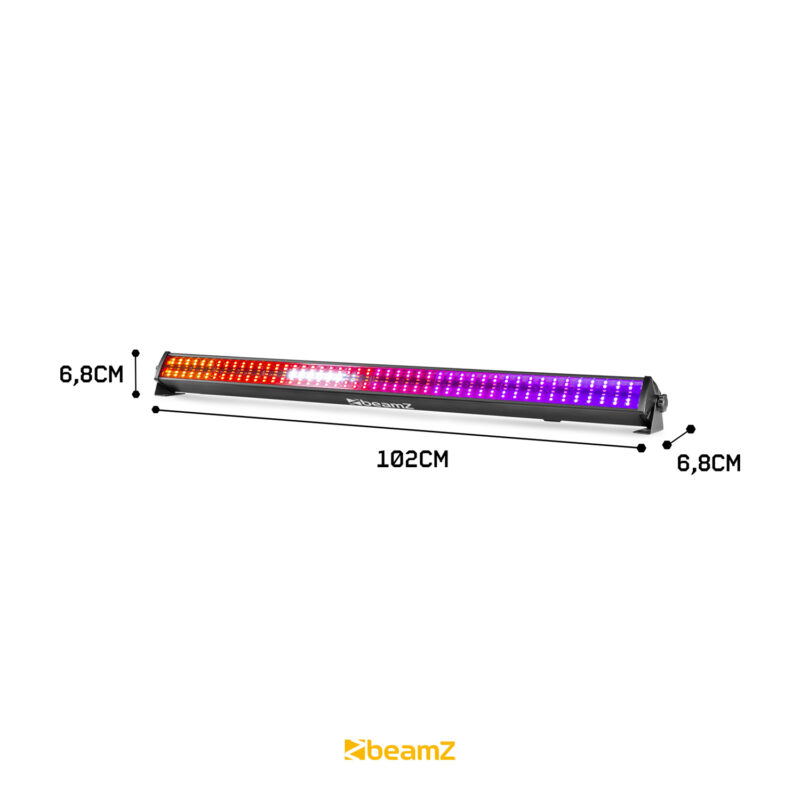

  • Dimensions (L x W x H): 1021 x 68 x 68 mm
  • Weight: 1.7500
  • Accessories: Mounting bracket, Power cable
  • MPN: 150.224

Additional information

GTIN

8715693339796

MPN

150.224

Power Rating

100W – 199W

Light Colours

RGBW

Battery Powered

No

Wireless DMX

No

Bulb Type

SMD LED

Gobo

No

IP Rating

IP20

Flight Case

No
