0.25m DMX Cable with Powerconnector TR Link
The PD Connex CX07 is a compact combi cable for DMX-controlled lighting, joining 3-pin XLR signal connectors with Powerconnector TR power connectors in a single fixture link.
Technical Specifications
| Cable type | DMX lighting-control combi cable |
| Characteristic impedance | 120 ohm (DMX cable) |
| Cable length | 0.35m |
| Colour | Black |
| IP Rating | IP65 |
| Connector A | 3-Pin XLR female/powerconnector TR A |
| Connector B | 3-Pin XLR male/Powerconnector TR B |
| Conductor size | 8×0.2mm (DMX cable) |
| Shielding | 64×0.08mm (DMX cable) |
| Outer jacket material | PVC |
| Cable outer diameter | 10.8mm |
| Connector material | Metal/Plastic |
| Cable flexibility | Flexible |
| Suitable for | DMX controllers, lighting fixtures, splitters and interfaces |
| Use environment | Outdoor |
| Warranty | 2 years |
Ideal For
- Moving head links where short combi cabling is required
- LED PAR can rows needing combined control and power cabling
- Theatre lighting positions with compatible fixture connectors
- Wall washer runs in events, venues and fixed installations
- Touring lighting racks where fast pack-down is useful
Compatibility & Useful Information

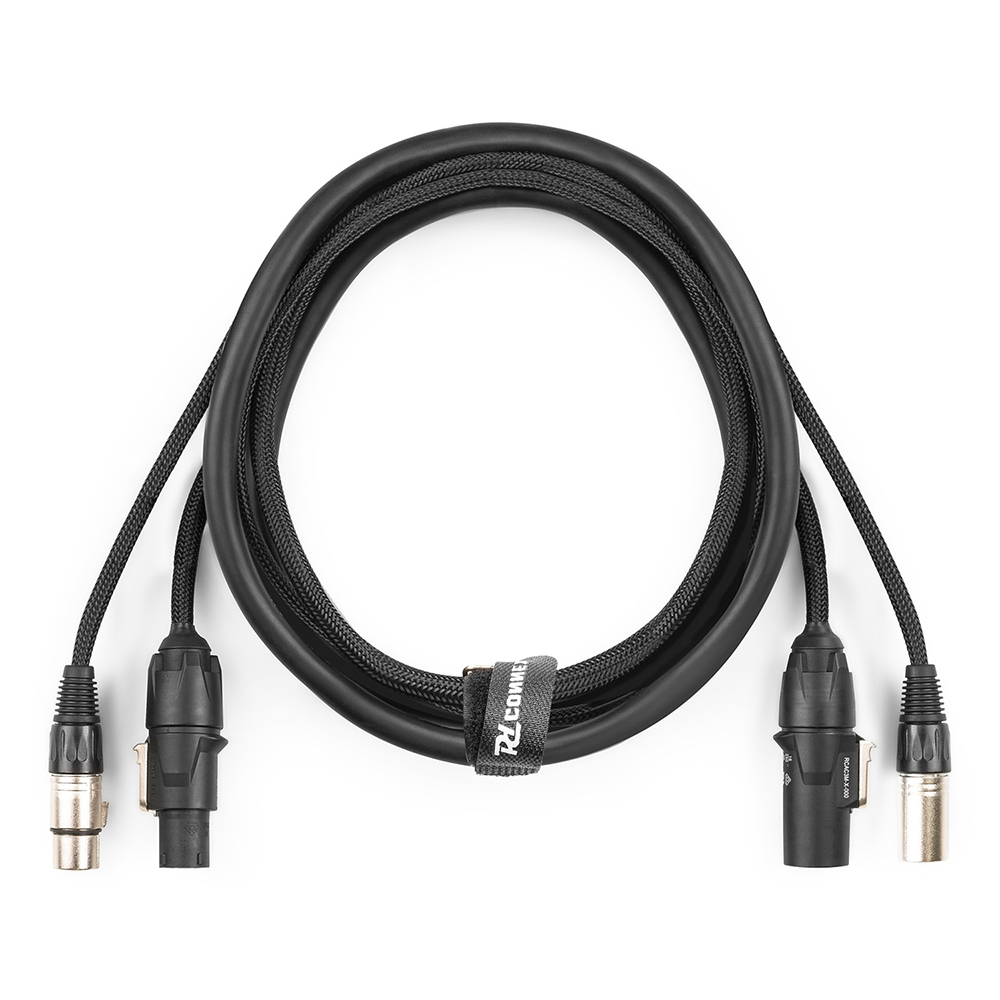

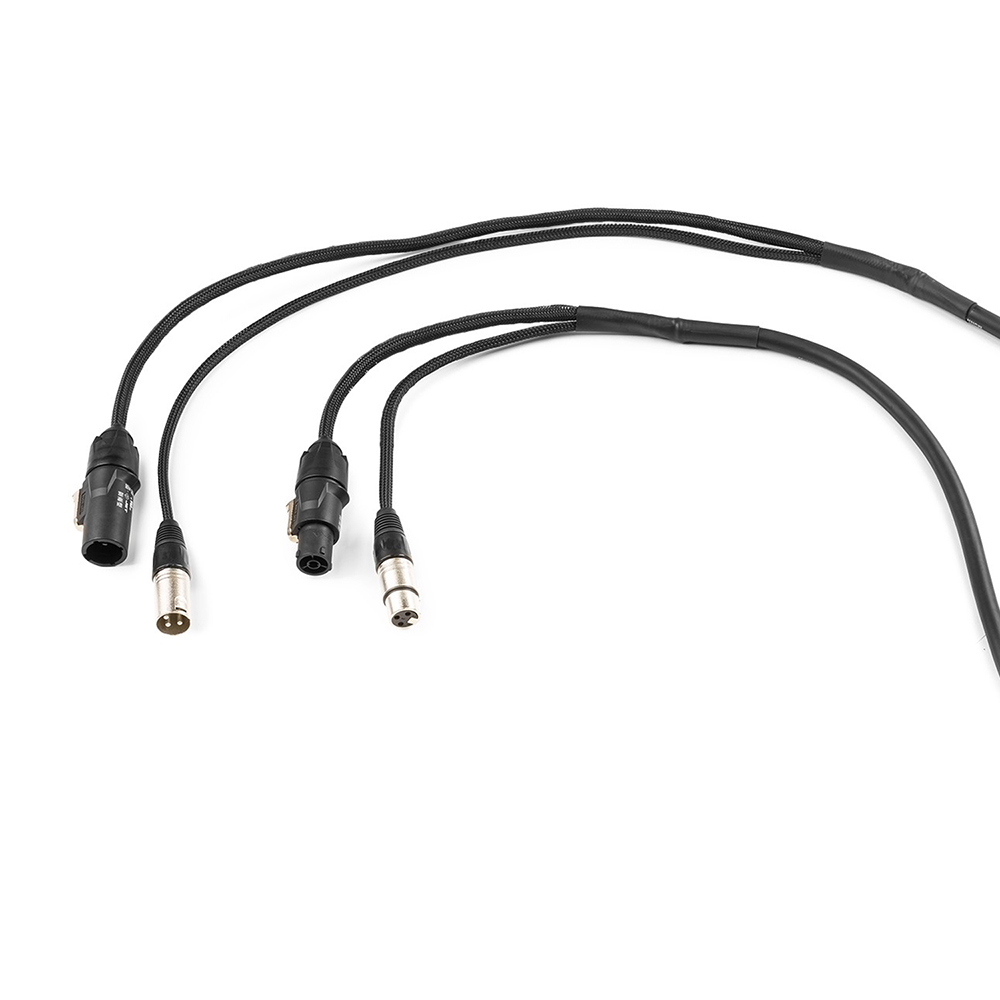

This cable is made for lighting equipment that accepts 3-pin XLR DMX and Powerconnector TR power linking. The connector genders are important: one end has 3-pin XLR female with powerconnector TR A, while the other has 3-pin XLR male with Powerconnector TR B. It is a 3-pin DMX cable for lighting-control data with shielding and 120 ohm impedance specified for the DMX side. If your rig needs a short DMX power cable, a combined DMX and power cable, or a PowerCon DMX cable for fixture-to-fixture linking, this DMX cable for lighting is designed for that exact role.
