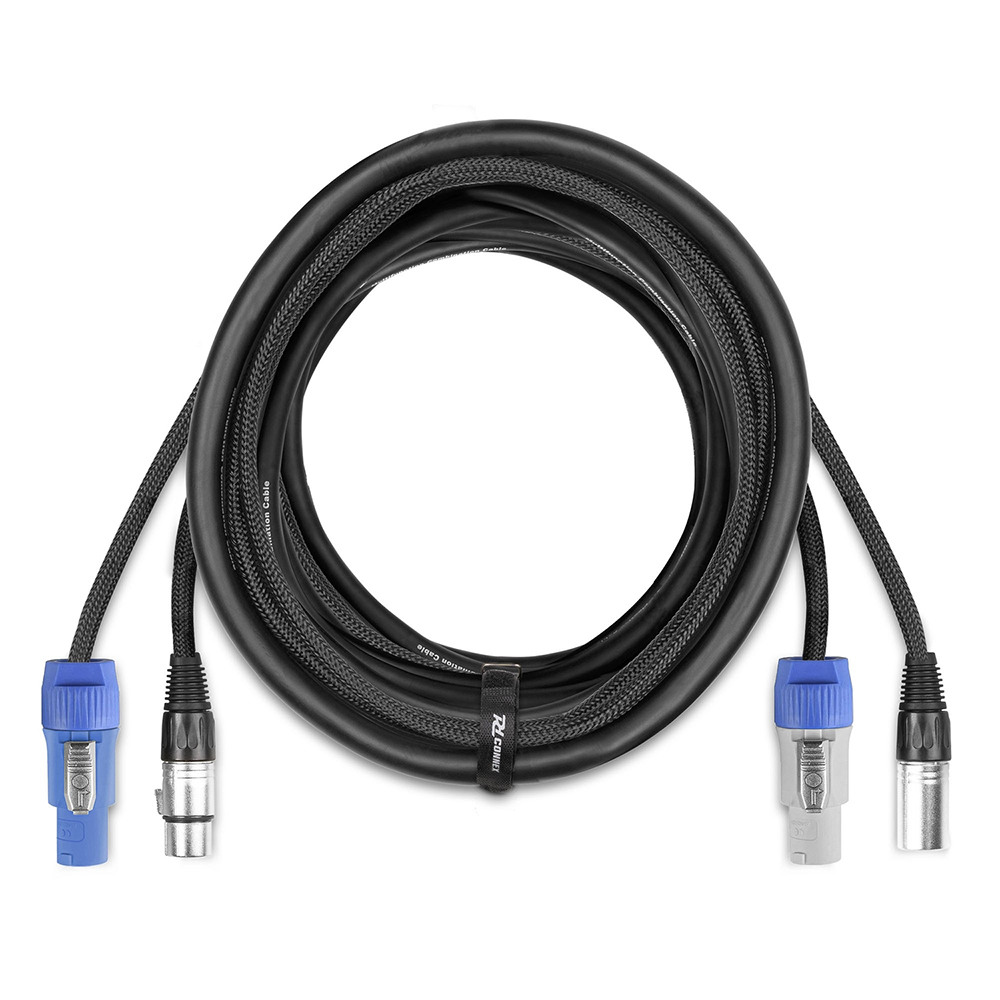

PD Connex CX06-10 DMX Cable and Power Combi Lead
The CX06-10 is a 10m combi lighting cable for compatible DMX fixtures, pairing 3-pin XLR control connectors with Powerconnector A/B power connections to make daisy-chained stage wiring neater.
Technical Specifications
| Cable type | DMX lighting-control combi cable |
| Characteristic impedance | 120 ohm (DMX cable) |
| Cable length | 10m |
| Colour | Black |
| IP Rating | N/A |

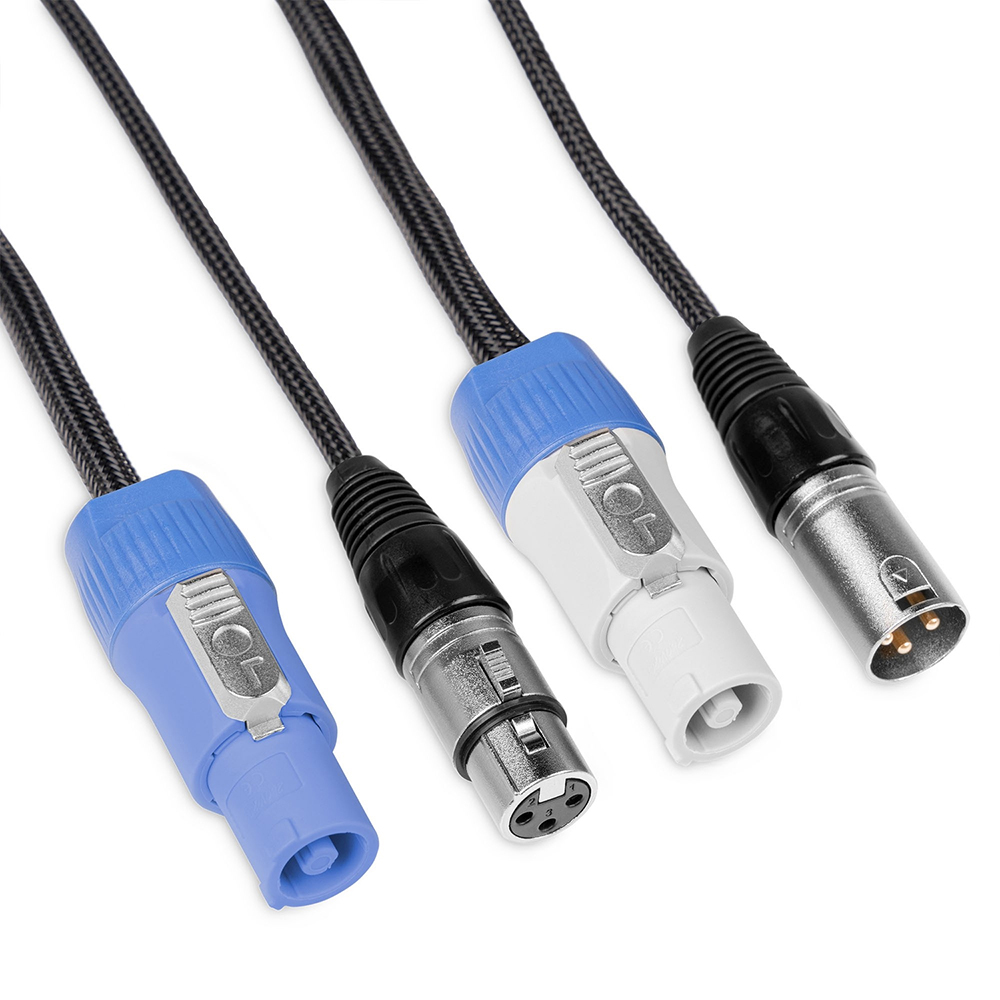

| Connector A | Powerconnector and 3-pin XLR male |
| Connector B | Powerconnector and 3-pin XLR female |
| Conductor size | 3x 1.5mm-squared power cable; signal conductor 8×0.2mm (DMX cable) |
| Shielding | 64×0.08mm (DMX cable) |
| Outer jacket material | PVC/PTFE braid |
| Cable outer diameter | 10.8mm |
| Connector material | Metal, plastic |
| Cable flexibility | Flexible |
| Suitable for | DMX controllers, lighting fixtures, moving heads, LED effects, wall washers and DMX daisy-chaining |
| Use environment | Indoor stage, Venue |
| Warranty | 2 years |
Ideal For
- Indoor stage lighting systems with compatible power linking
- Theatre fixtures requiring DMX control and tidy cable routing
- Nightclub lighting runs using moving heads or LED effects
- AV installers wiring permanent indoor lighting positions
- Touring productions needing repeatable fixture daisy chains
Compatibility and Useful Information
This cable is best chosen for lighting fixtures that accept both Powerconnector A/B power links and 3-pin XLR DMX control. It is a dedicated 3 pin DMX cable arrangement with shielding and 120 ohm impedance for the signal section. If your setup needs a combined DMX power cable, this DMX and power cable reduces the number of separate leads in the run.
