5-pin DMX Cable for Events and Installations

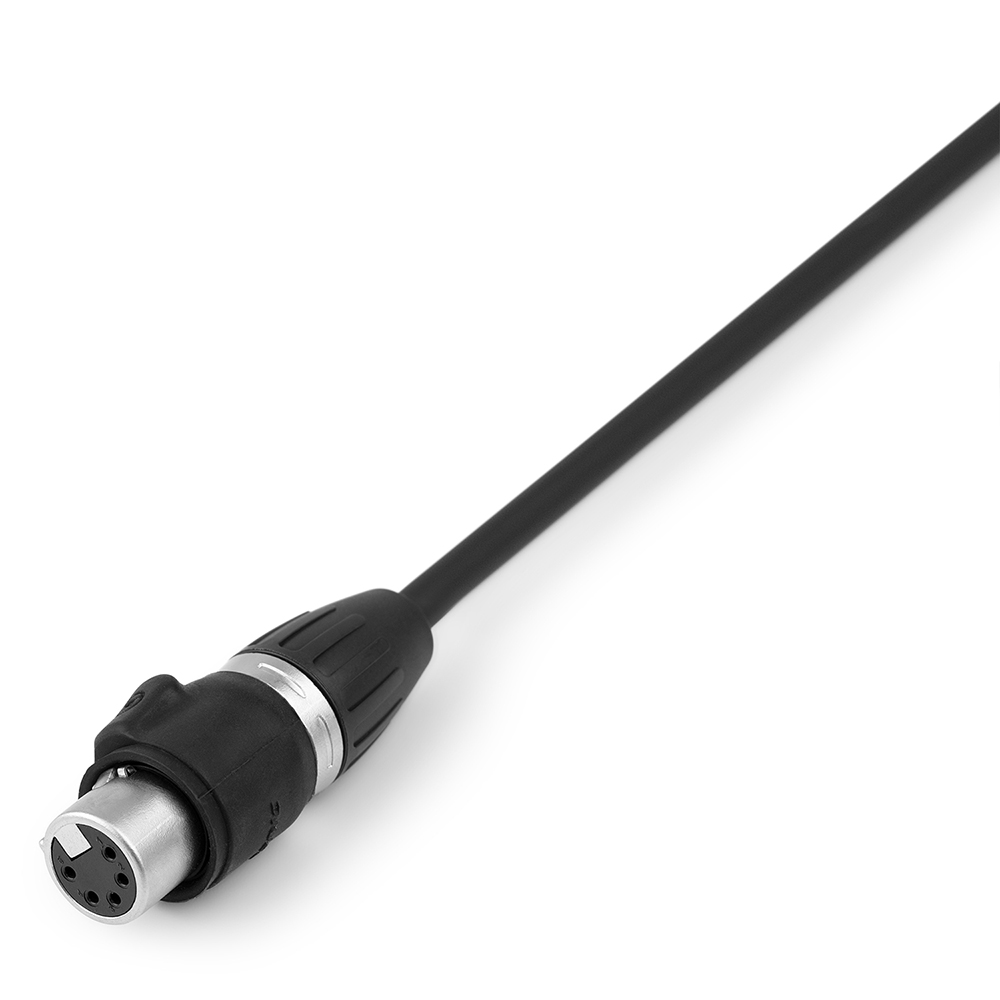

The PD Connex CX104-12 is a 12m 120-ohm DMX lighting-control lead with 5-pin XLR connectors at each end. It is designed for dependable signal transmission between compatible lighting equipment in indoor or outdoor environments.
Technical Specifications
| Cable type | DMX lighting-control cable |
| Characteristic impedance | 120ohm |
| Cable length | 12m |
| Colour | Black |
| IP Rating | IP65 |
| Connector A | 5-pin XLR male |
| Connector B | 5-pin XLR female |
| Conductor size | 20×0.12mm |
| Shielding | 64×0.12mm |
| Outer jacket material | PVC |
| Cable outer diameter | 6.5mm |
| Connector material | Metal |
| Cable flexibility | Flexible |
| Suitable for | DMX controllers, lighting fixtures, splitters, interfaces and terminators |
| Use environment | Outdoor |
| Warranty | 2 years |
Ideal For
- Concert and touring lighting-control connections
- Permanent outdoor lighting installations using 5-pin DMX
- Professional moving heads and intelligent lighting fixtures
- Lighting hire stock for stage and event production
- DMX splitter, interface and terminator connections
Compatibility & Useful Information
Use this DMX lighting cable where a 5-pin XLR male to 5-pin XLR female DMX data connection is required. It is not simply an audio-style XLR lead; the 120ohm impedance confirms its purpose as a DMX lighting-control cable. The 12m length makes it a useful long DMX cable for runs between fixtures, controllers or splitters without jumping straight to a 20m lead. For exposed event spaces or outdoor installations, the outdoor DMX cable format and XLR IP65 connector rating help protect the connection point. Choose it when your lighting system specifically calls for a 5 Pin DMX Cable.
