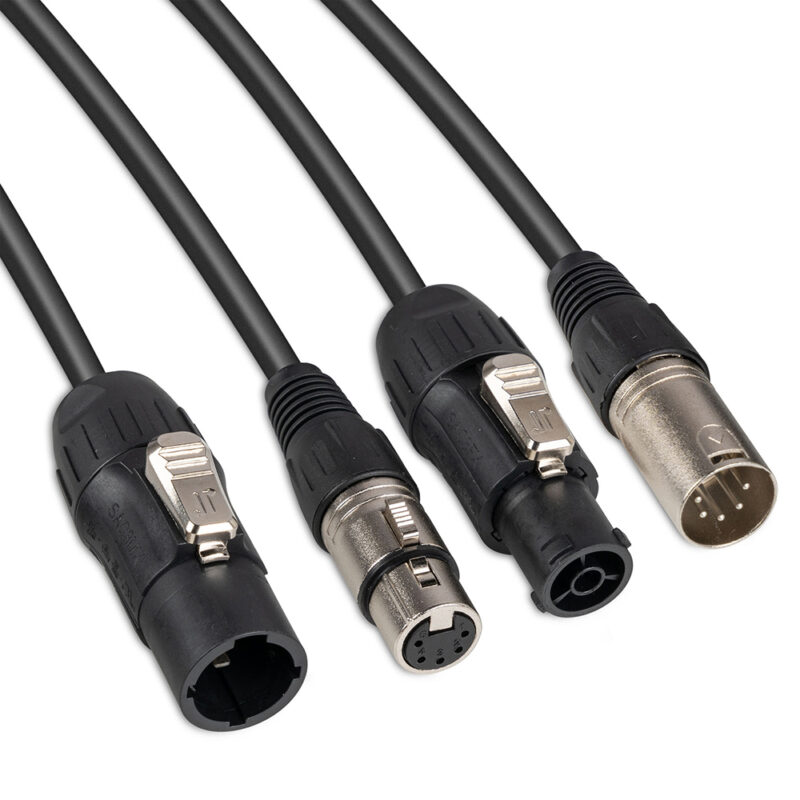

0.5 m DMX Cable with Combined Power and Signal
The PD Connex CX13-0.50 is made for linking compatible lighting fixtures over short distances, pairing Powerconnector TR power with 5-pin XLR DMX control inside one flexible black cable.
Technical Specifications
| Cable type | DMX lighting-control combi cable |
| Characteristic impedance | 120 ohm (DMX cable) |
| Cable length | 0.5m |
| Colour | Black |
| IP Rating | IP65 |
| Connector A | 5-pin XLR female/Powerconnector TR A |
| Connector B | 5-pin XLR male/Powerconnector TR B |
| Conductor size | 8×0.2mm (DMX cable) |
| Shielding | 64×0.08mm braided shield (DMX cable) |
| Outer jacket material | PVC |
| Cable outer diameter | 10.8mm |
| Connector material | Metal/Plastic |
| Cable flexibility | Flexible |
| Suitable for | DMX controllers, lighting fixtures, splitters and interfaces |
| Use environment | Outdoor, Touring, Venue |
| Warranty | 2 years |
Ideal For
- Short links between intelligent fixtures in a daisy-chain layout
- Stage crews aiming to reduce separate power and signal leads
- AV installers working with compatible DMX lighting fixtures
- Venue lighting bars, truss runs and temporary event structures
- DMX controllers, splitters and interfaces using 5-pin connections
Compatibility & Useful Information
Use this 5 Pin DMX Cable where the lighting fixture, splitter or interface requires 5-pin DMX and the power side matches Powerconnector TR A to TR B. The 0.5m length is useful for nearby units, keeping excess cable to a minimum. As a DMX power cable, it simplifies fixture-to-fixture wiring by combining two essential connections into one run. It is also a suitable DMX and power cable for touring and venue rigs that need IP65-rated fittings. For buyers searching for a short PowerCon DMX cable or a dedicated DMX cable for lighting, the 120 ohm DMX impedance and braided shielding are key technical details.
