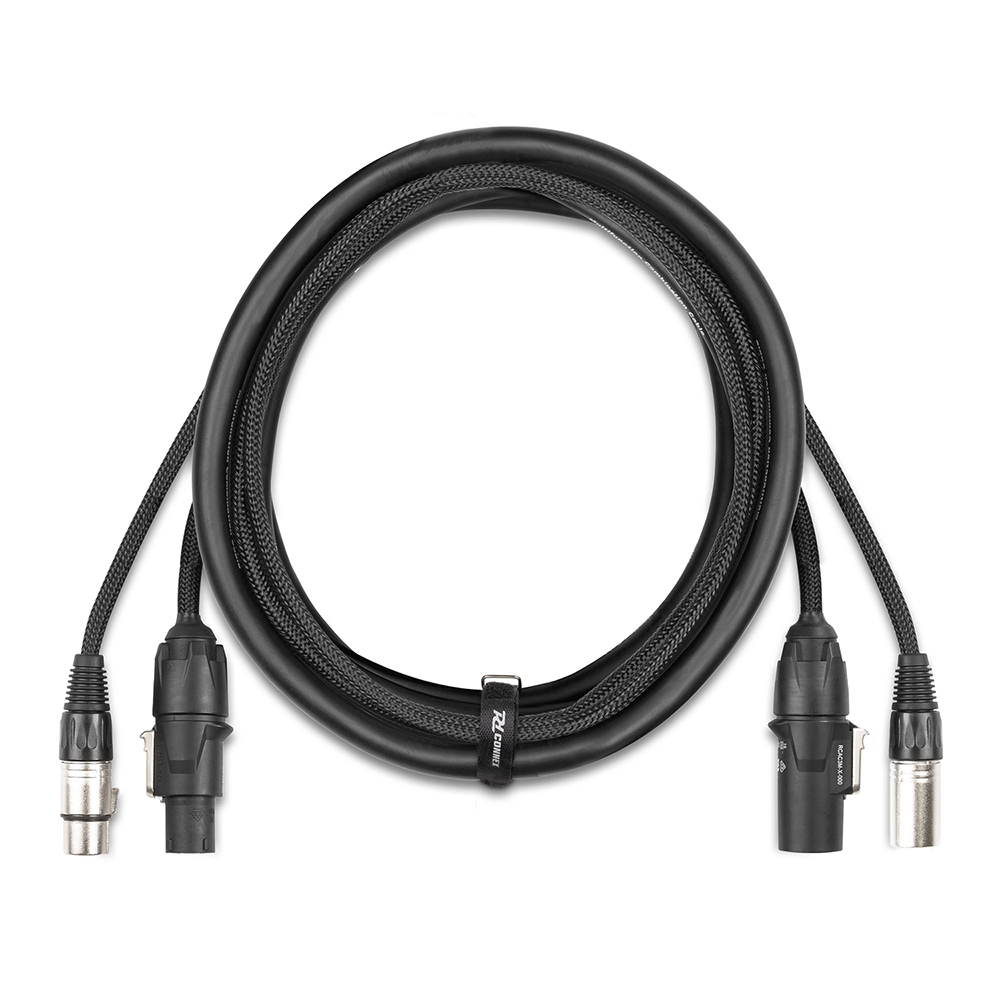

Outdoor DMX cable with Powerconnector TR
The PD Connex CX13-2 is designed for lighting technicians who need power and 5-pin DMX in one 2m connection, with IP65-rated Powerconnector TR and XLR fittings for compatible fixtures.
Technical Specifications
| Cable type | DMX lighting-control combi cable |
| Characteristic impedance | 120 ohm (DMX cable) |
| Cable length | 2m |
| Colour | Black |
| IP Rating | IP65 |

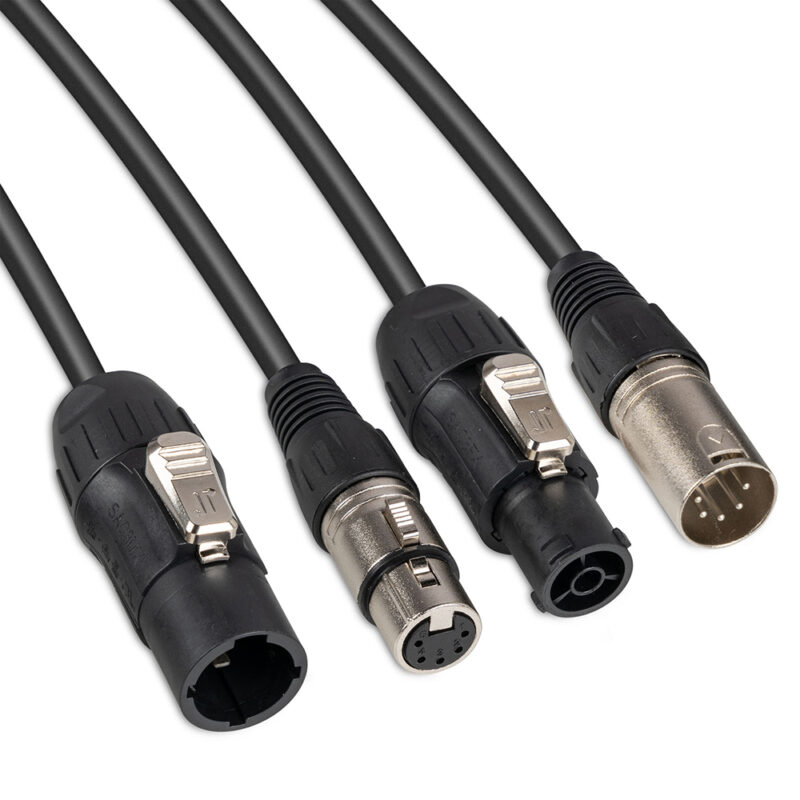

| Connector A | 5-pin XLR female/Powerconnector TR A |
| Connector B | 5-pin XLR male/Powerconnector TR B |
| Conductor size | 8×0.2mm (DMX cable) |
| Shielding | 64×0.08mm braided shielding (DMX cable) |
| Outer jacket material | PVC/PTFE braid |
| Cable outer diameter | 10.8mm |
| Connector material | Metal/Plastic |
| Cable flexibility | Standard |
| Suitable for | DMX controllers, lighting fixtures, splitters, interfaces and terminators |
| Use environment | Outdoor |
| Warranty | 2 years |
Ideal For
- DMX controllers feeding compatible lighting fixture chains
- Splitters, interfaces and terminators in 5-pin DMX systems
- Concert and touring productions with repeated setup demands
- Stage crews reducing loose power and signal cable clutter
- Temporary and permanent lighting installations outdoors
Compatibility & Useful Information
This 5 Pin DMX Cable is best chosen when the lighting fixture requires both 5-pin DMX signal and Powerconnector TR power on the same link. The 2m length suits nearby fixtures rather than long cable routes, which is useful on truss, floor packages and compact stage layouts. As a DMX power cable, it supports organised daisy-chaining while keeping power and control clearly paired. The DMX and power cable construction includes 64×0.08mm braided shielding for the DMX section and a 3x 1.5mm² power cable rated at 16A max. For compatible rigs, this PowerCon DMX cable is a tidy, practical DMX cable for lighting.
