2x PD Connex CX100-3 DMX Cables with 3 Metre Length for 3-Pin Lighting Control

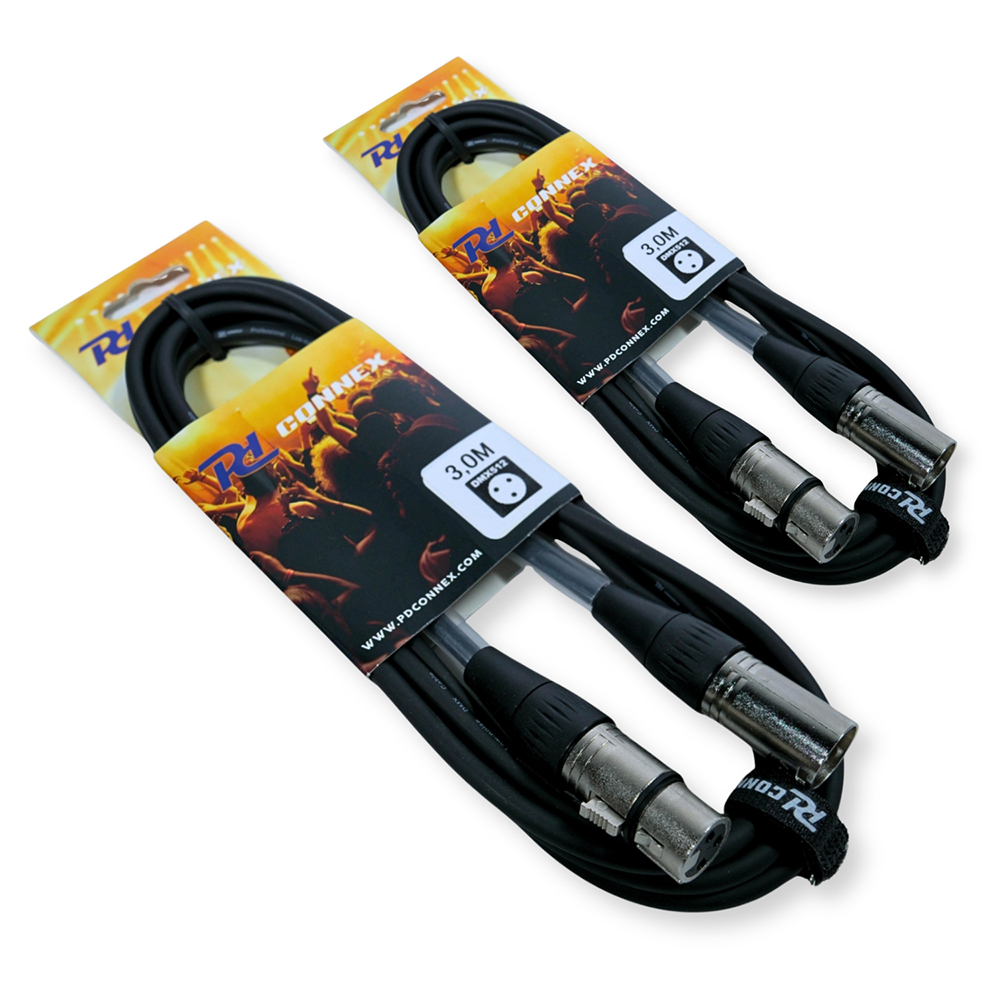

The PD Connex CX100-3 twin pack gives you two matching 3m DMX control cables. Each lead is fitted with a 3-pin XLR male connector at one end and a 3-pin XLR female connector at the other for compatible lighting setups.
Technical Specifications
| Cable type | DMX lighting-control cable |
| Characteristic impedance | 120 ohm |
| Cable length | 3m |
| Colour | Black |
| IP Rating | N/A |
| Connector A | 3-pin XLR male |
| Connector B | 3-pin XLR female |
| Conductor size | 28×0.1mm |
| Shielding | 60×0.1mm |
| Outer jacket material | Flexible PVC |
| Cable outer diameter | 6mm |
| Connector material | Metal |
| Cable flexibility | Flexible |
| Suitable for | DMX controllers, lighting fixtures, splitters, interfaces and terminators |
| Use environment | Indoor stage, Venue |
| Warranty | 2 years |
Ideal For
- Building short DMX links between adjacent stage fixtures
- Controller-to-fixture connections in indoor lighting rigs
- LED PAR can, moving head, wash light and effects setups
- Venue, nightclub and theatre lighting-control systems
- AV installers needing matched 3m DMX patch cables
Compatibility & Useful Information
This is a 3 pin DMX cable pack for equipment with 3-pin XLR DMX sockets. It is suitable where a 120 ohm DMX lighting cable is required between controllers, fixtures, splitters, interfaces or terminators. If you need XLR for DMX rather than microphone audio cabling, these two 3m black leads provide a practical length for many indoor stage and venue connections, without using excess DMX wire in compact fixture runs.
