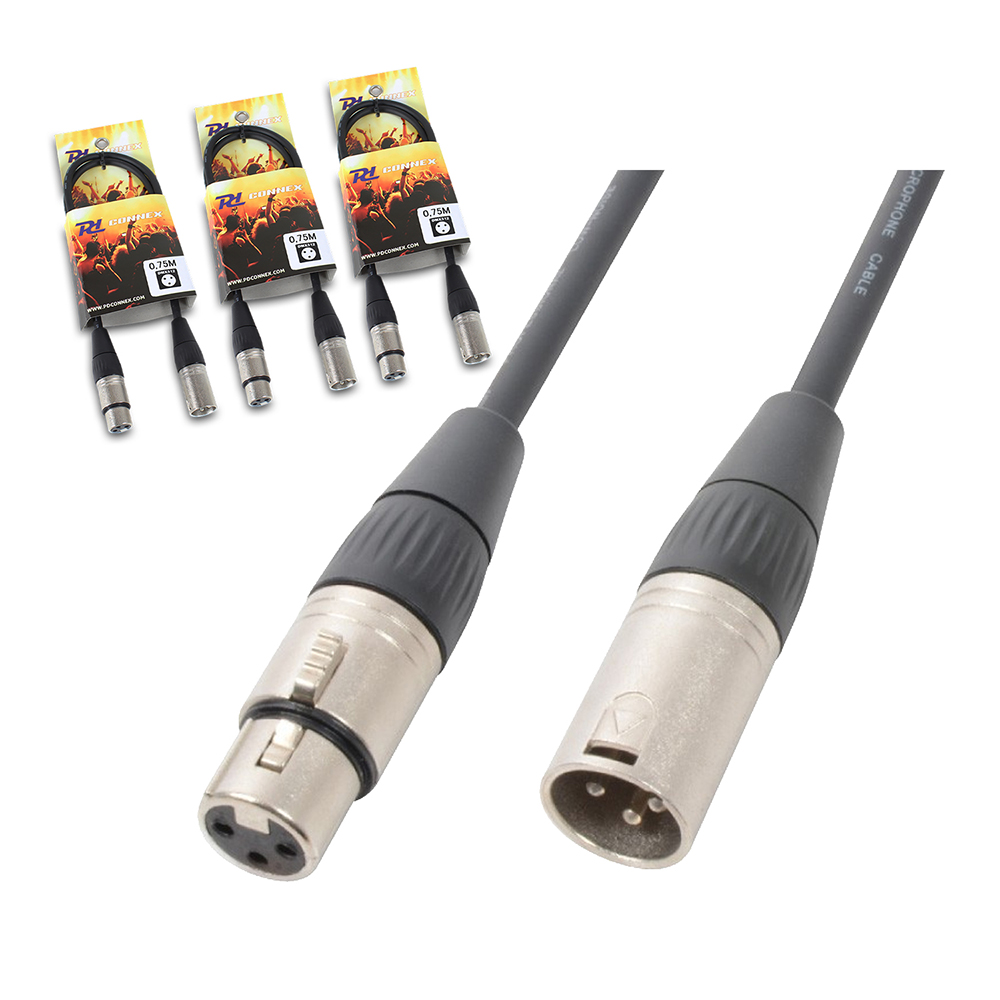

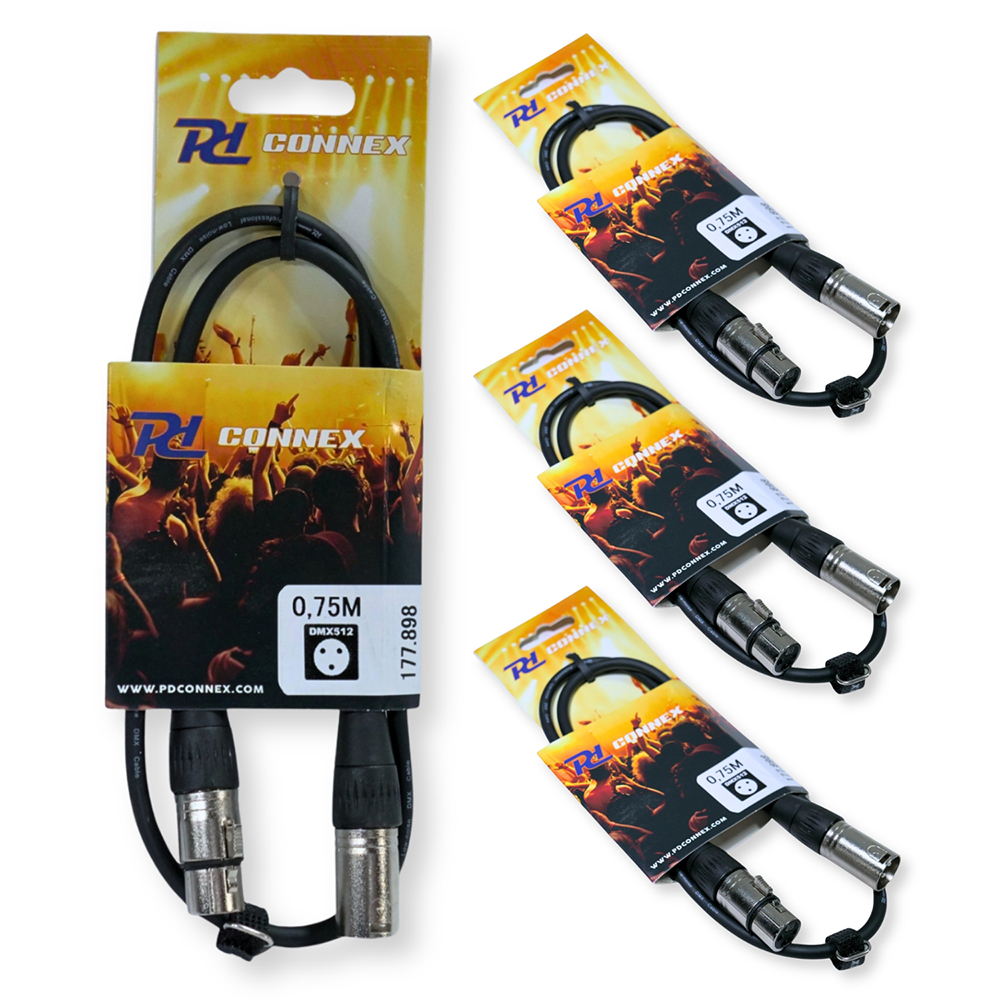

PD Connex CX100-0.7 0.75m DMX Cable 4-Pack with 3-Pin XLR Connectors
A set of four short 3-pin DMX leads for linking compatible lighting controllers and fixtures. Each black 0.75m cable is suited to neat patching between nearby units in indoor stage and venue installations.
Technical Specifications
| Cable type | DMX lighting-control cable |
| Characteristic impedance | 120 ohm |
| Cable length | 0.75m |
| Colour | Black |
| IP Rating | N/A |
| Connector A | 3-pin XLR male |
| Connector B | 3-pin XLR female |
| Conductor size | 28×0.1mm |
| Shielding | 60×0.1mm |
| Outer jacket material | Flexible PVC |
| Cable outer diameter | 6mm |
| Connector material | Metal |
| Cable flexibility | Flexible |
| Suitable for | DMX controllers, lighting fixtures, splitters, interfaces and terminators |
| Use environment | Indoor stage, Venue |
| Warranty | 2 years |
Ideal For
- Fixture-to-fixture DMX patching over short distances
- Connecting moving heads, LED PAR cans and wash lights
- Lighting racks, small truss runs and compact venue rigs
- Permanent indoor lighting installations using 3-pin DMX
- Spare cable sets for lighting technicians and rental stock
Compatibility & Useful Information
This pack is intended for equipment using 3-pin DMX XLR connections, with each lead wired as male to female. The 0.75m length makes this DMX lighting cable useful where fixtures sit close together, helping avoid excess cable on short runs. Select this DMX wire set when a 120 ohm cable is required for lighting control rather than choosing standard audio XLR leads. It is a practical XLR for DMX package for compatible 3-pin DMX controllers, fixtures, splitters, interfaces and terminators.
