2x PD Connex CX100-6 DMX Cable Set with 6-Metre Length

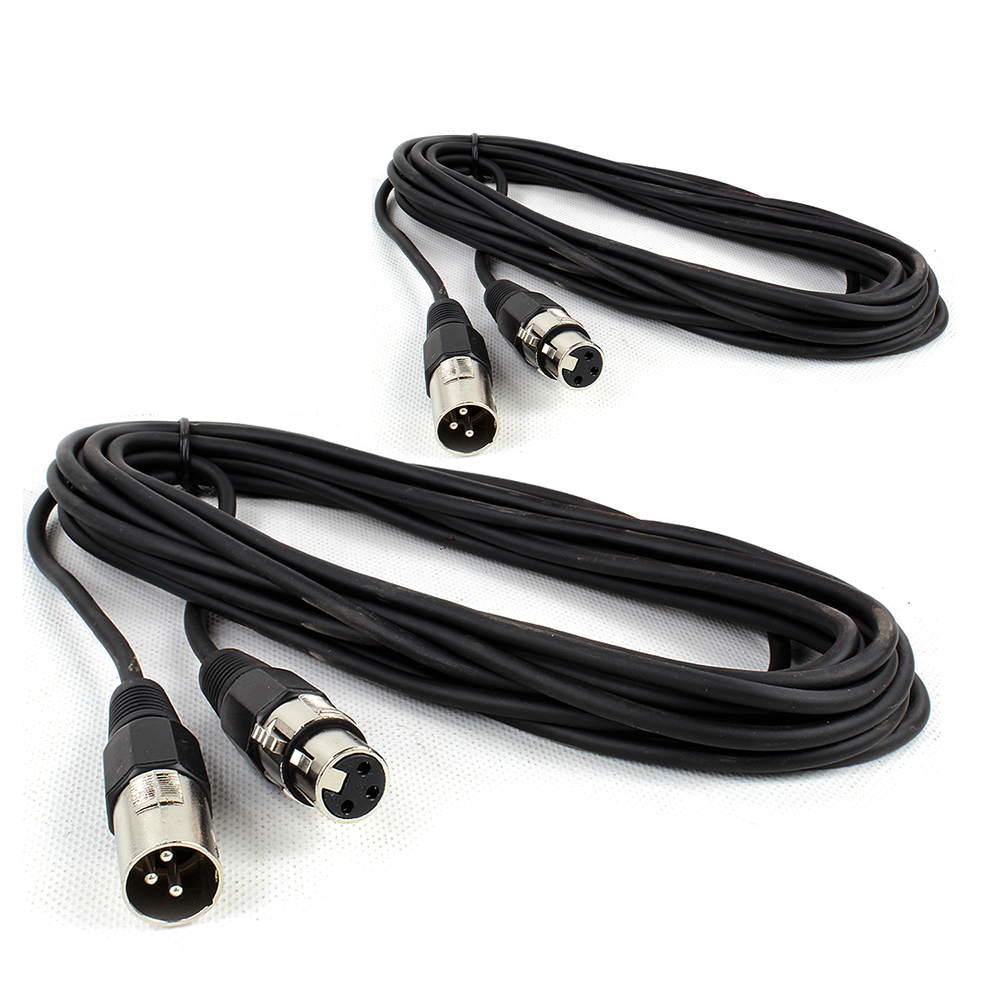

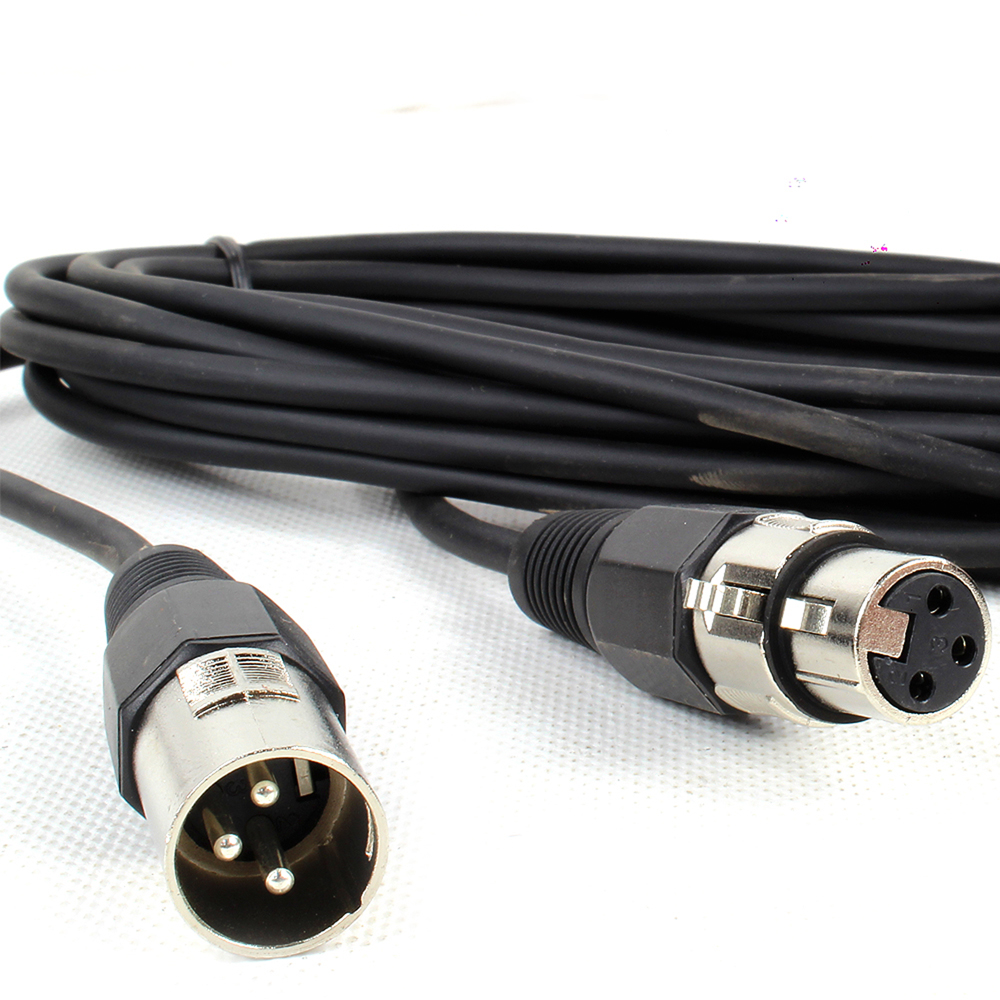

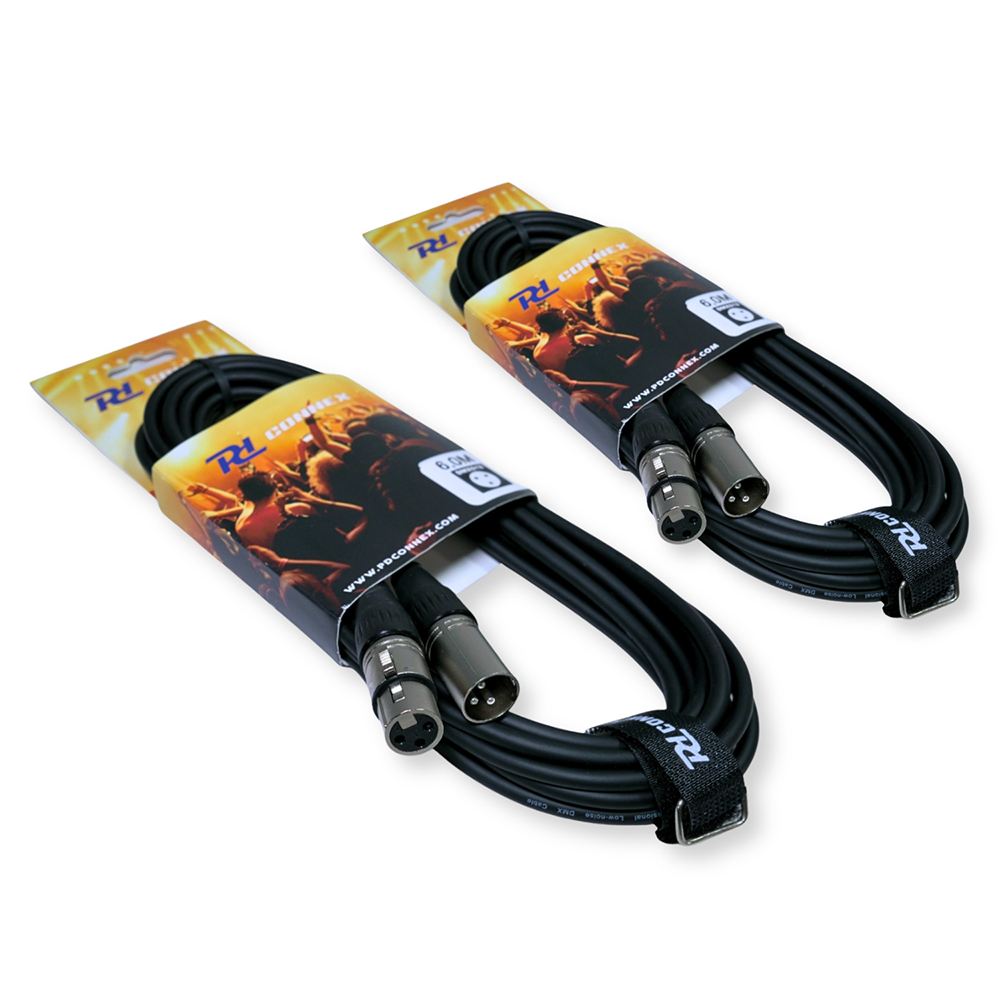

Supplied as a pair, these 6m PD Connex CX100-6 cables provide 3-pin XLR male to female connections for DMX lighting-control setups, making them suitable for controller-to-fixture and fixture-to-fixture signal runs.
Technical Specifications
| Cable type | DMX lighting-control cable |
| Characteristic impedance | 120 ohm |
| Cable length | 6m |
| Colour | Black |
| IP Rating | N/A |
| Connector A | 3-pin XLR male |
| Connector B | 3-pin XLR female |
| Conductor size | 28×0.1mm |
| Shielding | 60×0.1mm |
| Outer jacket material | Flexible PVC |
| Cable outer diameter | 6mm |
| Connector material | Metal |
| Cable flexibility | Flexible |
| Suitable for | DMX controllers, lighting fixtures, splitters, interfaces and terminators |
| Use environment | Indoor stage, Venue |
| Warranty | 2 years |
Ideal For
- DMX controller outputs to compatible lighting fixtures
- Fixture chains using 3-pin XLR DMX input and output sockets
- Indoor stage, venue and theatre lighting-control systems
- Event lighting setups with moving heads and effect lighting
- AV installers working with 6m DMX cable runs
Compatibility & Useful Information
Use these cables when your lighting equipment requires a 3-pin XLR male-to-female DMX lighting cable with 120 ohm impedance. Although the connectors look like audio XLR fittings, this DMX wire is specified for DMX lighting control. It is appropriate for controllers, fixtures, splitters, interfaces and terminators that accept DMX XLR connections. If you need XLR for DMX rather than a microphone lead, this twin pack provides two matching 6m cables for 3-pin DMX setups in indoor stage and venue environments.
