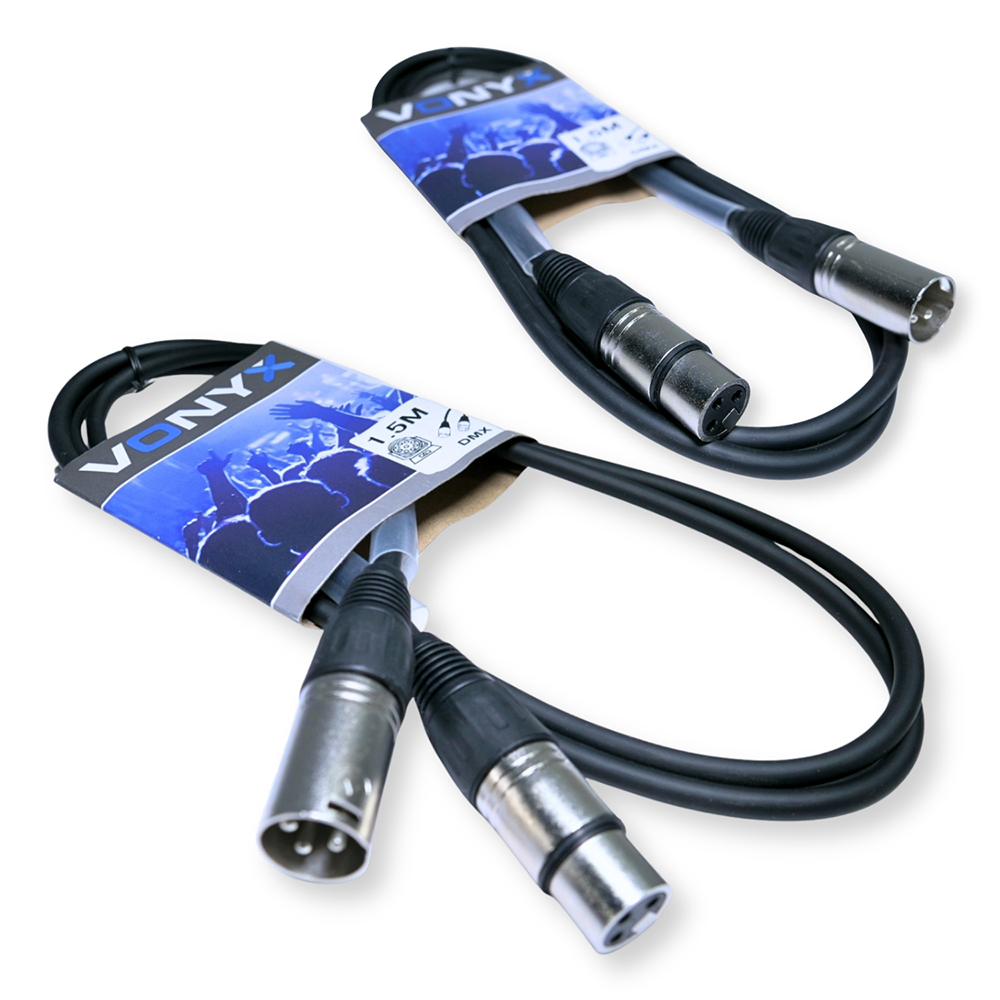

2x Vonyx CX350-1 1.5m Digital Audio Cable and DMX XLR Leads
This package provides two matching 1.5m 110 ohm cables for AES/EBU digital audio links and DMX lighting control, each fitted with a 3-pin XLR male connector and a 3-pin XLR female connector.
Technical Specifications
| Cable type | DMX lighting-control cable |
| Characteristic impedance | 110 ohm |
| Cable length | 1.5m |
| Colour | Black |
| IP Rating | N/A |
| Connector A | 3-pin XLR male |
| Connector B | 3-pin XLR female |
| Conductor size | 18×0.12mm |
| Shielding | 64×0.12mm |
| Outer jacket material | PVC |
| Cable outer diameter | 6mm |
| Connector material | Metal |
| Cable flexibility | Flexible |
| Suitable for | DMX controllers, lighting fixtures, splitters, interfaces and terminators |
| Use environment | Indoor stage, Venue |
| Warranty | 2 years |
Ideal For
- AES/EBU patching where a short 110 ohm XLR cable is needed.
- DMX lighting-control links from controllers to nearby fixtures.
- Connecting compatible DMX splitters, interfaces and terminators.
- Theatre, venue and indoor stage lighting signal runs.
- Event and fixed AV systems using 3-pin XLR DMX connections.
Compatibility and Useful Information
These cables are intended for systems that use 3-pin XLR connections and require 110 ohm cabling. Select them as an AES cable or AES EBU cable for supported digital audio equipment, or as a digital output cable where a matching AES/EBU connection is specified. They also work as a DMX cable and 3 pin DMX cable for compatible controllers, fixtures, splitters, interfaces and terminators in indoor venue use.
